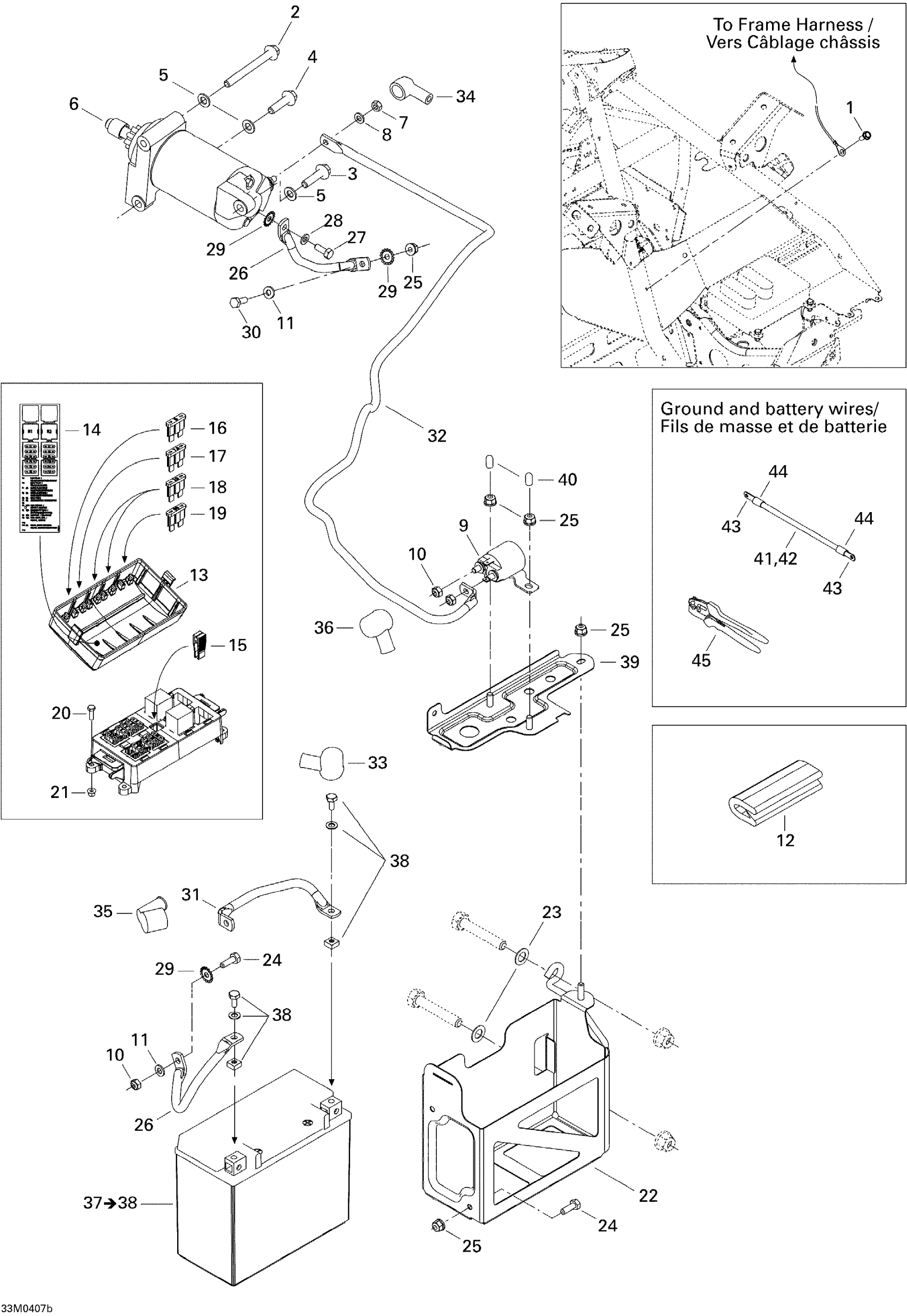

Ski-Doo GSX 600 HO SDI, 2004 Battery, Starter, Fuse Box Diagram

#

Description
Price

1

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.80

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

5

Flat Washer With Teflon 8 mm

250200008

$3.12

6

Electric Starter Ass'y

515176133

$319.49

7

Elastic Stop Nut M6

232561414

$1.55

8

Flat Washer 6 mm

234061410

$1.04

9

Starter Relay

515176011

$51.97

10

Elastic Stop Nut M6

232561414

$1.55

11

Flat Washer 6 mm

234061410

$1.04

12

Was 271000110 Protection Trim

219704353

$15.03

13

COVER - Call your local BRP dealership

515176066

Unavailable

14

Fuse Decal

516002141

Unavailable

15

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

16

Fuse, 5 Amperes | CE

278000344

$3.22

17

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

18

Fuse, 20 Amperes

409003900

$3.22

19

Fuse, 30 Amperes

410917200

$3.22

20

Hex. Screw M5 X 20

207152044

$0.88

21

Hex. Flange Elastic Nut M5

233251414

$1.66

22

Battery Support, Black

515176017

Unavailable

23

Washer

503175800

$3.26

24

Hex. Screw M6 X 18

207161844

$0.62

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

28

Flat Washer 6 mm

234061410

$1.04

29

Lock Washer Serrated M6

250200041

$0.92

30

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Protection Cap

570151000

$18.43

34

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

35

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

36

Protector Cap | XT

515175919

$16.89

37

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$126.07

38

Battery Bolt Kit

250000282

$2.95

39

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

40

Cap

515176141

$2.91

41

Ground Cable Battery, no 6, meter)

278001680

Unavailable

42

Cable Battery, no 6, meter)

278001690

Unavailable

43

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

44

Was 710000483 Heat Shrink Tubing

219704447

$74.58

45

Crimp Plier

529035730

Unavailable
