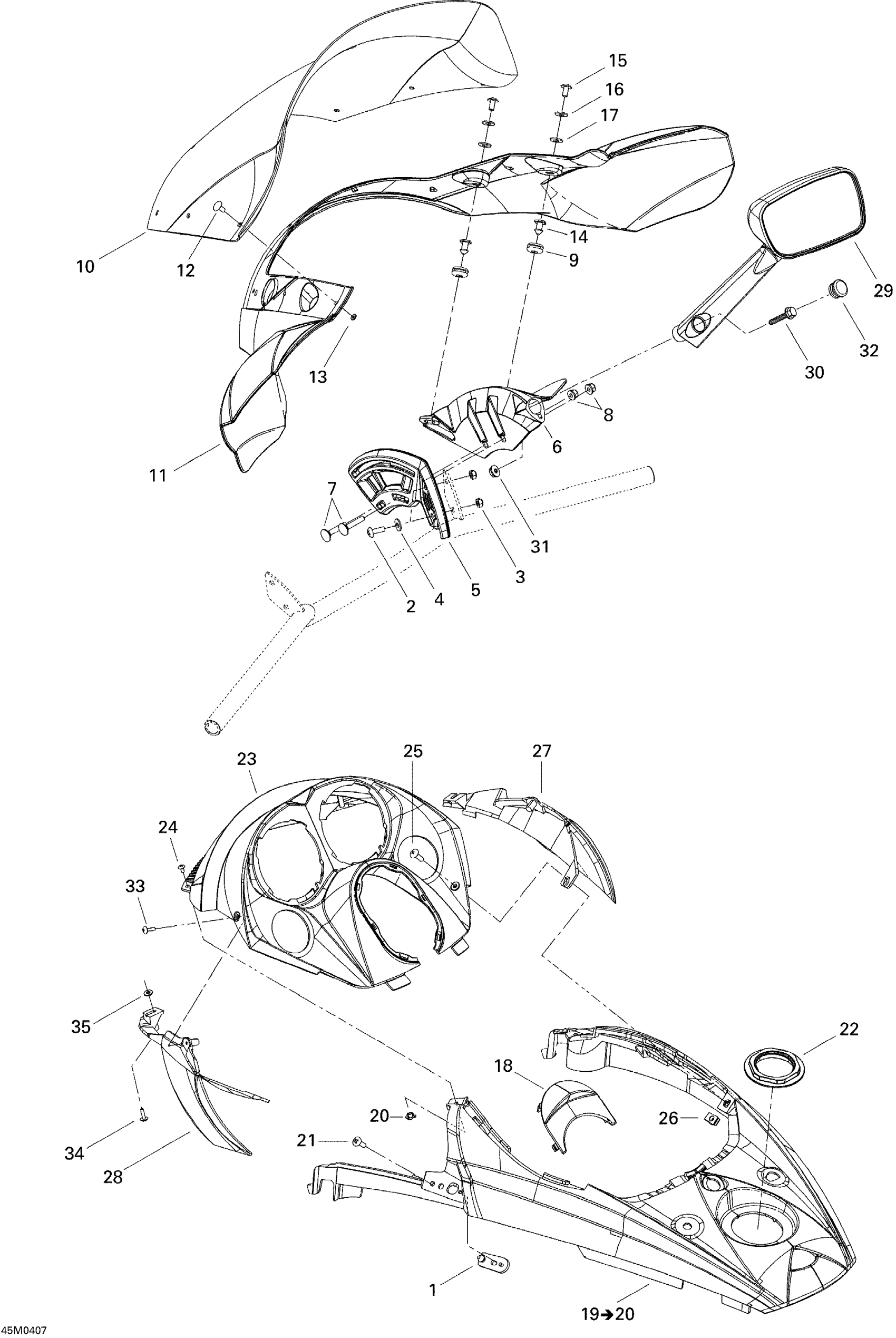

Ski-Doo GSX 600 HO SDI, 2004 09- Windshield And Console Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Torx Truss Screw M6 X 16

250000721

$1.69

3

Hex. Nut M6

250000135

$0.51

4

Flat Washer 6 mm

234062100

$1.26

5

RH Fixing Plate

517303076

Unavailable

LH Fixing Plate

517303078

Unavailable

6

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303077

Unavailable

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303079

Unavailable

7

Carriage Bolt M6 X 35

207763554

$2.11

8

Hex. Flange Elastic Nut M6

233261494

$1.58

9

Grommet

517302841

$7.89

10

WINDSHIELD - Call your local BRP dealership

517303094

Unavailable

11

Air Deflector

517302816

$99.99

12

Windshield Dart

517303070

$1.09

13

Push Nut

250100034

$1.29

14

Knob

517303439

$4.55

15

Torx Screw M5 X 14

250000742

$1.47

16

Washer M5

250200025

$0.74

17

Rubber Washer 5 mm

250200024

$2.19

18

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

19

CENTER CONSOLE, SILVER B-243 - Call your local BRP dealership | Includes 11 to 12, LTD

517303097

Unavailable

CENTER CONSOLE, BLACK B-160 - Call your local BRP dealership | Includes 11 to 12, LTD

517303098

Unavailable

Deep Black, Center Console | Black, SDI

517303101

Unavailable

CENTER CONSOLE - Call your local BRP dealership | Includes 13 to 14, Sport

517303102

Unavailable

20

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

21

Torx Screw M6 X 20

250000722

$1.68

22

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

23

Support

517302796

Unavailable

Support | GSX 800 HO

517302973

Unavailable

24

Torx Screw M4 X 8

250000127

$1.15

25

Torx Screw M5 X 20

250000724

$1.69

26

Panel Nut M5 X 0.8

250000958

$4.23

27

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

Unavailable

28

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

29

RH MIRROR - Call your local BRP dealership

517302449

Unavailable

LH MIRROR - Call your local BRP dealership

517302450

Unavailable

30

Hex. Flange Screw M6 X 40

207664044

$2.22

31

Hex. Flange Elastic Nut M6

233261494

$1.58

32

Cap

517302716

$4.69

33

Phillips Screw K40 X 16

250000723

$0.98

34

Screw M4 X 16

250000725

$3.49

35

Flat Washer 4 mm, Stainless

234042600

$1.15
