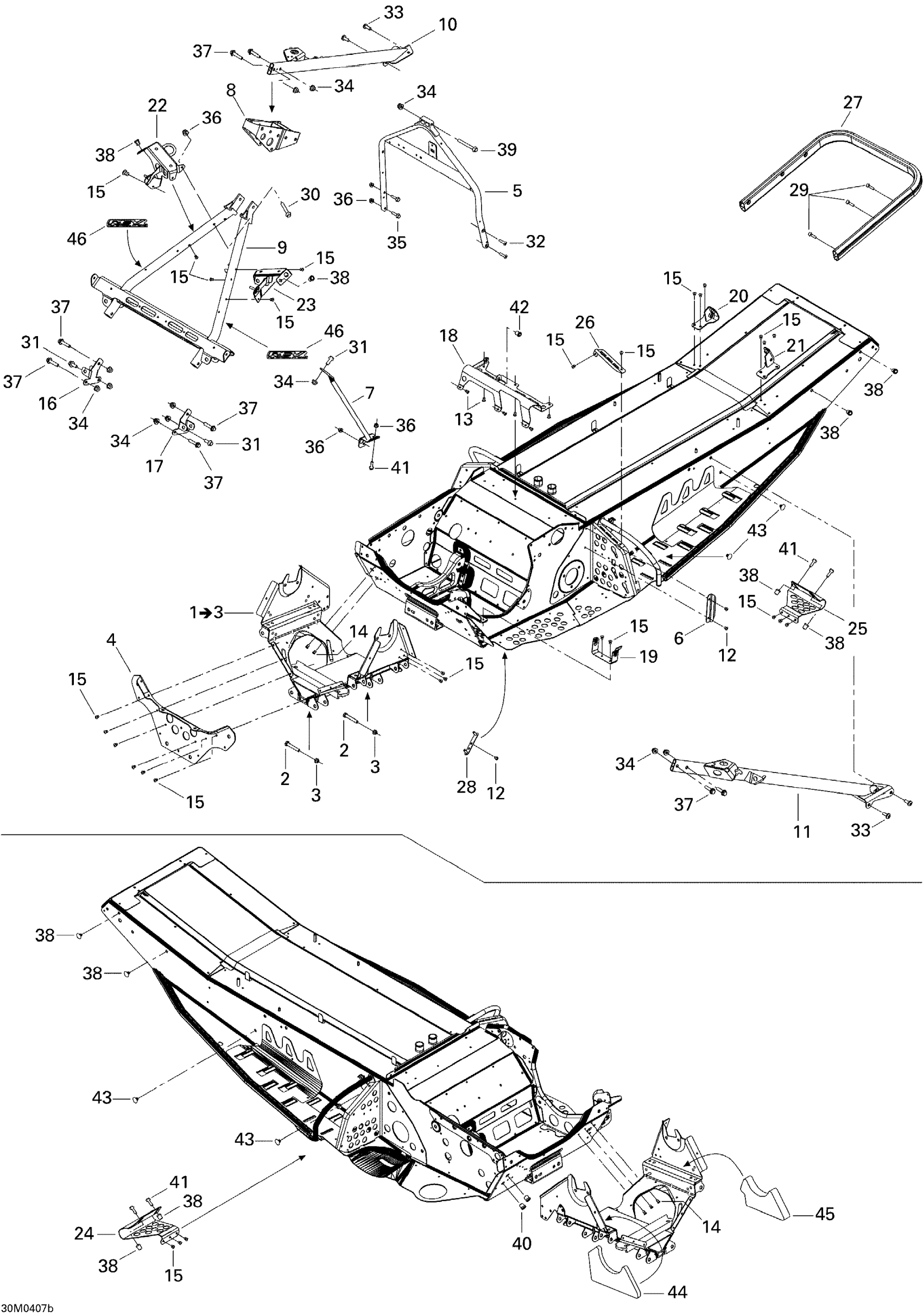

Ski-Doo GSX 600 HO SDI, 2004 09- Frame - Front And Rear Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 50

207085044

$1.48

3

Hex. Elastic Stop Nut M8

232581414

$0.56

4

Front Plate

518322166

Unavailable

5

HANDLE SUPPORT - Call your local BRP dealership

518323979

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

8

Bracket Block

518323853

Unavailable

9

Upper Cross Member

518324009

Unavailable

10

RH Member

518323352

Unavailable

11

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

12

Pop Rivet 3/16"

390402200

$0.35

13

Pop Rivet 3/16"

390402400

$0.35

14

Avex Rivet

390909100

$0.30

15

Avex Rivet

390909200

$0.30

16

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

17

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

18

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

19

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

20

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

21

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

22

RH Console Support

518323535

Unavailable

23

LH Console Support

518323536

Unavailable

24

RH Toe Hold

518323377

Unavailable

25

LH Toe Hold

518323378

Unavailable

26

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

27

Rear Bumper

518323788

Unavailable

28

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

29

Hex. Flange Screw M8 X 20

207682044

$1.15

30

Hex. Flange Screw M6 X 35

207063544

$1.37

31

Hex. Flange Screw M8 X 20

207682044

$1.15

32

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

33

Pan Head Torx Screw M8 X 12

250000887

$1.90

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

Hex. Flange Screw M6 X 25

207662544

$0.64

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hex. Flange Screw M8 X 35

207683544

$1.69

38

Insert

293450275

$12.99

39

Hex. Flange Screw M8 X 70

207687044

$7.41

40

Insert

293450166

$4.29

41

Hex. Flange Screw M6 X 20

207662044

$2.00

42

Threaded Insert M6 X 1.0

250100242

Unavailable

43

Panel Fastener

518321954

$7.69

44

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

45

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

46

Frame Decal

516001725

Unavailable
