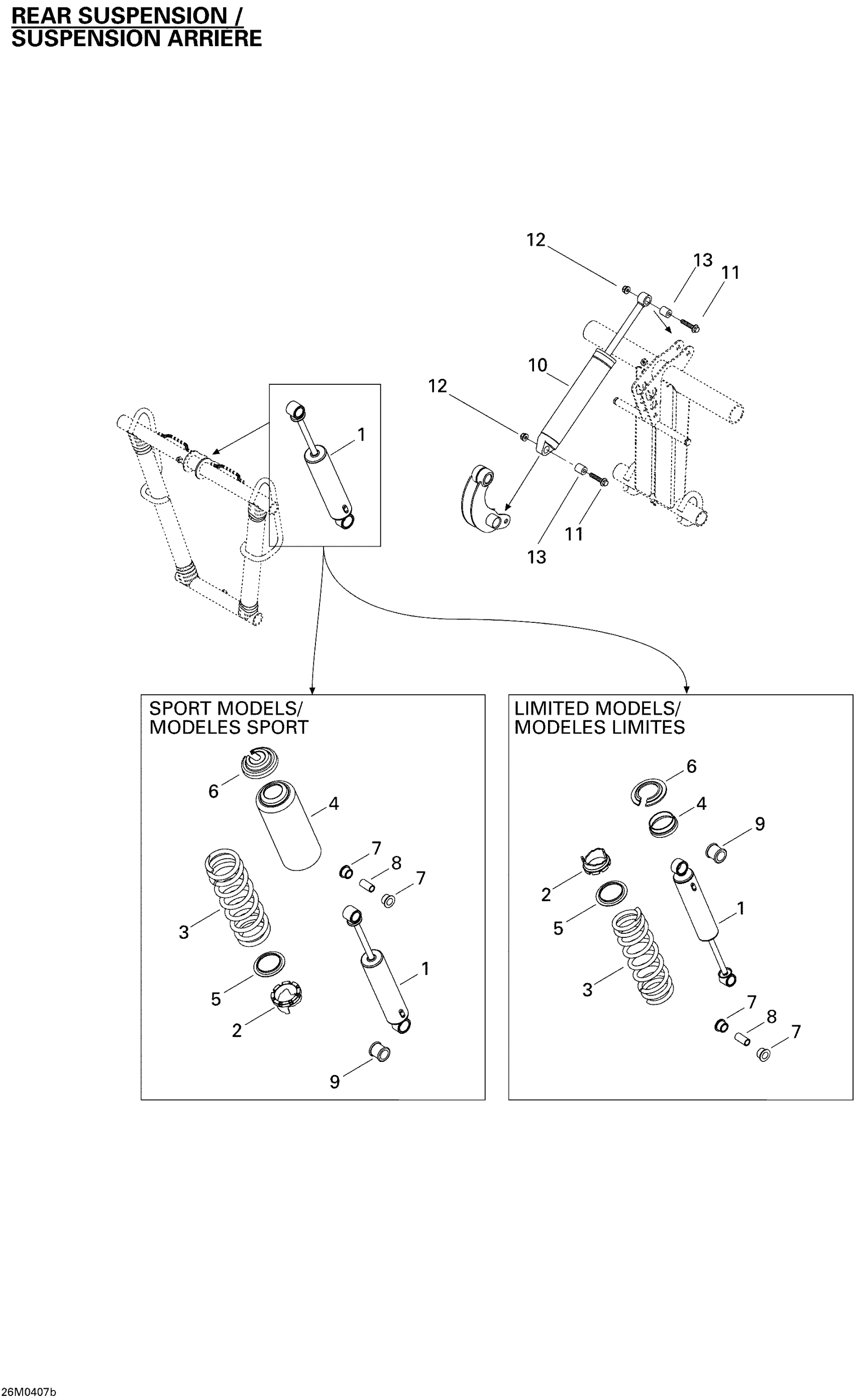

Ski-Doo GSX 600 HO SDI, 2004 Rear Shocks Diagram

#

Description
Price

1

Center Shock | GSX SS 500/GSX 600 HO

503190350

Unavailable

Center Shock | GTX LTD

503190315

Unavailable

2

Adjustment Cam

505073625

$12.99

3

Black, Spring

503189686

$67.99

4

Protector

503193663

$37.99

PROTECTOR - Call your local BRP dealership

503190252

Unavailable

5

Spring Guide

503191872

$2.29

6

Spring Stopper

706200881

$12.99

Spring Stopper

503189912

$10.99

7

Urethane Bushing

503189117

$8.19

8

Bushing | Includes 240d to 240d1

503189282

$4.34

9

Bushing

503189271

$13.99

10

Rear Shock | Sport This part replaces 503190303.

503191021

Unavailable

Rear Shock | GSX SS 500/GSX 600 HO

503190351

Unavailable

11

Hex. Flange Screw M8 X 40

207684044

$1.48

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Bushing

414936000

$13.99
