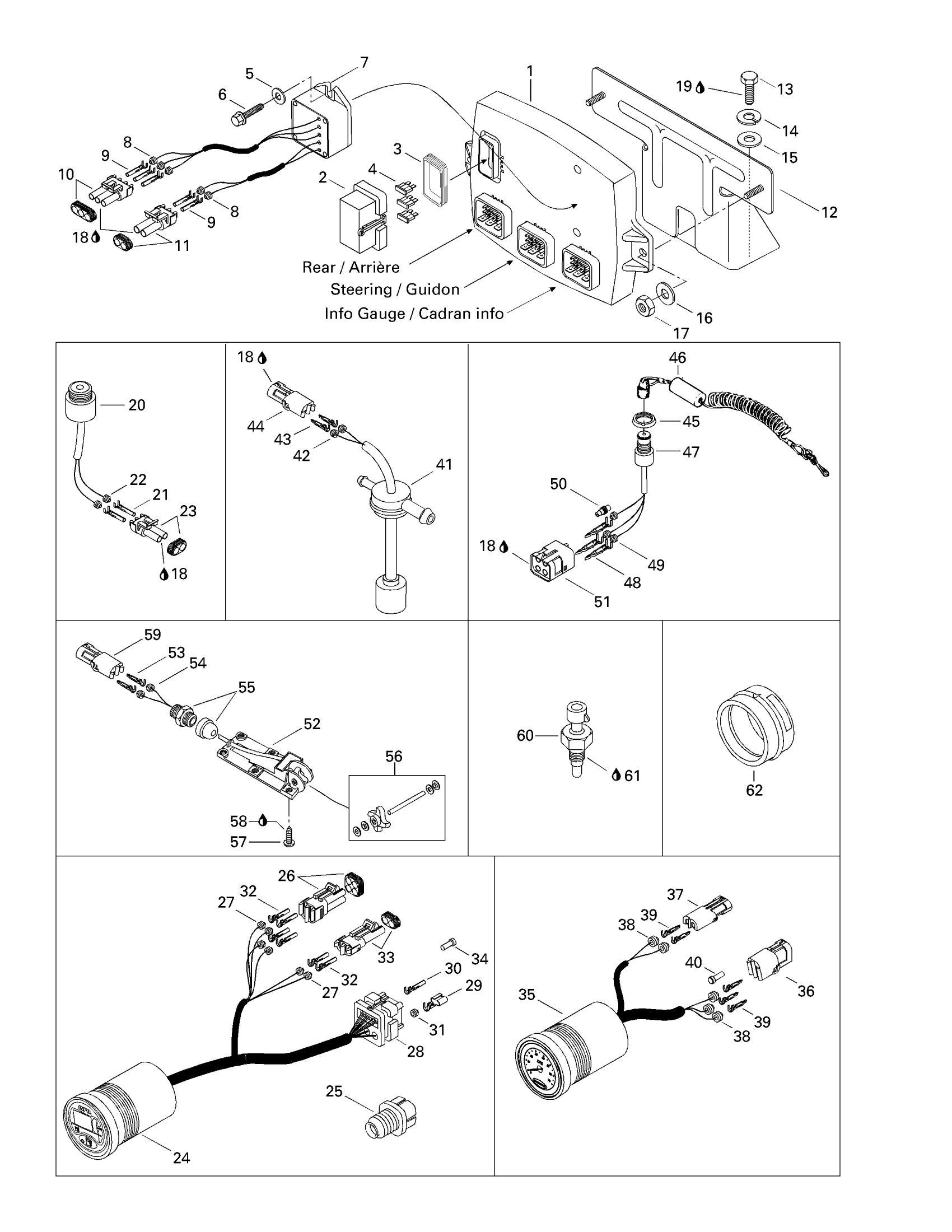

Sea-doo GSX, 5624, 1997 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 - 4.

278001031

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$2.72

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.22

5

Stainless Flat Washer M6

234061600

$0.25

6

HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership

211000106

Unavailable

7

Rectifier Ass'y | Includes 7 - 11.

278001073

Unavailable

8

Wire Seal

278000218

$3.48

9

Female Terminal

409007300

$0.36

10

Male Housing, 3 Circuits

278000273

$7.59

11

Male Connector, 2 Circuits

278000220

$11.02

12

Box Support Ass'y

278001131

Unavailable

13

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

14

Helical Lock Washer M5

234151601

$0.91

15

Flat Washer 5 mm, Stainless

234052600

$0.64

16

Flat Washer M6, Stainless

234062600

$0.64

17

Hex. Elastic Stop Nut M6

232561600

$0.92

18

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

19

Loctite 271, 10 ml

293800005

$20.77

20

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

21

Female Terminal

278000223

$2.55

22

Wire Seal

278000218

$3.48

23

Male Connector, 2 Circuits

278000220

$11.02

24

Info Gauge | Includes 24 - 34.

278000948

Unavailable

25

GROMMET - Call your local BRP dealership

293720042

Unavailable

26

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

27

Wire Seal

278001065

$6.03

28

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

29

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

30

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

31

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

32

Female Terminal

278000223

$2.55

33

Speedometer | Includes 17 - 22.

278000947

Unavailable

34

Wire Seal

278000216

$2.55

35

Speedometer | Includes 17 - 22.

278000947

Unavailable

36

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

37

Female Housing, 2 Circuits

278000217

$7.59

38

Wire Seal

278001065

$6.03

39

Male Terminal | XT Models

278000222

$2.55

40

Wire Seal

278000216

$2.55

41

Oil Level Sensor

278000478

Unavailable

42

Wire Seal

278000218

$3.48

43

Male Terminal | XT Models

278000222

$2.55

44

Female Housing, 2 Circuits

278000217

$7.59

45

Safety Nut (DESS Switch)

278002963

$2.72

46

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

47

Safety Switch | Includes 15 - 19.

278000977

Unavailable

48

Male Terminal | XT Models

278000222

$2.55

49

Wire Seal

278000218

$3.48

50

Wire Seal

278000216

$2.55

51

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

58

Loctite 243, 10 ml

293800060

$20.77

59

Female Housing, 2 Circuits

278000217

$7.59

60

Temperature Sensor

278000965

$57.82

61

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

62

Gauge Support

293720047

Unavailable
