Description

Price

1

Seat Ass'y (Indigo) | Includes 1 to 21

269000359

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Strap

269000370

Unavailable

3

Socket Screw M6 X 16

205461660

$7.48

4

Seat Cover with Foam

269000368

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Hex. Screw M6 X 16

207161660

$1.59

8

RH Corner Seat

269000365

Unavailable

8

LH Corner Seat

269000366

Unavailable

9

Base Keeper

291000174

$19.99

10

Was 293200017 Neoprene Seal

219704365

$149.99

11

Hex. Screw M6 X 35

207163560

$1.49

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

SPACER - Call your local BRP dealership

291000532

Unavailable

15

Latch Ass'y

269700109

$24.99

16

Loctite 243, 10 ml

293800060

$21.49

17

Lock Washer Helical M6

234161601

$1.15

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

Nut Welded, M6

293100003

$9.12

21

Staple

293730005

Unavailable

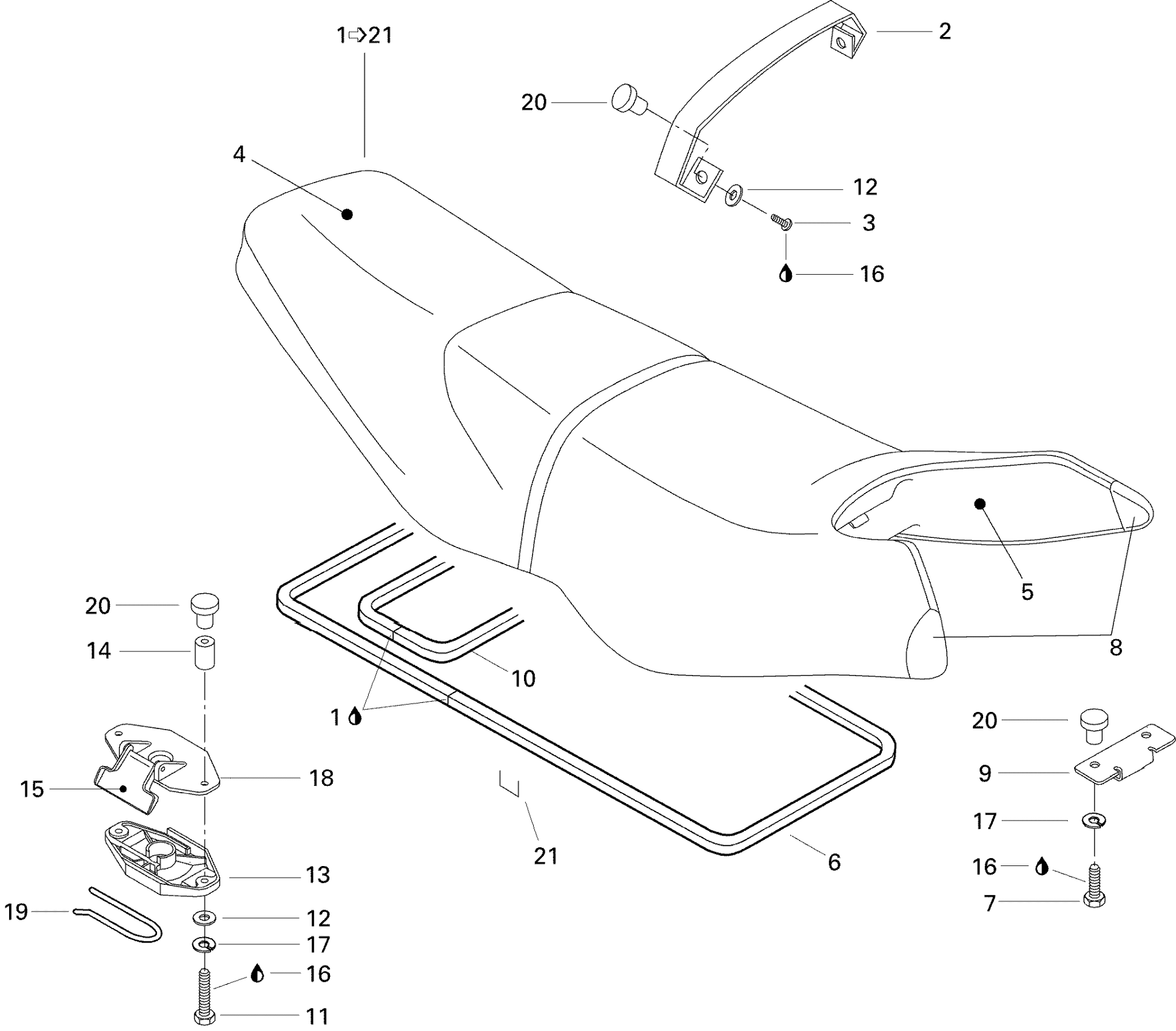

Sea-doo GSX, 5620, 1996 09- Seat Diagram

Seat Ass'y (Indigo) | Includes 1 to 21

Not Available As Spare Part - Friction Washer

Seat Strap

Socket Screw M6 X 16

Seat Cover with Foam

Not Available As Spare Part - Friction Washer

Was 293200017 Neoprene Seal

Hex. Screw M6 X 16

RH Corner Seat

LH Corner Seat

Base Keeper

Was 293200017 Neoprene Seal

Hex. Screw M6 X 35

Stainless Flat Washer M6

Latch Ass'y

SPACER - Call your local BRP dealership

Latch Ass'y

Loctite 243, 10 ml

Lock Washer Helical M6

Latch Ass'y

Latch Spring

Nut Welded, M6

Staple
