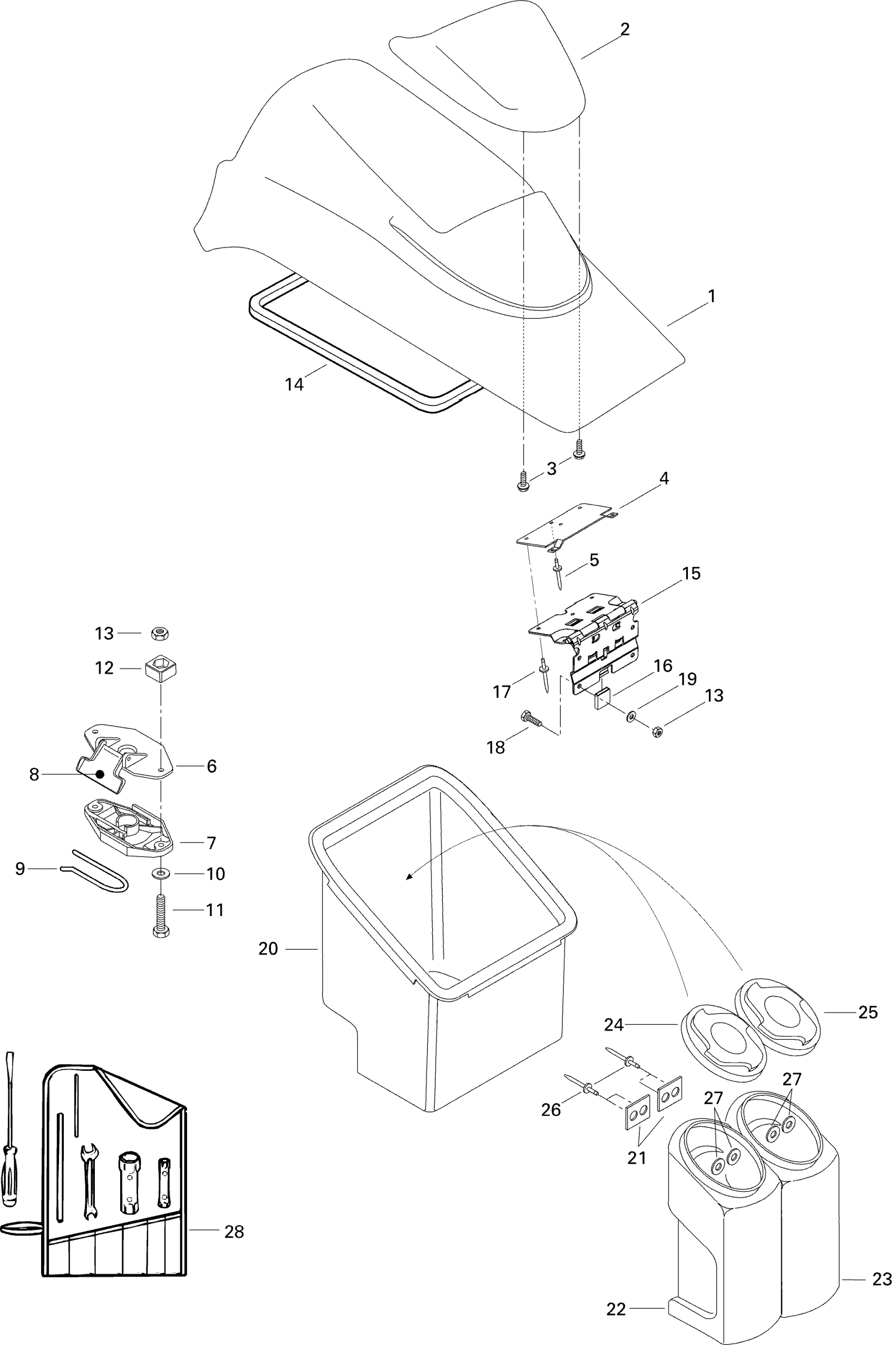

Sea-doo GSX, 5620, 1996 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover

295500368

Unavailable

2

Deflector

269500285

Unavailable

3

SCREW-SPECIAL - Call your local BRP dealership

211000073

Unavailable

4

Retainer Plate

269500280

Unavailable

5

Pop Rivet 3/16"

293150039

$1.49

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Ass'y

269700109

$24.99

9

Latch Spring

269700017

$9.19

10

Stainless Flat Washer M6

234061600

$0.33

11

Hex. Screw M6 X 30

207063060

$1.89

12

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Was 293200017 Neoprene Seal

219704365

$149.99

15

Hinge

269500276

Unavailable

16

Protector Cap

293830046

Unavailable

17

Pop Rivet 3/16"

293150039

$1.49

18

Hex. Forming Screw M6 X 20

207162060

$1.29

19

Flat Washer M6, Stainless

234062600

$0.77

20

Storage Tray

269500286

Unavailable

21

GASKET - Call your local BRP dealership

293250037

Unavailable

22

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

23

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

24

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

25

Storage Housing Cap

269500237

Unavailable

26

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

27

Flat Washer M3, Stainless

234032600

$0.55

28

Tool Kit

295000066

Unavailable
