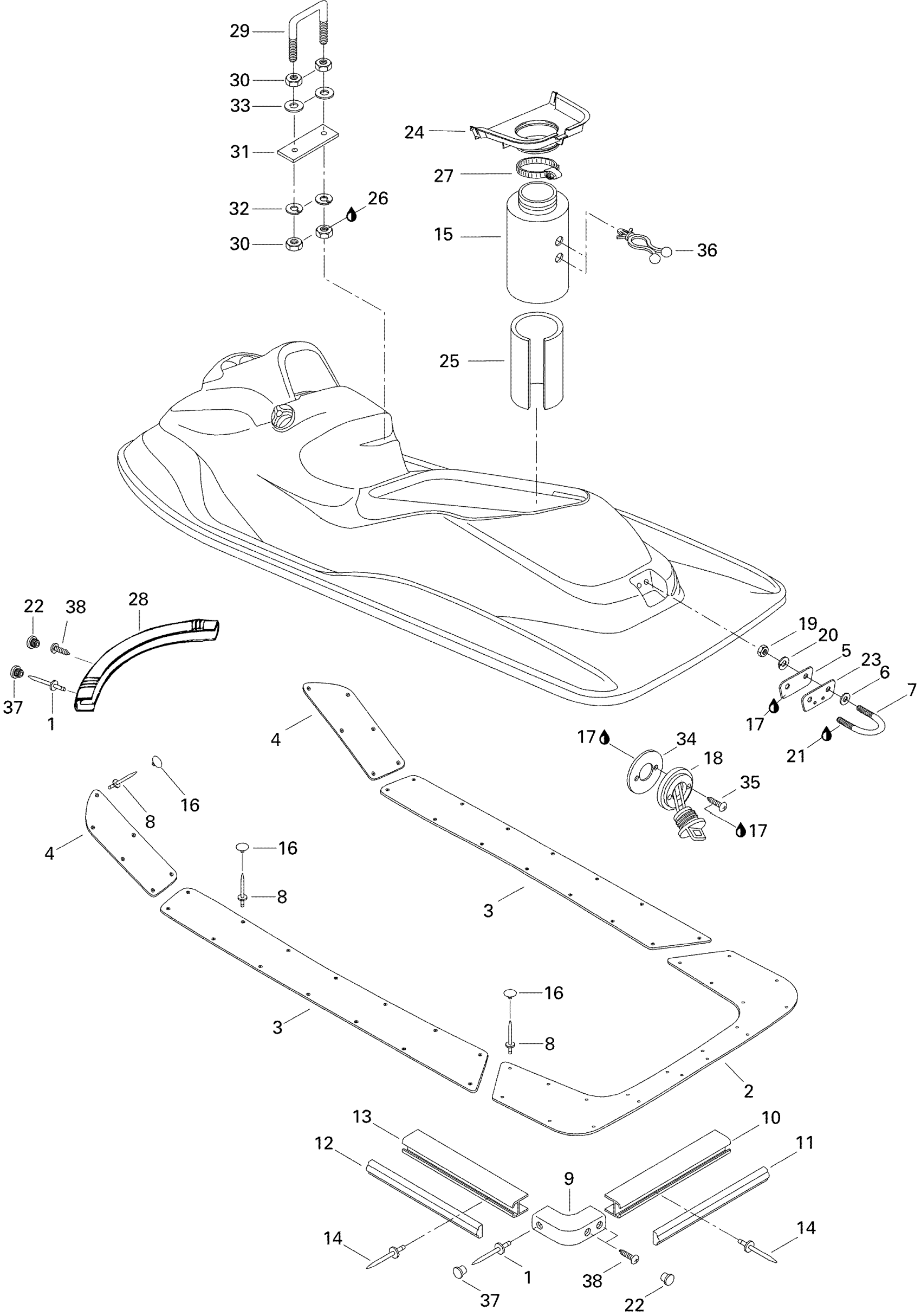

Sea-doo GSX, 5620, 1996 09- Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.37

2

Rear Carpet (Indigo Blue)

291000875

Unavailable

3

RH Lateral Carpet (Indigo)

291000873

Unavailable

3

LH Lateral Carpet (Indigo)

291000874

Unavailable

4

RH Front Carpet (Indigo)

291000871

Unavailable

4

LH Front Carpet (Indigo)

291000872

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Flat Washer M8.5 x 18

293050001

$3.07

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

RH Bumper Corner (Indigo)

291000868

Unavailable

9

LH Bumper Corner (Indigo)

291000867

Unavailable

10

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

11

Rear Bumper Trim (Indigo)

291000866

Unavailable

12

SIDE BUMPER TRIM (INDIGO) - Call your local BRP dealership

291000864

Unavailable

13

Black, Side Bumper

204050270

$179.99

14

Pop Rivet 3/16"

293150014

$1.09

15

Rear Vent Hose

291000770

Unavailable

16

Snap Cap (Indigo Blue)

293000053

Unavailable

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

Drain Plug

292000187

$14.49

19

Hex. Nut M8

232081600

$1.47

20

Lock Washer 8 mm, Stainless

234181601

$0.55

21

Loctite 271, 10 ml

293800005

$26.99

22

Bumper Plug (Indigo Blue)

293000059

Unavailable

23

Finition Plate (Indigo Blue)

291000877

Unavailable

24

Hose Support

291000377

Unavailable

25

Sound Damping

291000400

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Tridon Clamp

293650054

$9.49

28

Nose Bumper (Indigo Blue)

291000862

Unavailable

29

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

30

Hex. Nut M6

232061600

$1.15

31

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

32

Lock Washer Helical M6

234161601

$1.15

33

Flat Washer M6, Stainless

234062600

$0.77

34

GASKET - Call your local BRP dealership

293250030

Unavailable

35

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

36

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

37

Bumper Plug (Indigo Blue)

293000048

Unavailable

38

Phillips Screw 10-14 X 7/8”

211000037

Unavailable
