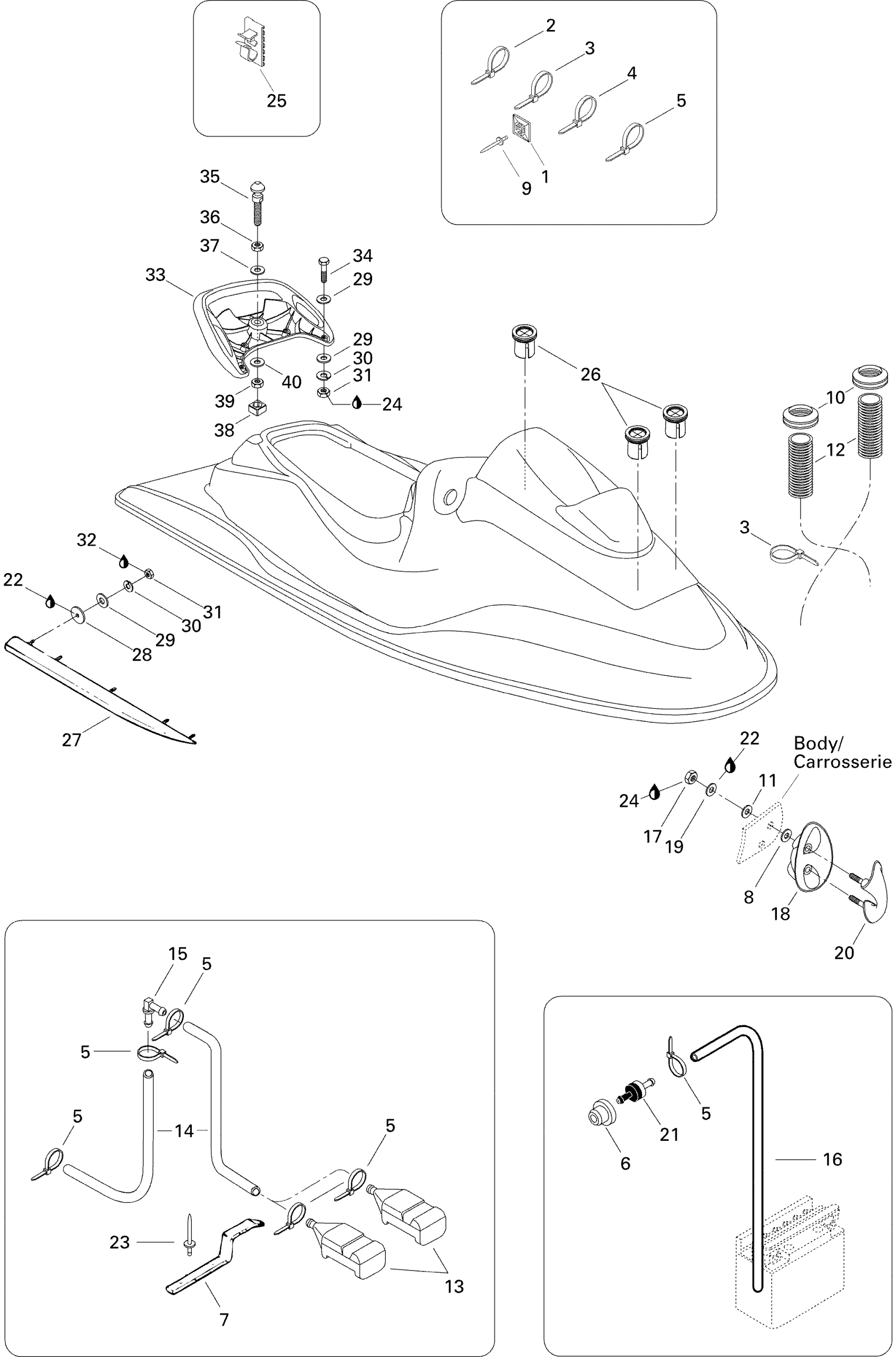

Sea-doo GSX, 5620, 1996 Body, Front View Diagram

#

Description
Price

1

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

2

Tie-Rap 180 mm

414115200

$0.11

3

Tie Wrap 368 mm

293750008

$1.04

4

Tie Wrap 142 mm

293750002

$1.25

5

Tie Wrap 94 mm | 4X4

293750001

$1.03

6

Grommet

293720029

$1.59

7

LH Spring Clip

292000228

Unavailable

8

Stainless, Flat Washer 8 mm

234081600

$0.55

9

Pop Rivet 1/8''

293150033

Unavailable

10

Grommet

293720036

Unavailable

11

Rubber Washer

293830037

$2.68

12

Vent Tube

291000870

Unavailable

13

Screen Bailer

292000079

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

17

Hex. Elastic Nut M8

232581600

$1.48

18

Shell (Indigo)

292000332

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

Eye-Bow (Indigo)

292000331

Unavailable

21

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

Avdel Rivet 3/16"

293150037

$0.56

24

Loctite 271, 10 ml

293800005

$26.99

25

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

26

Grommet

293720043

Unavailable

27

RH Sponson | GSI 5622.

292000319

Unavailable

27

LH Sponson | GSI 5622.

292000321

Unavailable

28

GASKET - Call your local BRP dealership

293250026

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.77

30

Lock Washer Helical M6

234161601

$1.15

31

Hex. Nut M6

232061600

$1.15

32

Loctite 243, 10 ml

293800060

$21.49

33

Grab Handle Kit (Yellow) | Includes 30 - 34.

295500367

Unavailable

34

Hex. Screw M6 X 40

207064060

$1.69

35

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

36

Hex. Jam Nut M10

232100600

$2.22

37

Flat Washer 10 mm, Stainless

234002600

$2.22

38

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

39

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

40

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable
