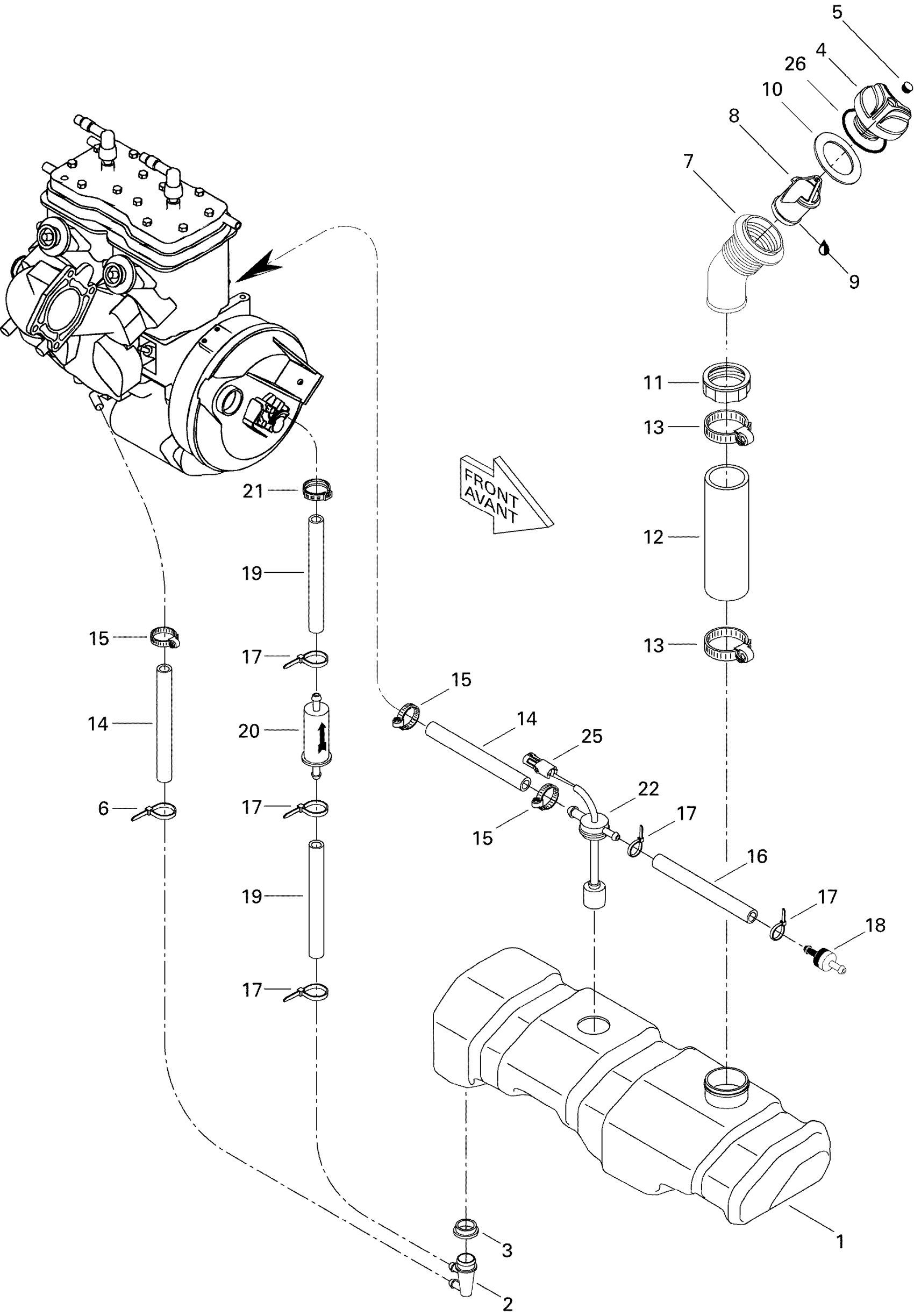

Sea-doo GSX, 5620, 1996 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000238

$76.67

2

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

3

Grommet

293720008

$10.91

4

OIL CAP ASS'Y - Call your local BRP dealership | Includes 2 - 3.

275000178

Unavailable

5

Snap Cap

293000051

Unavailable

6

Tie-Rap 180 mm

414115200

$0.09

7

Filler Neck

275000187

Unavailable

8

Restrictor

275000190

Unavailable

9

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

10

Gasket

293250029

$12.06

11

Filler Neck Nut, Fuel

211100012

$11.51

12

Filler Hose

275000188

Unavailable

13

Tridon Clamp

293650035

$5.80

14

Was 275500008 Hose 12 mm

219704356

$5.94

15

Tridon Gear Clamp

293650170

$1.74

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

17

Tie Wrap 94 mm | 4X4

293750001

$0.83

18

Check Valve This part replaces 275500087.

275501246

Unavailable

19

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

20

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

21

Oetiker Clamp

293650042

$1.40

22

Oil Level Sensor

278000478

Unavailable

23

Wire Seal

278000218

$3.48

24

Male Terminal | XT Models

278000222

$2.55

25

Female Housing, 2 Circuits

278000217

$7.59

26

Gasket

293250017

Unavailable
