01- Cooling System

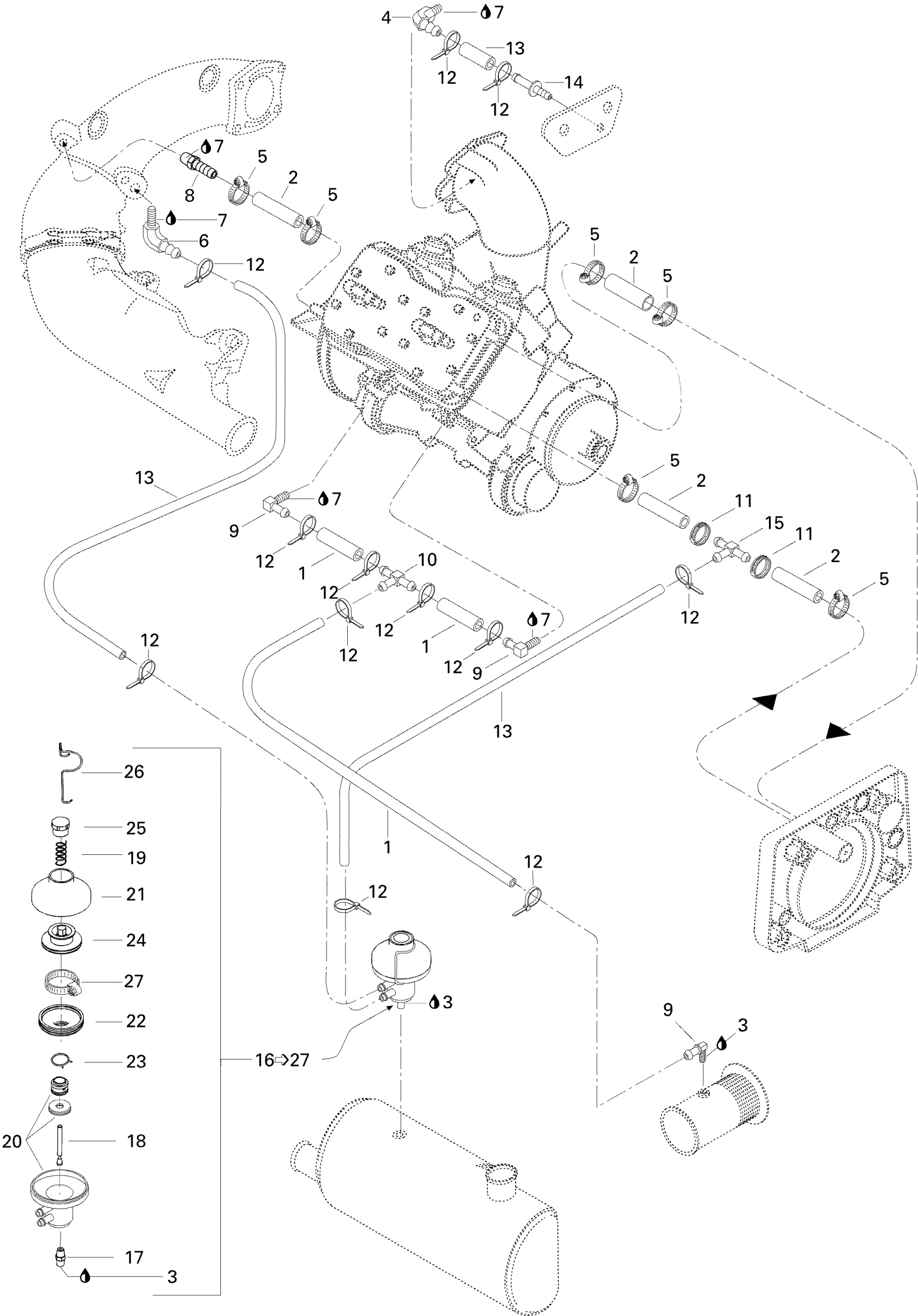

Sea-doo GSX, 5620, 1996 01- Cooling System Diagram
#
Description
Price
1
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
2
Was 276000001 Hose 12.5 mm
219704394
$51.99
3
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
4
Elbow Fitting 90°
293710018
Unavailable
5
Tridon Gear Clamp
293650172
$3.09
6
Elbow Fitting 90°
293710048
Unavailable
7
Was 293800013 Loctite 56765
219704454
$65.99
8
Male Connector | With Catalyst
293710021
$14.23
9
Elbow Fitting
293700016
Unavailable
10
T-FITTING - Call your local BRP dealership
293710061
Unavailable
11
Caillau Clic Clamp
293650018
Unavailable
12
Tie Wrap 94 mm | 4X4
293750001
$1.03
13
Hose 6 Mm 15000Mm Long
219704360
$132.49
14
BLEED FITTING - Call your local BRP dealership
291000306
Unavailable
15
T-FITTING - Call your local BRP dealership
293710052
$12.70
16
Presure Regulator Ass'y | Includes 22 to 35
274000316
Unavailable
17
MALE CONNECTOR - Call your local BRP dealership
293700010
Unavailable
18
FEEDING ROD - Call your local BRP dealership
274000423
Unavailable
19
SPRING 44 MM - Call your local BRP dealership
274000382
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Valve Cover
420911552
$38.99
22
Bellow
420260721
$51.99
23
SPRING CLAMP - Call your local BRP dealership
420838190
Unavailable
24
EXHAUST VALVE - Call your local BRP dealership
420253255
Unavailable
25
Adjuster Screw
420241221
$14.22
26
SPRING CLIP - Call your local BRP dealership
420838083
Unavailable
27
Rivalair Clamp
293650065
Unavailable
