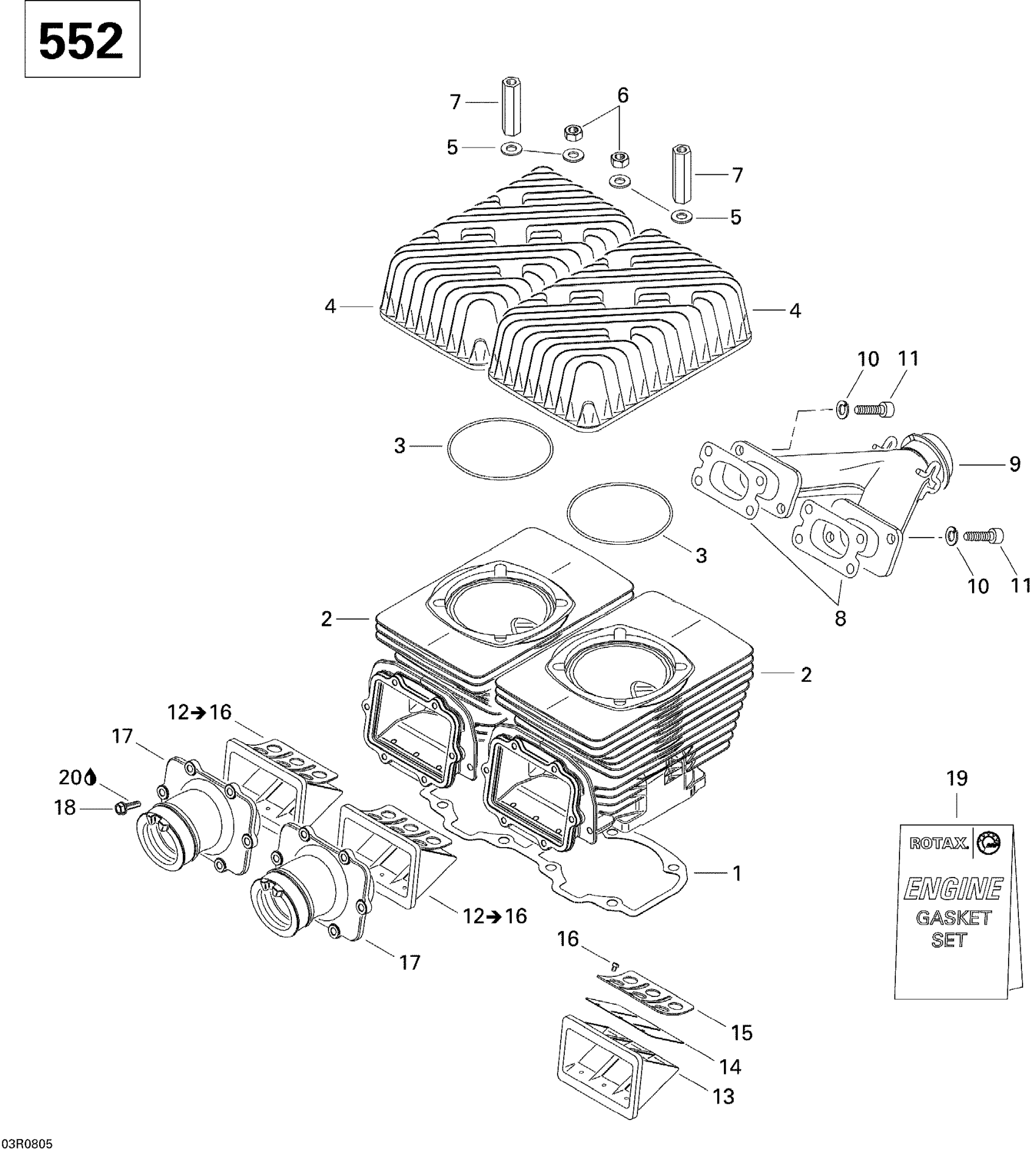

Ski-Doo GSX 550F, 2008 Cylinder, Exhaust Manifold And Reed Valve V1 Diagram

#

Description
Price

1

Gasket 0.3

420950910

$14.90

1

Gasket 0.4

420950911

$17.13

1

Gasket 0.6

420950912

$17.13

2

Cylinder This part replaces 420923978.

420923974

$402.96

2

REBUILD-CYLINDER 552 - Call your local BRP dealership

421000600

Unavailable

3

O-Ring This part replaces 420850540.

293300026

$3.06

4

HEAD CYLINDER - Call your local BRP dealership

420923595

Unavailable

5

Flat Washer 8.4 mm

420250315

$1.06

6

Hex. Nut M8

232081414

$0.69

7

Distance Nut M8 X 47

420842204

$14.10

8

Gasket 1.0 mm

420831849

$7.69

9

Exhaust Manifold

420673065

$309.67

10

Washer-Lock Din.128

420945832

$1.06

11

Socket Head Screw M8 X 30

205083044

$1.06

12

Reed Valve Ass'y

420924519

$49.22

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Reed Pedal

420924532

$42.51

15

Reed Pedal Stop

420924539

$11.18

16

Phillips Screw M3 X 5

420941215

$1.63

17

Carburetor Socket

420867300

$61.16

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Gasket Set, Engine

420889911

$86.54

20

Loctite 243, 10 ml

293800060

$21.49
