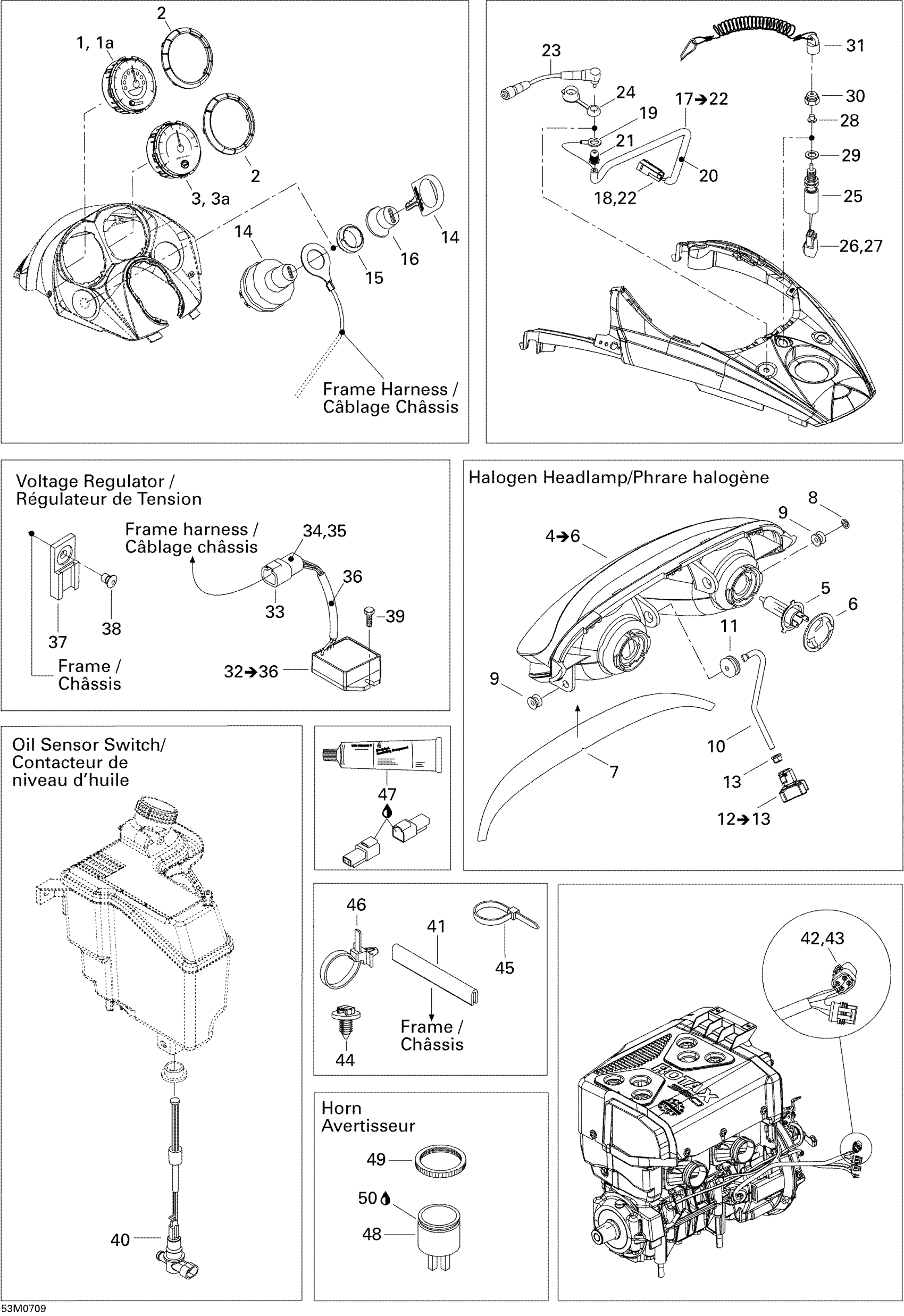

Ski-Doo GSX 550F, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1 to 1a

515176476

Unavailable

1a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

3a

Lens

415129320

$24.49

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

8

Push Nut

732610072

$2.19

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

Unavailable

12

HANDLE - Call your local BRP dealership

515175975

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

15

FACE NUT - Call your local BRP dealership

410112100

Unavailable

16

Switch Boot

570013700

$11.49

17

Visor Harness

515177837

$33.99

18

Male Terminal

515175232

$1.58

19

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

20

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Male Terminal Housing, 2 Circuits

515175654

$9.12

23

Extension

515175851

$11.12

24

Cap

572103300

$10.49

25

Brake Switch

515175653

$19.49

26

Male Terminal Housing, 2 Circuits

515175654

$9.12

27

Male Terminal

515175232

$1.58

28

Plunger Cap

570151100

$9.85

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Switch Nut

515145900

$12.12

31

Cap Ass'y

515178283

$38.99

32

Voltage Regulator | Includes 34 to 40

515176189

$149.99

33

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

34

Male Terminal

515175568

$9.12

35

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

36

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

37

Clip

270000141

$11.49

38

Avdel Rivet 3/16"

293150037

$0.56

39

Hex. Flange Screw M6 X 12

210261250

$1.90

40

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

41

TRIM - Call your local BRP dealership

509000263

Unavailable

42

Female Terminal Housing, 4 Circuits

278001473

$26.99

43

Female Lock, 4 Circuits

278001474

$3.49

44

Mount Dart

293730040

$1.04

45

Tie-Rap 180 mm

414115200

$0.11

45

Tie Wrap 142 mm

293750002

$1.25

46

Tie-Rap 173 mm

293750009

$1.04

47

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

48

HORN - Call your local BRP dealership

515176035

Unavailable

49

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

50

Silicone Sealant 51388, 300 ml

296000309

$36.99
