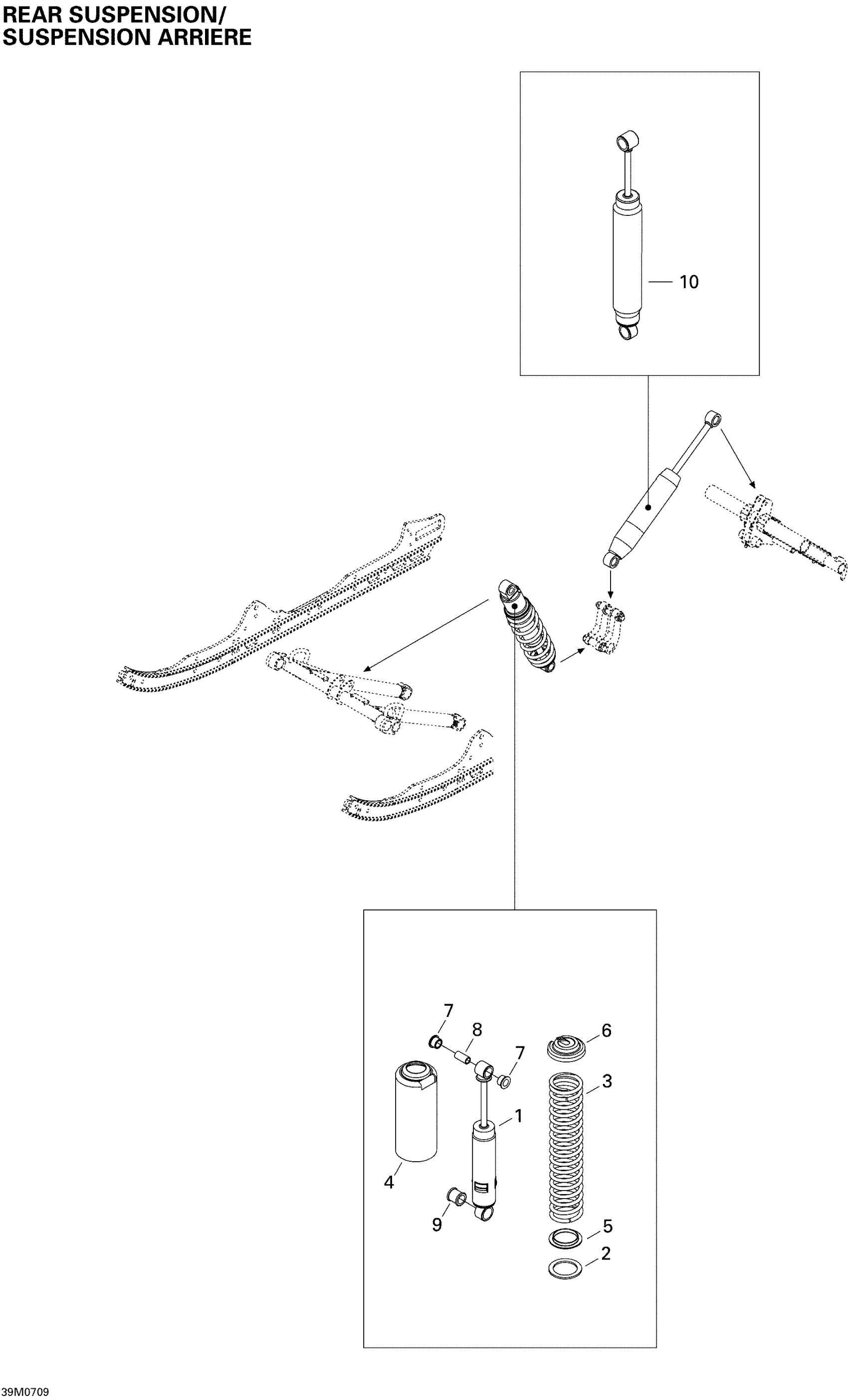

Ski-Doo GSX 550F, 2007 Rear Suspension Shocks Diagram

#

Description

Price

1

CENTER SHOCK - Call your local BRP dealership

503190992

Unavailable

2

WASHER - Call your local BRP dealership

505070401

Unavailable

3

SPRING - Call your local BRP dealership

415070100

Unavailable

4

Protector

503193663

$34.30

5

Spring Guide

503187500

$7.37

6

Spring Stopper

706200881

$10.30

7

Urethane Bushing

503189117

$6.67

8

Bushing | Includes 240d to 240d1

503189282

$4.06

9

Bushing

503189271

$10.15

10

REAR SHOCK - Call your local BRP dealership

503190991

Unavailable
