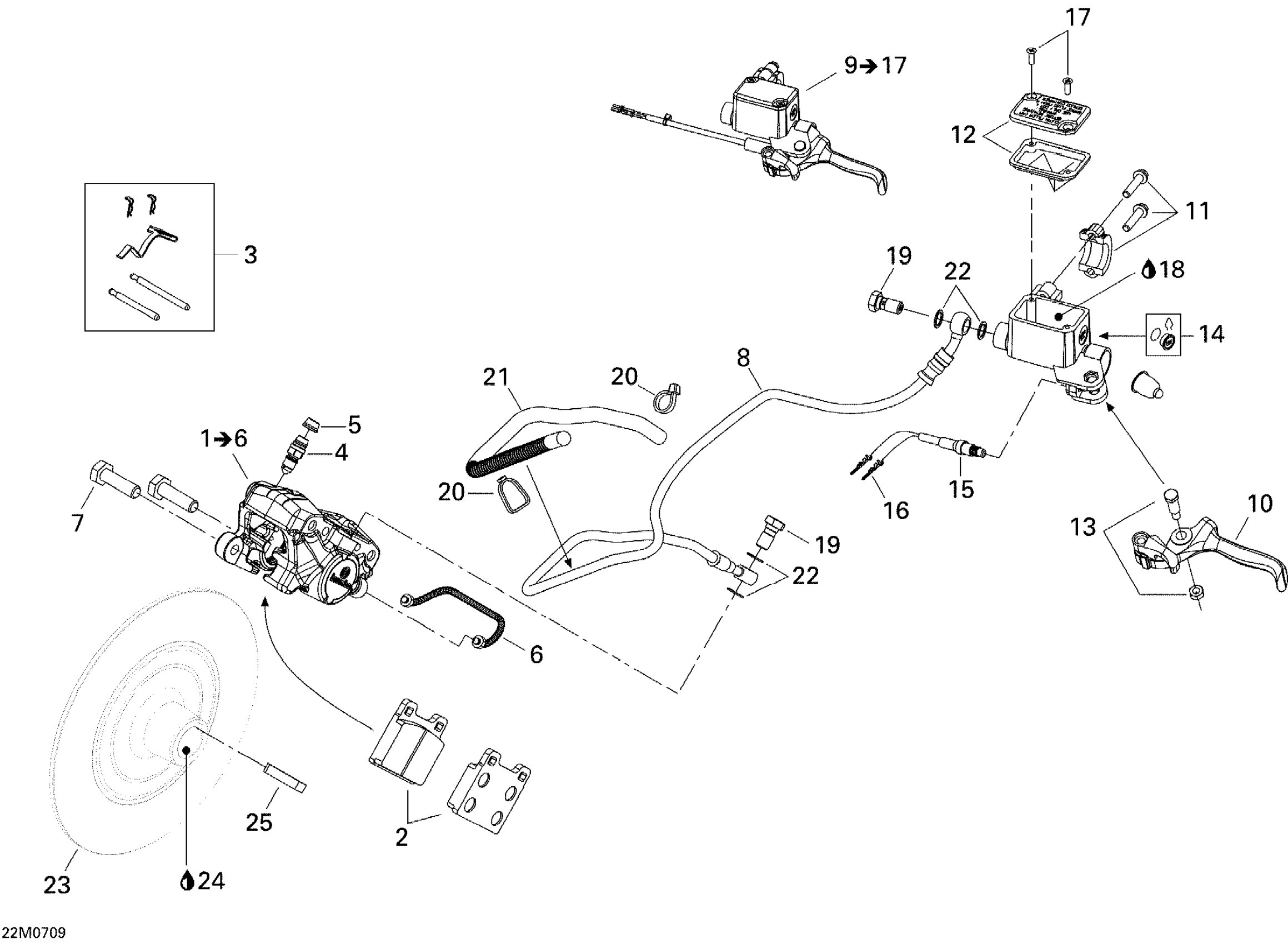

Ski-Doo GSX 550F, 2007 06- Hydraulic Brakes Diagram

#

Description
Price

1

BRAKE CALIPER ASS'Y - Call your local BRP dealership | Includes 1 to 6

507032448

Unavailable

2

Brake Pad Kit

415129172

$52.99

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

415128865

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

8

HOSE - Call your local BRP dealership

507032429

Unavailable

9

Master Cylinder | Includes 10 to 16

507032362

Unavailable

10

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

11

Clamp And Screw Kit

507032477

$23.99

12

Cap

415029900

$41.49

13

Pin Ass'y

415030000

$19.99

14

WINDOW - Call your local BRP dealership

414990600

Unavailable

15

Microswitch

507032366

$98.99

16

Male Terminal

515175232

$1.58

17

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

18

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

18

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

19

Banjo Bolt

414920500

$8.68

20

Tie Wrap 142 mm

293750002

$1.25

21

Tubing 10 MM 1000MM Long

219704407

$2.79

22

Washer

414920600

$1.90

23

BRAKE DISK - Call your local BRP dealership

507032458

Unavailable

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

KEY - Call your local BRP dealership

507021300

Unavailable
