Description

Price

1

Flange Connector

420810955

$110.99

2

Torx Flange Screw M6 X 20

420440207

$3.06

3

Rewing Starter Ass'y | Includes 3a to 13

420890170

$185.49

3

Rewing Starter Ass'y | Includes 3a to 13

420890170

$185.49

4

Rewind Spring

420939115

$30.49

5

Rope Sheave

420852480

$63.99

6

Was 412500100 Rope-Starter

219704403

$158.99

7

Key Clamp

420852070

$4.23

8

Pawl

420852296

$20.99

9

Pawl Lock | Includes no. 8-9

420852640

$6.99

10

Stage Sleeve

420847926

$16.33

11

Locking Element

420845560

$2.11

12

O-Ring

420250400

$5.39

13

Lock Ring

420852520

$9.27

14

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

15

Molykote PG 54, 10 g

420899763

$21.99

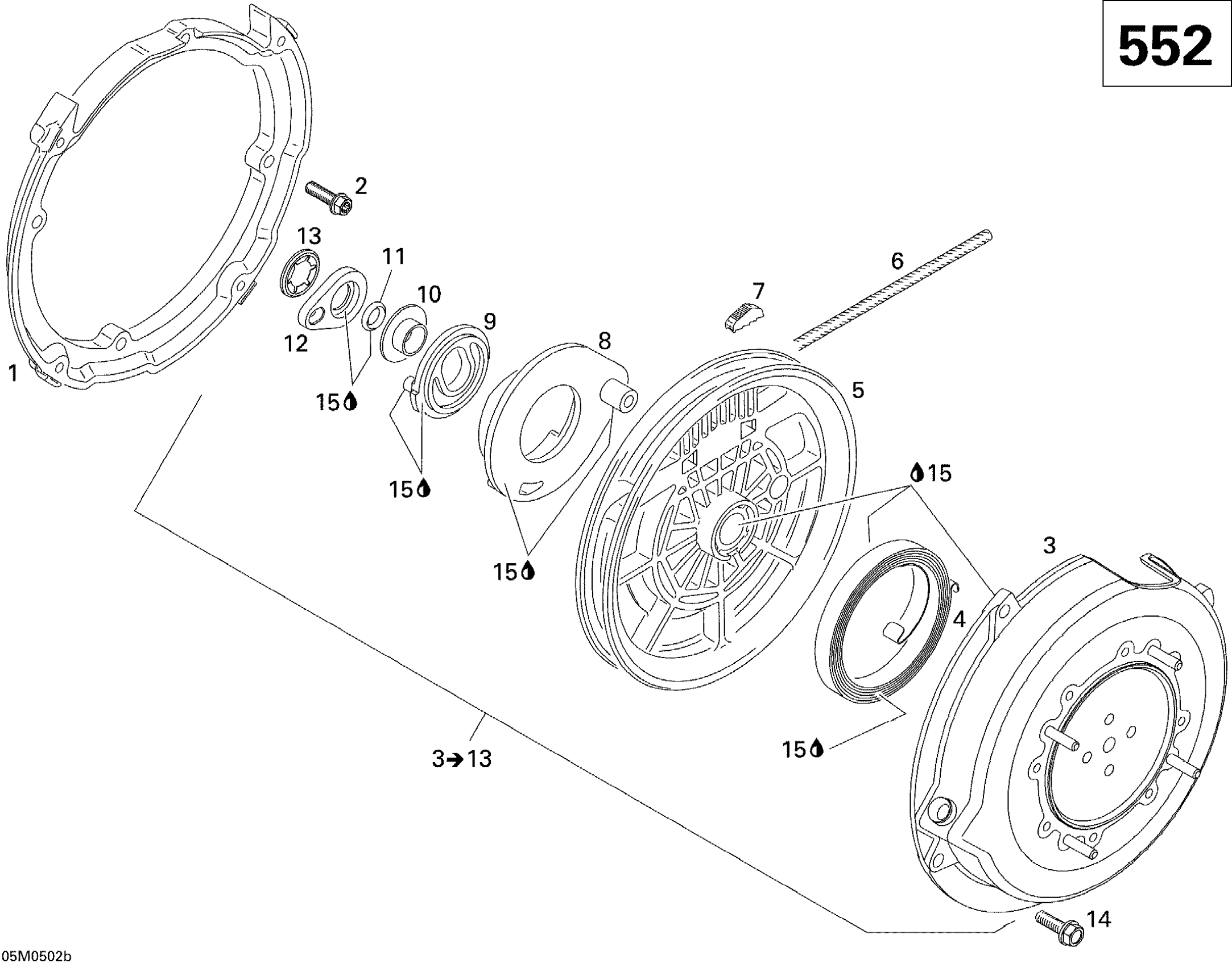

Ski-Doo GSX 550F, 2005 04- Rewind Starter 552 Diagram

Flange Connector

Torx Flange Screw M6 X 20

Rewing Starter Ass'y | Includes 3a to 13

Rewing Starter Ass'y | Includes 3a to 13

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

Pawl Lock | Includes no. 8-9

Stage Sleeve

Locking Element

O-Ring

Lock Ring

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

Molykote PG 54, 10 g
