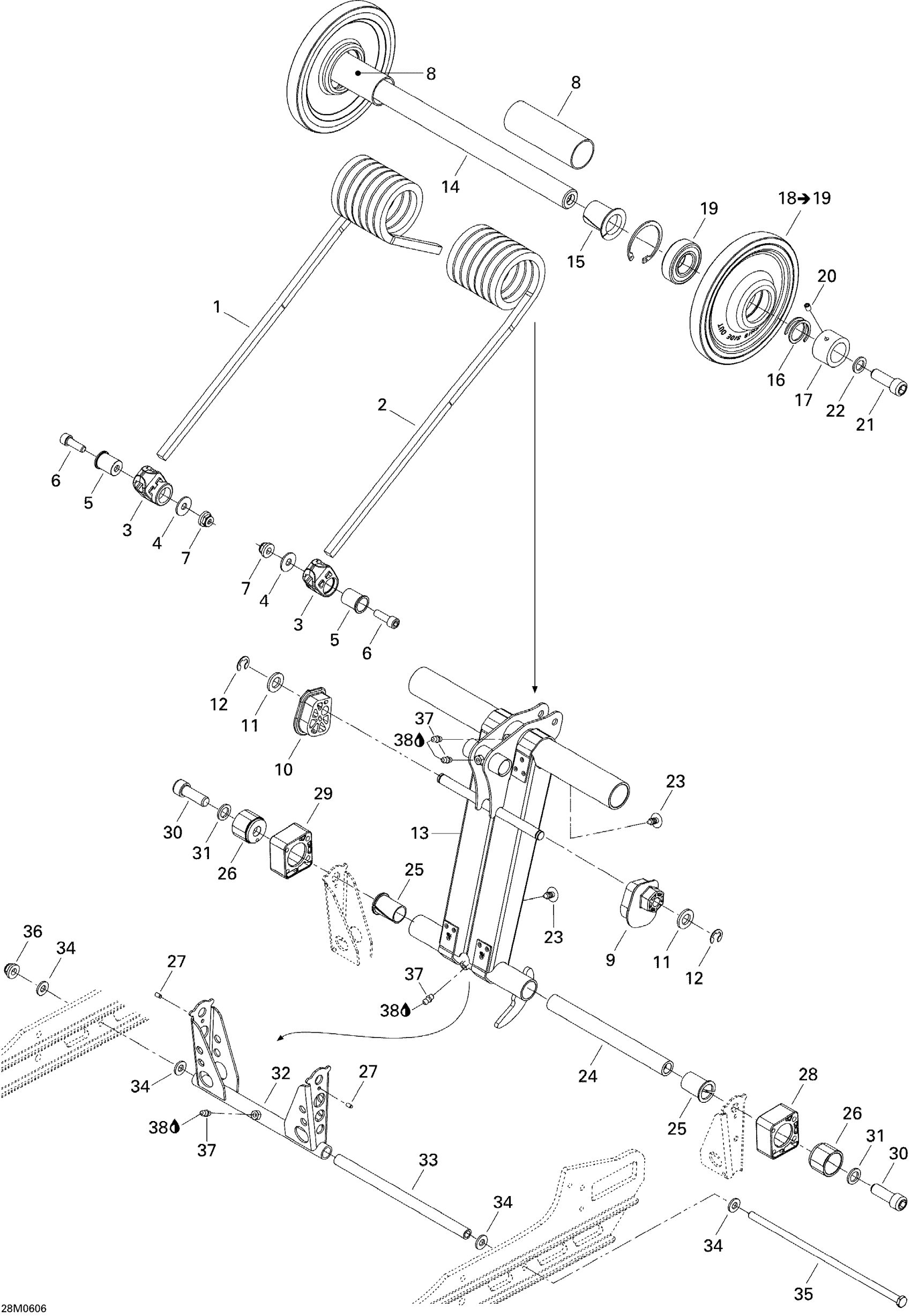

Ski-Doo GSX 500SS, 2006 08- Rear Arm Diagram

#

Description
Price

1

RH Spring

503191287

$79.49

2

LH Spring

503191289

$79.49

3

SPRING SUPPORT - Call your local BRP dealership

503190583

Unavailable

4

Flat Washer 8 mm

234082410

$1.47

5

Spring Support Kit

861805547

$10.49

6

Socket Head Screw M8 X 25

205082544

$1.15

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Plastic Bushing

503191041

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

11

Flat Washer 12 mm

234021410

$0.72

12

E-Circlip

293370013

$0.65

13

Rear Arm

503191119

Unavailable

14

Upper Shaft

503190569

Unavailable

15

CUSHION - Call your local BRP dealership

503190619

$4.49

16

Axle Spring

503189146

$9.59

17

RETAINER RING - Call your local BRP dealership

503190570

Unavailable

18

WHEEL 155 ASS'Y - Call your local BRP dealership | Includes 28 to 29

503191046

Unavailable

19

Ball Bearing

293350115

$12.11

20

Socket Set Screw M6 X 8

206260844

$1.48

21

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

22

Washer

503189276

$3.28

23

Black, Dart

414644300

$0.98

24

Lower Shaft

503192330

$45.99

25

Cushion

503191640

$5.93

26

Block Guide

503189488

$39.99

27

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

28

LH Block, 4 Positions

503191563

Unavailable

29

RH Block, 4 Positions

503190622

Unavailable

30

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

31

Washer | 7415/7416. 7417/7418.

503189148

$2.85

32

PIVOT ARM - Call your local BRP dealership

503191091

Unavailable

33

Pivot Arm Axle

503189156

$21.99

34

Washer

503189157

$3.28

35

Bolt M8 X 248mm

503192440

$30.49

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Grease Fitting

408200700

$3.49

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
