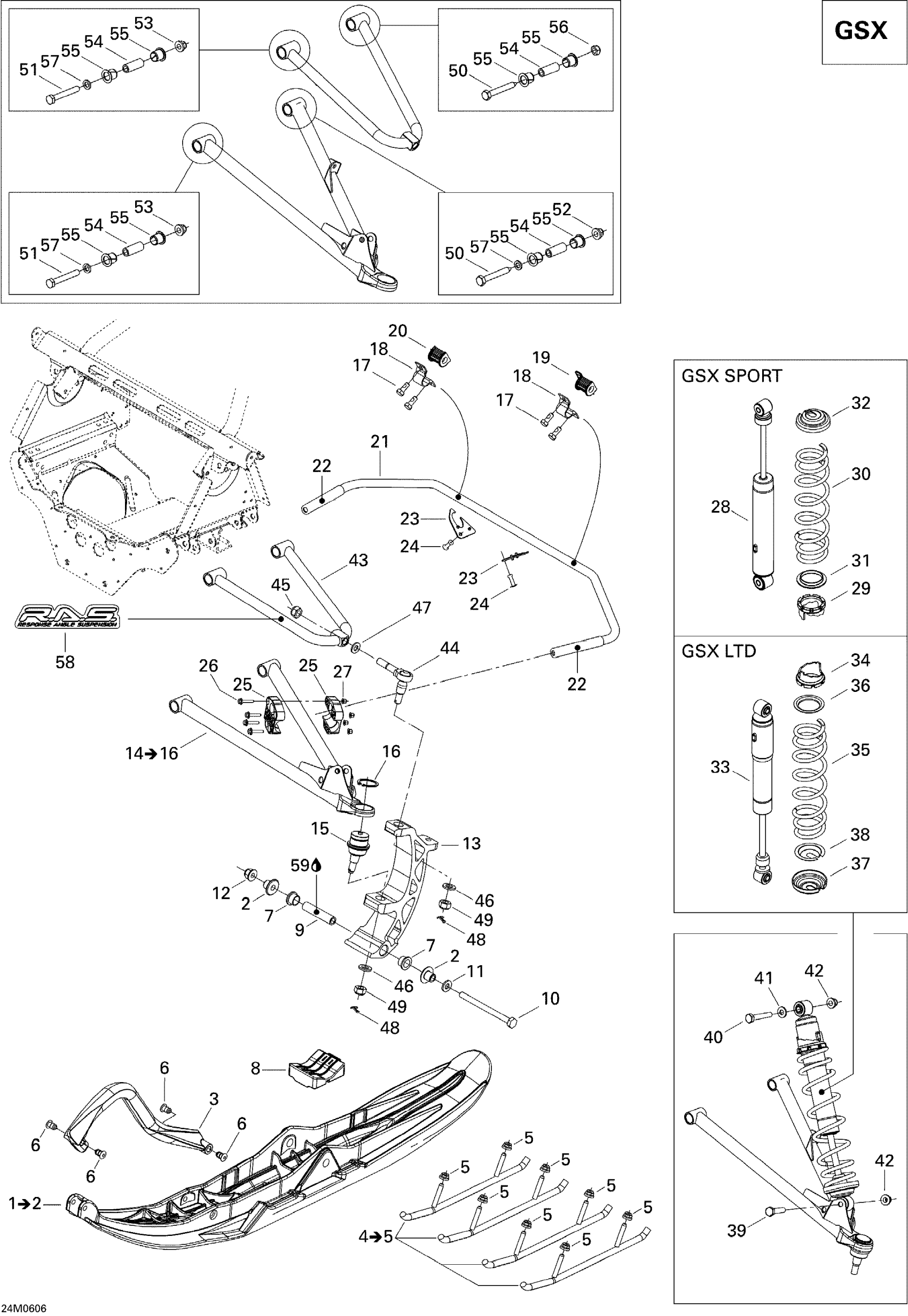

Ski-Doo GSX 500SS, 2006 07- Front Suspension And Ski 500 Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

1

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

2

Ski Bushing

505071781

$16.18

3

Black, Handle

505070963

$35.99

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$92.99

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Retainer 17mm long

505071812

$5.95

7

Leg Bushing

505072690

$12.49

8

Ski Stopper

505071779

$18.78

9

Spacer

506133300

$23.99

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Washer

732900049

$0.58

12

Flange Nut M10

732610084

$6.79

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

Unavailable

15

Ball Joint

505073636

$51.99

16

Circlip

293370035

$2.64

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

21

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.55

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

25

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

26

Hex. Flange Screw M5 X 25

207652544

$0.50

27

Hex. Flange Elastic Nut M5

233251414

$1.04

28

FRONT SHOCK - Call your local BRP dealership

505071662

Unavailable

29

Adjustment Cam

505073625

$12.99

30

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

31

Spring Guide

503187500

$10.49

32

Spring Stopper

706200881

$12.99

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

40

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

41

Washer

503189564

$0.74

42

Hex. Flange Elastic Nut M10

233201414

$1.58

43

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

44

Upper Ball Joint

505072257

$17.58

45

Hex. Flange Elastic Nut M12

250000047

$1.90

46

Flat Washer 12 mm

234021410

$0.72

47

Washer

503189276

$3.28

48

Cotter Pin

211400017

$0.33

49

Hex. Flange Elastic Nut M12

250000047

$1.90

50

Hex. Screw M10 X 75

250001063

$13.16

51

Hex. Screw M10 X 75

250001063

$13.16

52

Hex. Flange Elastic Nut M10

250100165

$0.85

53

Hex. Flange Elastic Nut M10

250100165

$0.85

54

Bushing

505070567

$24.99

55

Arm Bushing

505070566

$3.28

56

Elastic Flange Nut M10

232501416

$1.48

57

Washer

503189564

$0.74

58

R.a.s. Suspension Decal

516002747

Unavailable

59

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
