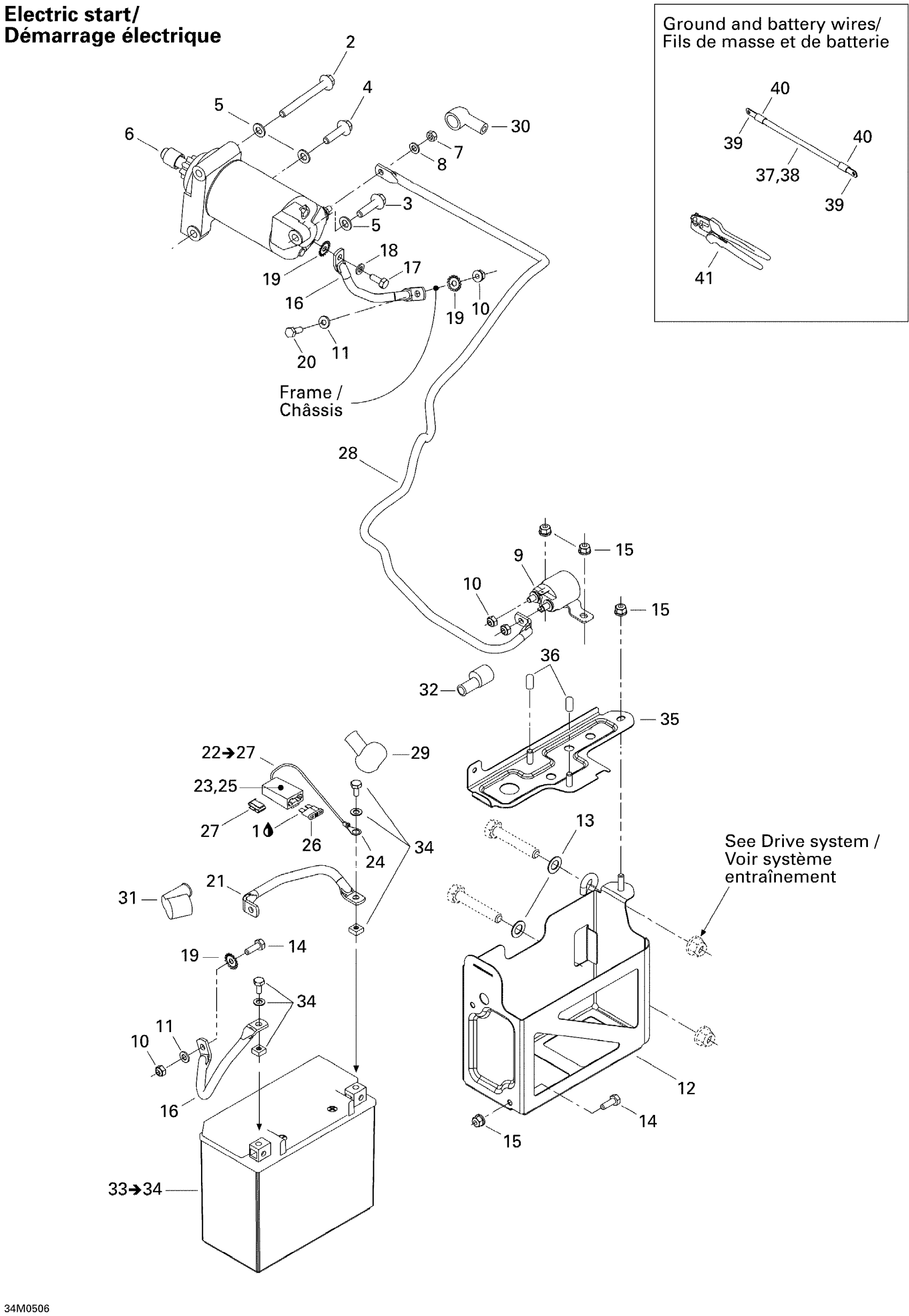

Ski-Doo GSX 500SS, 2005 10- Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.29

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

5

Flat Washer With Teflon 8 mm

250200008

$3.80

6

Electric Starter Ass'y

515176133

$319.49

7

Elastic Stop Nut M6

232561414

$0.55

8

Flat Washer 6 mm

234061410

$1.36

9

Starter Relay

515176011

$62.49

10

Elastic Stop Nut M6

232561414

$0.55

11

Flat Washer 6 mm

234061410

$1.36

12

Battery Support Black

515176230

Unavailable

13

Washer

503175800

$3.28

14

Hex. Screw M6 X 18

207161844

$0.76

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Ground Wire

515175749

$20.99

17

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

18

Flat Washer 6 mm

234061410

$1.36

19

Lock Washer Serrated M6

250200041

$1.15

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

21

Battery Wire

515175904

$19.99

22

Battery Fuse Wire | Includes 21 to 22

515175489

$16.86

23

Female Terminal

409004200

$4.55

24

Open Barrel

278000992

$2.21

25

Fuse Holder

409004000

$8.09

26

Fuse, 30 Amperes

410917200

$3.28

27

CLIP - Call your local BRP dealership

409014200

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Protection Cap

570151000

$21.99

30

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

31

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

32

Protector Cap | XT

515175919

$17.99

33

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

34

Battery Bolt Kit

250000282

$7.29

35

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

36

Cap

515176141

$3.09

37

Ground Cable Battery, no 6, meter)

278001680

Unavailable

38

Cable Battery, no 6, meter)

278001690

Unavailable

39

Terminal 45°, Small Hole

278001682

Unavailable

39

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

39

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

39

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

39

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

39

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

39

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

39

Terminal 30°, 2 Holes

278001776

Unavailable

40

Was 710000483 Heat Shrink Tubing

219704447

$78.99

41

Crimp Plier

529035730

Unavailable
