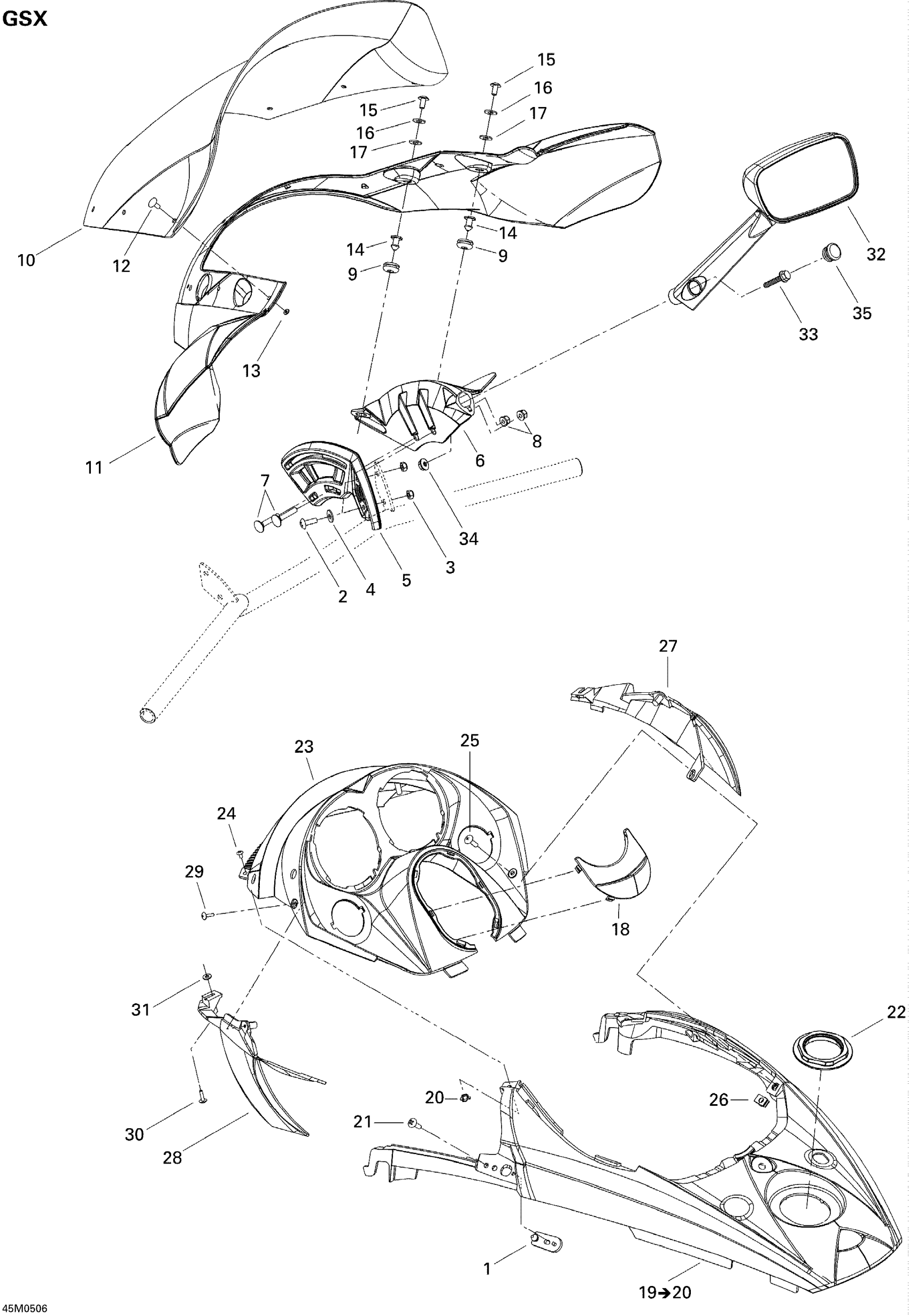

Ski-Doo GSX 500SS, 2005 Windshield And Console 500SS Diagram
#
1
HOOD LATCH - Call your local BRP dealership
517302616
Unavailable
2
Torx Truss Screw M6 X 16
250000721
Unavailable
3
Hex. Nut M6
250000135
Unavailable
4
Flat Washer 6 mm
234062100
Unavailable
5
RH Fixing Plate
517303076
Unavailable
5
LH Fixing Plate
517303078
Unavailable
6
RH WINDSHIELD SUPPORT - Call your local BRP dealership
517303077
Unavailable
6
LH WINDSHIELD SUPPORT - Call your local BRP dealership
517303079
Unavailable
7
Carriage Bolt M6 X 35
207763554
Unavailable
8
Hex. Flange Elastic Nut M6
233261494
Unavailable
9
Grommet
517302841
Unavailable
10
WINDSHIELD - Call your local BRP dealership
517303094
Unavailable
11
Air Deflector
517302816
Unavailable
12
Windshield Dart
517303070
Unavailable
13
Push Nut
250100034
Unavailable
14
Knob
517303439
Unavailable
15
Torx Screw K50 X 16
250000720
Unavailable
16
Washer M5
250200025
Unavailable
17
Rubber Washer 5 mm
250200024
Unavailable
18
CONSOLE CAP - Call your local BRP dealership
517302592
Unavailable
19
CENTER CONSOLE, BLACK, B-160 - Call your local BRP dealership | Black/Black
517303104
Unavailable
20
T-NUT, M4 - Call your local BRP dealership
250100030
Unavailable
21
Torx Screw M6 X 20
250000722
Unavailable
22
CONSOLE NUT - Call your local BRP dealership
517302575
Unavailable
23
Indicator Support | Sport
517303471
Unavailable
24
Torx Screw M4 X 8
250000127
Unavailable
25
Torx Screw M5 X 20
250000724
Unavailable
26
Panel Nut M5 X 0.8
250000958
Unavailable
27
RH AIR DEFLECTOR - Call your local BRP dealership
517302546
Unavailable
28
LH AIR DEFLECTOR - Call your local BRP dealership
517302547
Unavailable
29
Phillips Screw K40 X 16
250000723
Unavailable
30
Screw M4 X 16
250000725
Unavailable
31
Flat Washer 4 mm, Stainless
234042600
Unavailable
32
RH MIRROR - Call your local BRP dealership
517302449
Unavailable
32
LH MIRROR - Call your local BRP dealership
517302450
Unavailable
33
Hex. Flange Screw M6 X 40
207664044
Unavailable
34
Hex. Flange Elastic Nut M6
233261494
Unavailable
35
Cap
517302716
Unavailable
