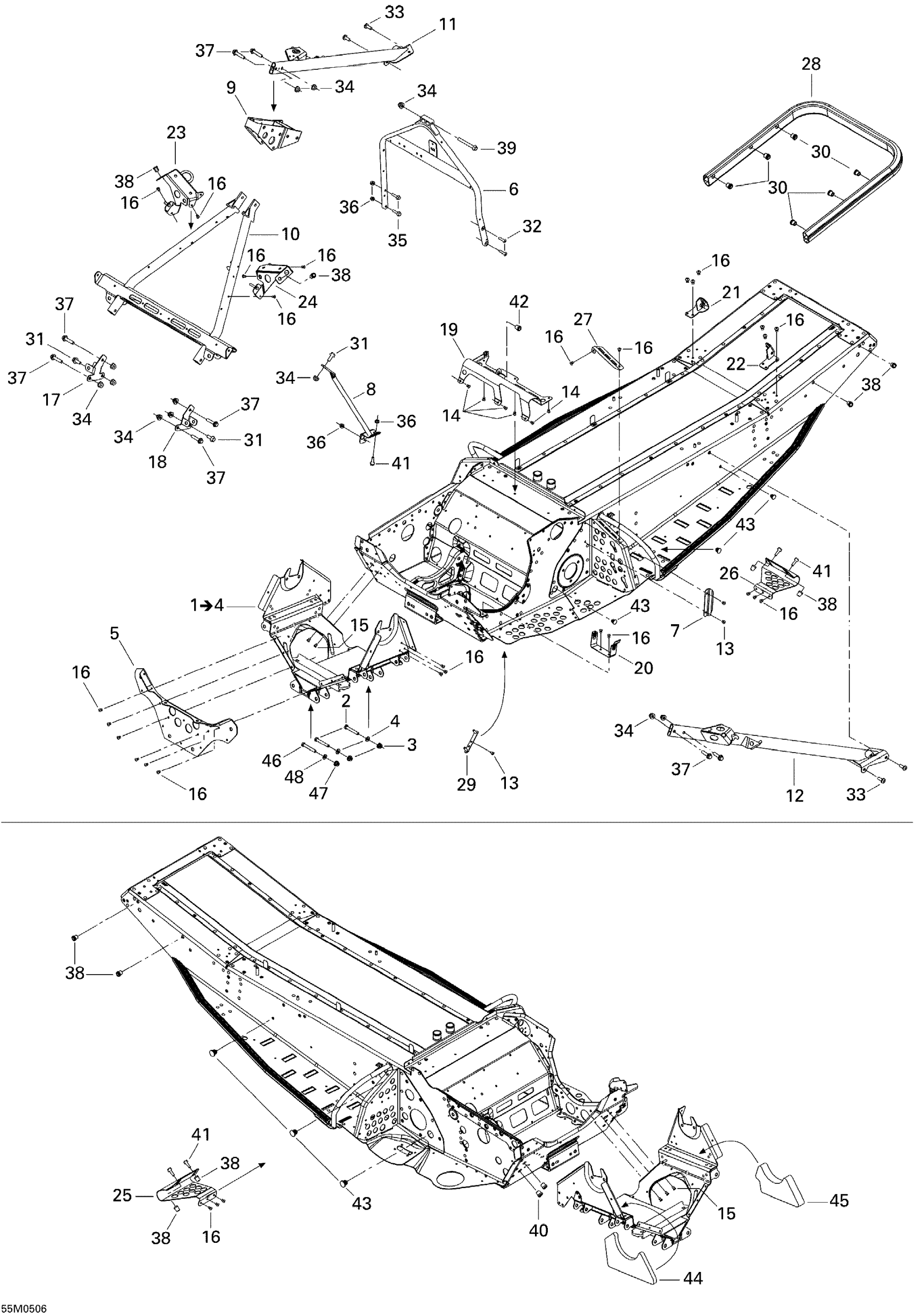

Ski-Doo GSX 500SS, 2005 Frame and Components Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234081410

Unavailable

5

Front Plate

518324726

Unavailable

6

HANDLE SUPPORT - Call your local BRP dealership

518323979

Unavailable

7

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

8

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

9

Bracket Block

518323853

Unavailable

10

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

11

RH Member

518323352

Unavailable

12

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

13

Pop Rivet 3/16"

390402200

$0.26

14

Pop Rivet 3/16"

390402400

Unavailable

15

Avex Rivet

390909100

$0.29

16

Avex Rivet

390909200

Unavailable

17

RH SHOCK BRACKET - Call your local BRP dealership

518322461

$8.43

18

LH SHOCK BRACKET - Call your local BRP dealership

518322462

$8.43

19

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

20

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

21

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

22

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

23

RH Console Support

518323535

Unavailable

24

LH Console Support

518323536

Unavailable

25

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

26

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

27

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

28

Rear Bumper

518323788

Unavailable

29

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

30

Hex. Flange Screw M8 X 20

207682044

Unavailable

31

Hex. Flange Screw M8 X 20

207682044

Unavailable

32

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

33

Pan Head Torx Screw M8 X 12

250000887

$1.56

34

Hex. Flange Elastic Nut M8

233281414

Unavailable

35

Hex. Flange Screw M6 X 25

207662544

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hex. Flange Screw M8 X 35

207683544

$1.39

38

Insert

293450275

Unavailable

39

Hex. Flange Screw M8 X 70

207687044

Unavailable

40

Insert

293450166

Unavailable

41

Hex. Flange Screw M6 X 20

207662044

Unavailable

42

Threaded Insert M6 X 1.0

250100242

Unavailable

43

Panel Fastener

518321954

Unavailable

44

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

45

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

46

Hex. Screw M8 X 55

207085544

$1.62

47

Hex. Flange Elastic Nut M8

233281414

Unavailable

48

Flat Washer 8 mm

234081410

Unavailable
