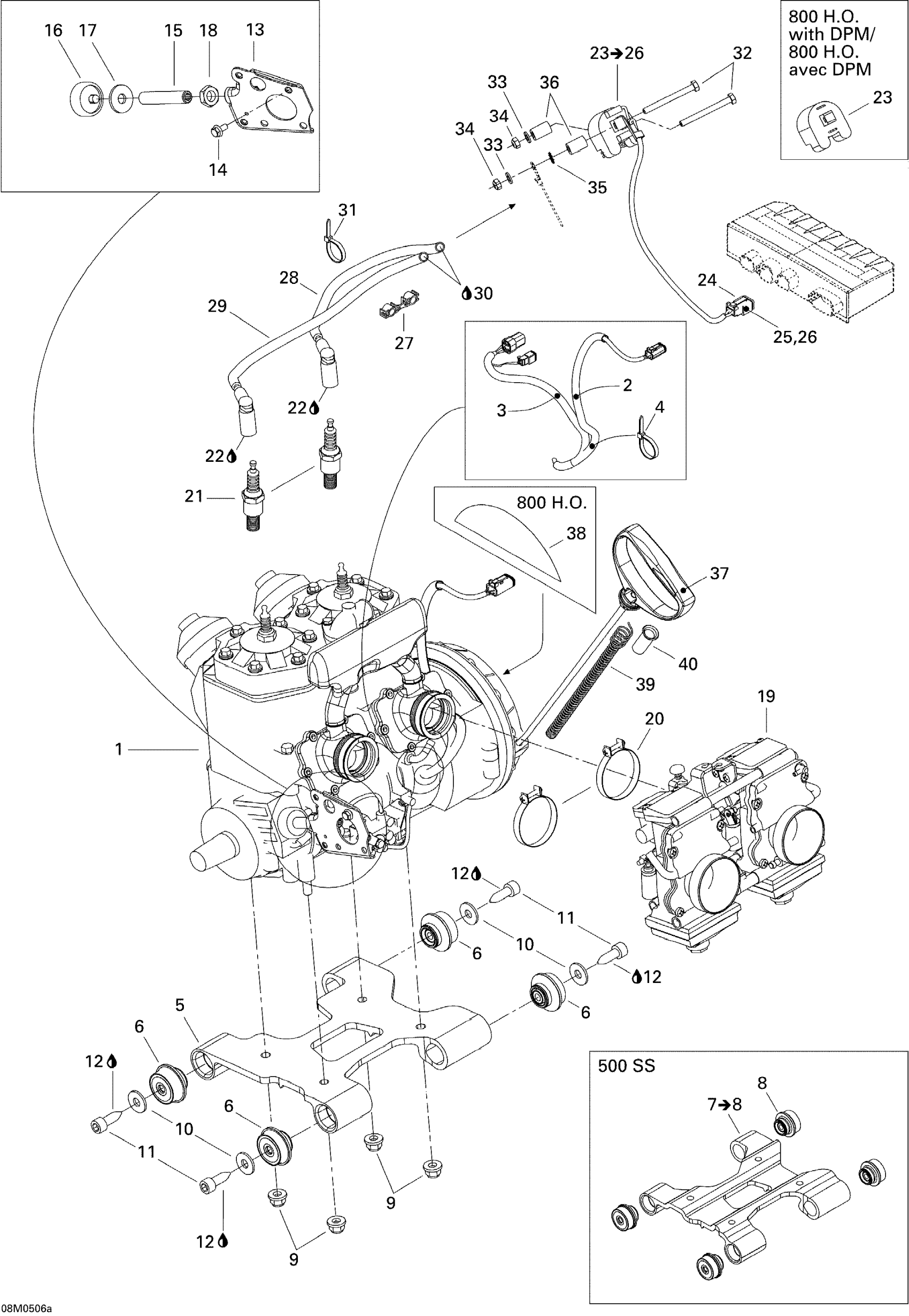

Ski-Doo GSX 500SS, 2005 01- Engine And Engine Support, GSX 500SS Diagram

#

Description
Price

1

Engine 593 Rer | 500 SS

400509757

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$14.49

3

Tubing 10 MM 1000MM Long

219704407

$2.79

4

Tie Wrap 142 mm

293750002

$1.25

5

Not Available As Spare Parts

XXX

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

Engine Support | includes 7 to 8 / 500 SS

512059841

Unavailable

8

Rubber Mount

512059691

$47.99

9

Hex. Flange Elastic Nut M10

233201414

$1.58

10

Flat Washer M10 | 4X4

250200014

$1.49

11

Screw M10 X 30

250000094

$24.49

12

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

13

PLATE - Call your local BRP dealership

512059840

Unavailable

14

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

15

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

16

STOPPER - Call your local BRP dealership

512059610

Unavailable

17

WASHER - Call your local BRP dealership

512059057

Unavailable

18

Hex. Jam Nut M14

232170411

$1.48

19

Carburetor Kit Tm40-b313 | 500 SS

403138779

Unavailable

20

Gemi Clamp

512059835

$11.60

21

Spark Plug NGK BR9ECS-5

512059552

$10.59

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

23

IGNITION COIL - Call your local BRP dealership | Includes 23 to 26 / 500 SS & 600 H.O.

512059564

Unavailable

24

Female Terminal Housing, 2 Circuits

515175670

$8.39

25

Female Lock, 2 Circuits

515175707

Unavailable

26

Female Terminal

278000632

$2.09

27

Plastic Clip, Spark Plug Wire

410914600

$5.61

28

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

$57.99

29

Cable Ass’y, 375 mm

512059696

$80.99

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Tie-Rap 180 mm

414115200

$0.11

32

Hex. Screw M6 X 60

207066044

$0.67

33

Flat Washer 6 mm

234061410

$1.36

34

Elastic Stop Nut M6

232561414

$0.55

35

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

36

Spacer

517203200

$16.18

37

Starter Grip

572084400

$14.83

38

Not Available As Spare Parts

XXX

Unavailable

39

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

40

TUBE - Call your local BRP dealership

512059536

Unavailable
