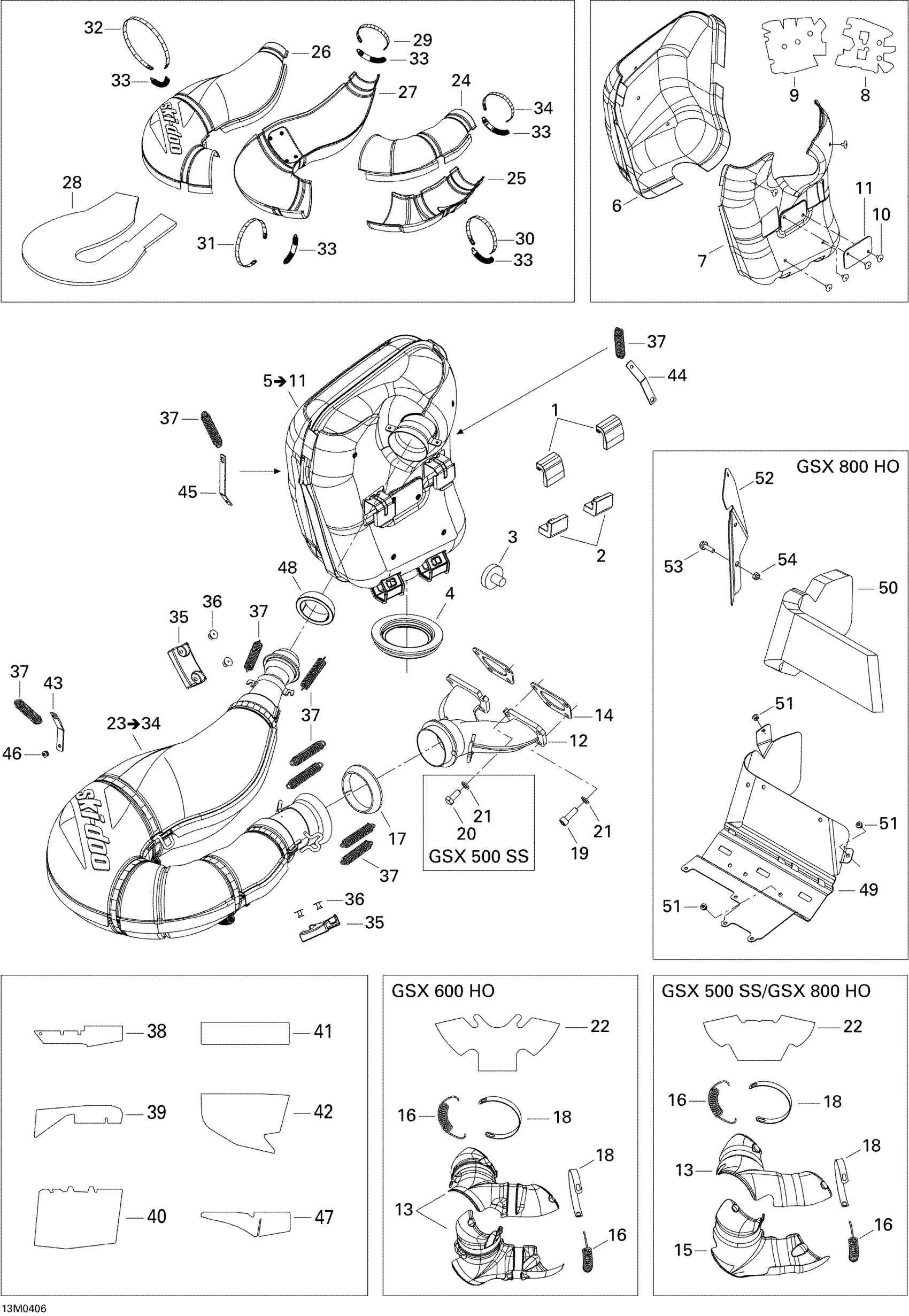

Ski-Doo GSX 500SS, 2004 01- Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

Lower Stopper

514053373

Unavailable

3

Rubber Bumper

514053654

$50.99

4

Exhaust Grommet

514053394

Unavailable

5

Muffler Ass'y | 500 SS, Includes 5 To 11

514053726

Unavailable

Muffler Ass'y | 600 HO, Includes 5 To 11

514053729

Unavailable

Muffler Ass'y | 800 HO, Includes 5 To 11

514053746

Unavailable

6

RH Heat Shield

514053563

Unavailable

7

LH Heat Shield

514053585

Unavailable

8

LH INSULATING WOOL - Call your local BRP dealership

514053590

Unavailable

9

RH INSULATING WOOL - Call your local BRP dealership

514053589

Unavailable

10

Pop Rivet 3/16”

390910000

$0.57

11

Reinforcement

514053429

Unavailable

12

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

Exhaust Manifold

420673131

$289.99

EXHAUST MANIFOLD - Call your local BRP dealership

420973713

Unavailable

13

Enveloppe, Exhaust Manifold

514053593

Unavailable

UPPER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership

514053831

Unavailable

14

Gasket

420850552

$8.85

Gasket

420931610

$11.65

Gasket

420931850

$12.17

15

LOWER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership

514053830

Unavailable

16

Spring

514053643

$6.35

17

Exhaust Gasket

514053487

$26.49

18

RETAINING STRAP - Call your local BRP dealership

514053603

Unavailable

19

Socket Head Screw M6 X 20

205062044

$1.26

Socket Head Screw M8 X 25

205082544

$1.15

20

Hex. Screw M8 X 20

207182044

$0.74

21

Lock Washer M6, Black

234161471

$0.53

Washer

514053837

$4.44

22

Insulating Wool

514053284

Unavailable

INSULATING WOOL - Call your local BRP dealership

514053588

Unavailable

23

Tuned Pipe Ass'y | Includes 23 to 34

514053732

Unavailable

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 23 to 34

514053735

Unavailable

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 23 to 34

514053749

Unavailable

24

Upper Front Half Envelope

514053609

Unavailable

25

Lower Front Half Envelope

514053610

Unavailable

26

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

27

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

Unavailable

28

INSULATING WOOL - Call your local BRP dealership

514053584

Unavailable

29

RETAINING STRAP - Call your local BRP dealership

514053437

Unavailable

30

RETAINING STRAP - Call your local BRP dealership

514053500

Unavailable

31

RETAINING STRAP - Call your local BRP dealership

514053534

Unavailable

32

RETAINING STRAP - Call your local BRP dealership

514053535

Unavailable

33

Spring

514053643

$6.35

34

Retaining Strap

514053536

$15.22

35

BUMPER - Call your local BRP dealership

514053352

Unavailable

36

Pop Rivet 3/16"

293150103

$0.55

37

Spring

415107100

$6.35

38

REFLECTIVE SHEET - Call your local BRP dealership

514053560

Unavailable

39

Reflective Sheet

514053622

Unavailable

40

Reflective Sheet

514053561

Unavailable

41

Reflective Sheet

514053392

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

514053562

Unavailable

43

SPRING BRACKET - Call your local BRP dealership

514049700

Unavailable

44

SPRING BRACKET - Call your local BRP dealership

514053725

Unavailable

45

Spring Bracket

514053393

$14.16

46

Pop Rivet 3/16"

390402200

$0.35

47

REFLECTIVE SHEET - Call your local BRP dealership

514053673

Unavailable

48

Exhaust Gasket

514053812

$25.99

49

Acoustic Plate | GSX 800 HO

514053872

Unavailable

50

Acoustic Foam

514053875

Unavailable

51

Pop Rivet 3/16"

390402200

$0.35

52

HEAT DEFLECTOR - Call your local BRP dealership

514053876

Unavailable

53

Hex. Flange Screw M6 X 20

207662044

$2.00

54

Elastic Stop Nut M6

232561414

$0.55
