Description

Price

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

2

Ball Bearing

420832596

$97.49

3

Ball Bearing 6206

420832590

$48.49

4

Oil Seal

420931795

$17.63

5

Lock Washer, 22 mm

420945759

$1.90

6

Hex. Nut, M22 X 1.5

420842239

$17.53

7

Ball Bearing 6207 | With drive pin

420832575

$52.99

8

Oil Seal This part replaces 290831952.

420831952

$18.01

9

Woodruff Key

420246015

$3.17

10

Ball Bearing Sealed, 6207

420832673

$101.49

11

Retaining Disk

420927710

$7.41

12

Needle Bearing

420832445

$27.49

13

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

14

Semi-Trapez Ring, Standard

420815155

$51.99

Semi-Trapez Ring, 1st

420815156

$51.99

15

Piston Pin

420916412

$30.99

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6206

420832590

$48.49

18

Oil Seal | Included in gasket kit

420931940

$30.49

19

Central Gear, 15 Teeth

420834350

$104.99

20

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

21

Crankshaft This part replaces 420818693.

420818697

$255.49

22

Rod Repair Kit, MAG Side

420890973

$313.99

Rod Repair Kit, PTO Side

420890974

$313.99

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

Dow Corning 111, 150 g

413707000

$59.99

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

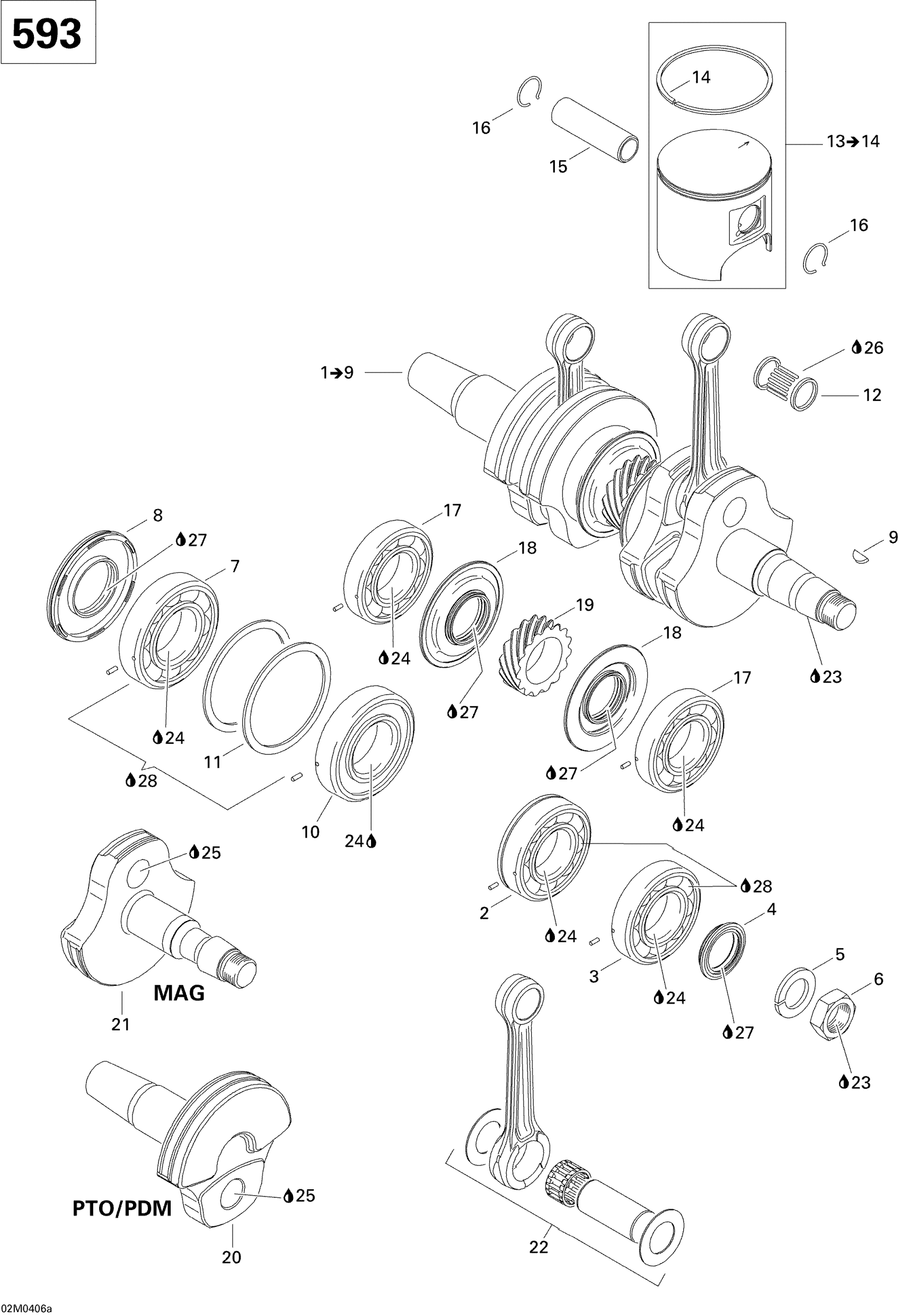

Ski-Doo GSX 500SS, 2004 01- Crankshaft And Pistons (593) Diagram

Crankshaft Ass'y | Includes 1 to 9

Ball Bearing

Ball Bearing 6206

Oil Seal

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Ball Bearing 6207 | With drive pin

Oil Seal This part replaces 290831952.

Woodruff Key

Ball Bearing Sealed, 6207

Retaining Disk

Needle Bearing

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

Semi-Trapez Ring, Standard

Semi-Trapez Ring, 1st

Piston Pin

Piston Circlip

Ball Bearing 6206

Oil Seal | Included in gasket kit

Central Gear, 15 Teeth

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

Crankshaft This part replaces 420818693.

Rod Repair Kit, MAG Side

Rod Repair Kit, PTO Side

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

Dow Corning 111, 150 g

Petamo Grease, GHY133N, 400 g

Isoflex Grease, TOPAS NB52, 50 g
