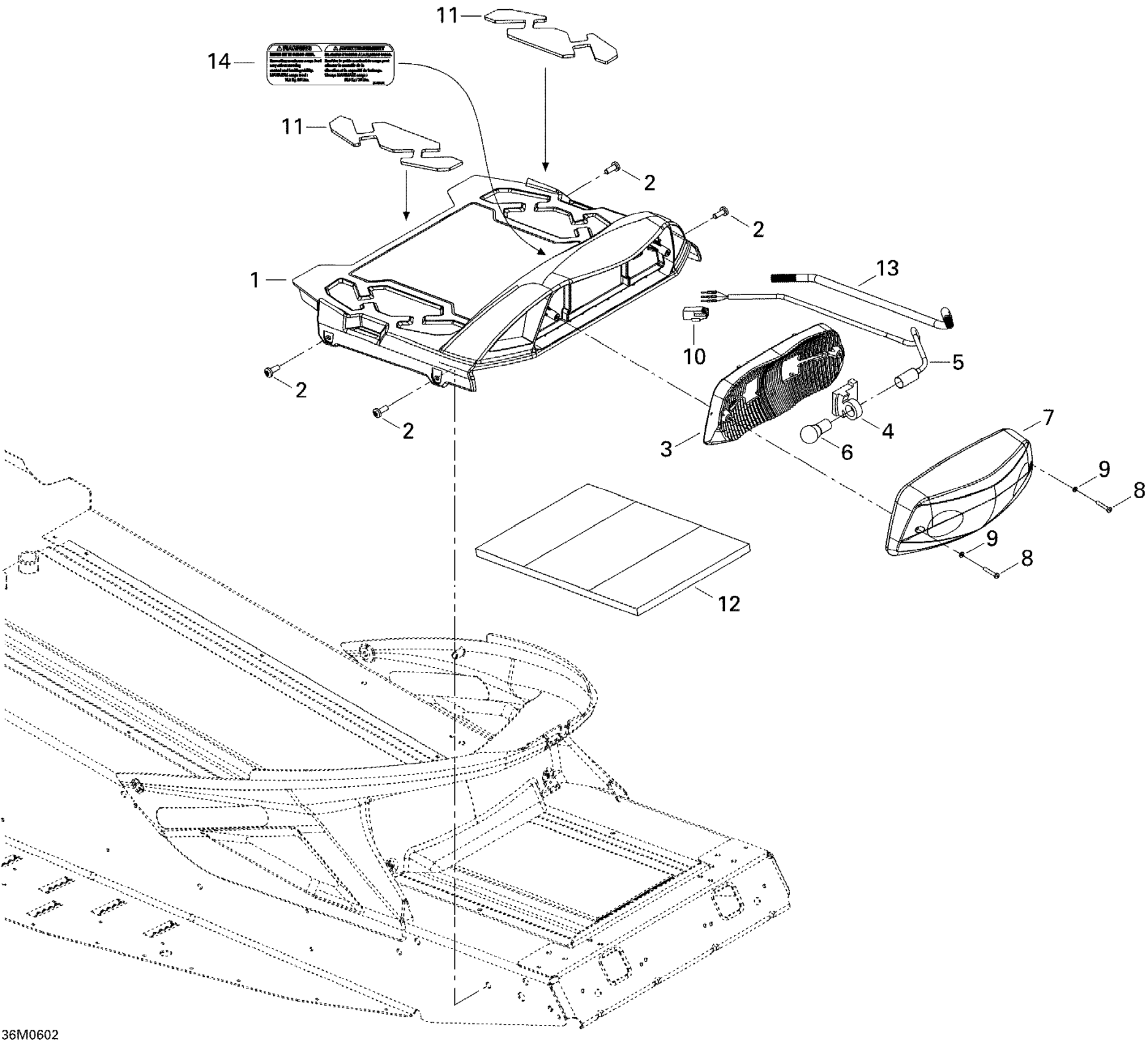

Ski-Doo GSX 380F, 2006 Luggage Rack GSX Diagram

#

Description
Price

1

LUGGAGE RACK - Call your local BRP dealership

511000434

Unavailable

2

Torx Truss Screw M6 X 16

250000721

$1.60

3

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

4

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

5

Bulb Socket

511000465

Unavailable

6

Bulb

520000758

$8.60

7

Lens

511000315

$33.55

8

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

9

Washer - Call your local BRP dealership

414516400

Unavailable

10

Male Housing, 3 Circuits

515175494

$14.90

11

REAR CARPET - Call your local BRP dealership

520000481

Unavailable

12

RADIATOR COVER SHIM 121 - Call your local BRP dealership

511000359

Unavailable

13

Tubing 6 Mm 3000Mm Long

219704425

$12.75

14

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable
