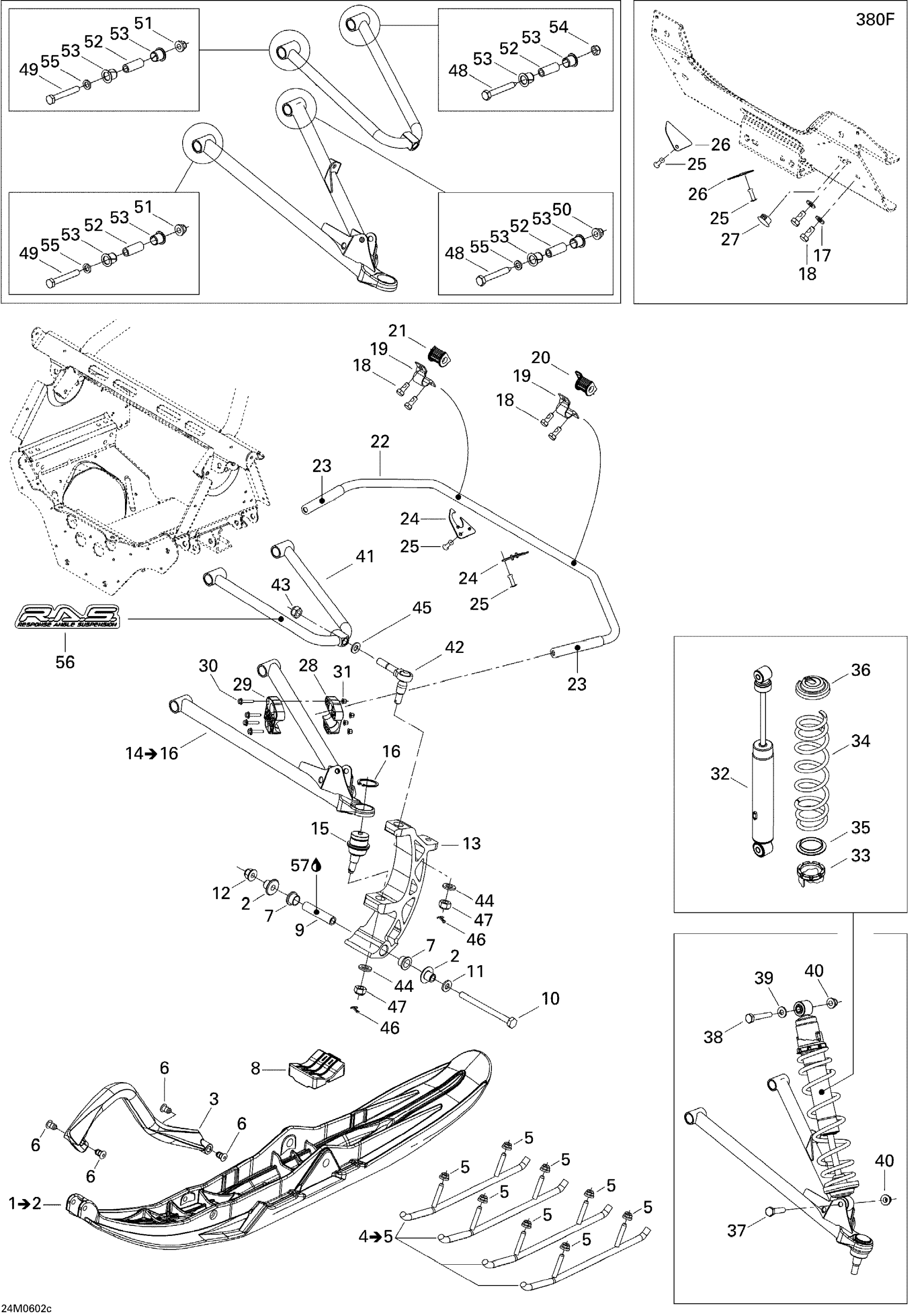

Ski-Doo GSX 380F, 2006 07- Front Suspension And Ski GSX 380F Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

1

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

2

Ski Bushing

505071781

$16.18

3

Black, Handle

505070963

$35.99

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$92.99

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Retainer 17mm long

505071812

$5.95

7

Leg Bushing

505072690

$12.49

8

Ski Stopper

505071779

$18.78

9

Spacer

506133300

$23.99

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Washer

732900049

$0.58

12

Flange Nut M10

732610084

$6.79

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

Unavailable

15

Ball Joint

505073636

$51.99

16

Circlip

293370035

$2.64

17

Flat Washer 8 mm

234081410

$0.83

18

Hex. Screw With Nylon

250000118

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Pop Rivet 3/16"

293150103

$0.55

26

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

27

CAP - Call your local BRP dealership

572072100

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

FRONT SHOCK - Call your local BRP dealership

505071662

Unavailable

33

Adjustment Cam

505073625

$12.99

34

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

35

Spring Guide

503187500

$10.49

36

Spring Stopper

706200881

$12.99

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

39

Washer

503189564

$0.74

40

Hex. Flange Elastic Nut M10

233201414

$1.58

41

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

42

Upper Ball Joint

505072257

$17.58

43

Hex. Flange Elastic Nut M12

250000047

$1.90

44

Flat Washer 12 mm

234021410

$0.72

45

Washer

503189276

$3.28

46

Cotter Pin

211400017

$0.33

47

Hex. Flange Elastic Nut M12

250000047

$1.90

48

Hex. Screw M10 X 75

250001063

$13.16

49

Hex. Screw M10 X 75

250001063

$13.16

50

Hex. Flange Elastic Nut M10

250100165

$0.85

51

Hex. Flange Elastic Nut M10

250100165

$0.85

52

Bushing

505070567

$24.99

53

Arm Bushing

505070566

$3.28

54

Elastic Flange Nut M10

232501416

$1.48

55

Washer

503189564

$0.74

56

R.a.s. Suspension Decal

516002747

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
