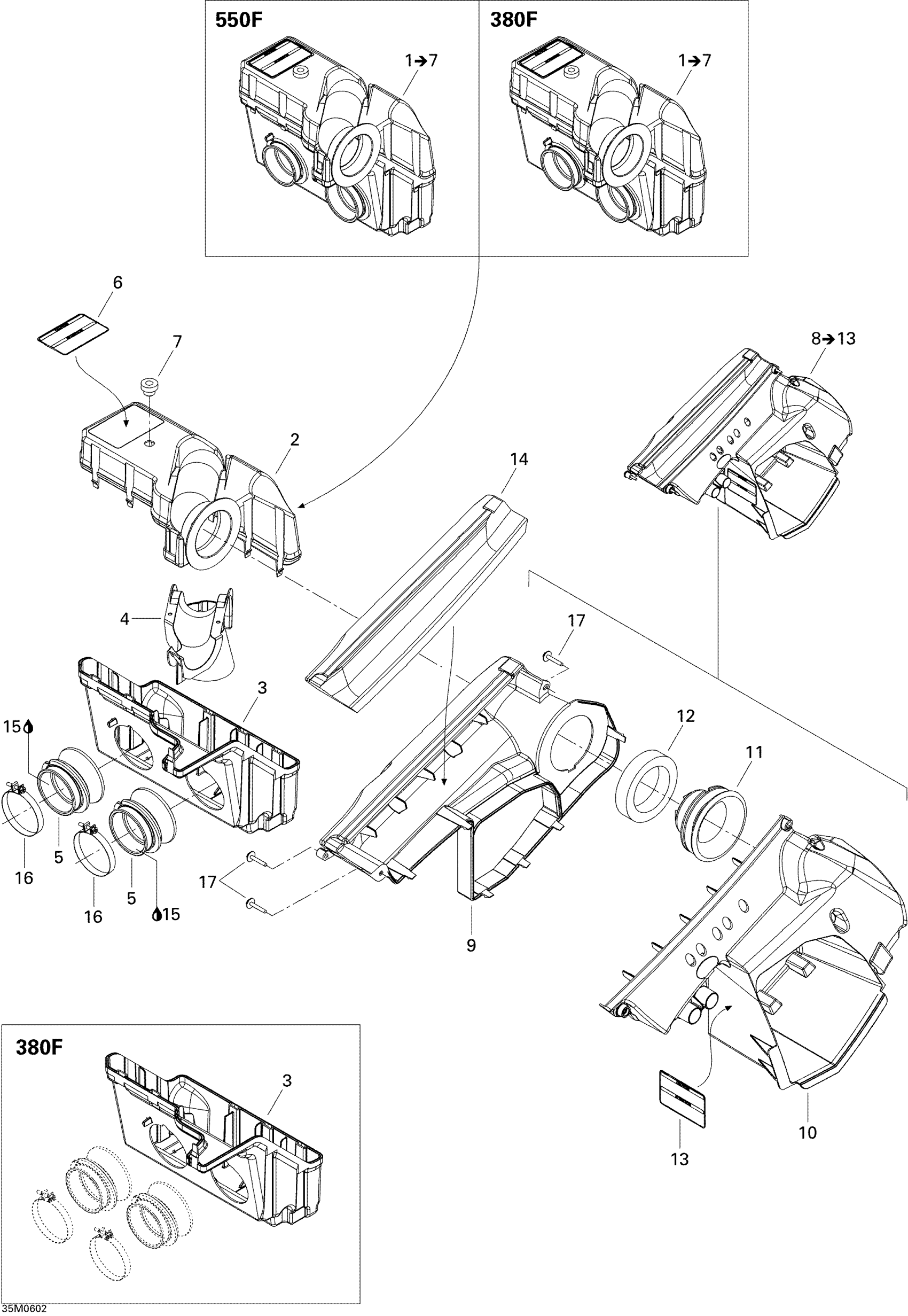

Ski-Doo GSX 380F, 2006 02- Air Intake System GSX 380F Diagram
#
Description
Price
1
Primary Chamber Ass'y | 380F, Includes 1 to 7
508000434
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
8
SECONDARY CHAMBER ASS'Y - Call your local BRP dealership | Includes 4 to 7
508000376
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
GUIDE - Call your local BRP dealership
508000240
Unavailable
12
OUTER FOAM - Call your local BRP dealership
508000199
Unavailable
13
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
15
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
16
GEMI CLAMP - Call your local BRP dealership
508000344
Unavailable
