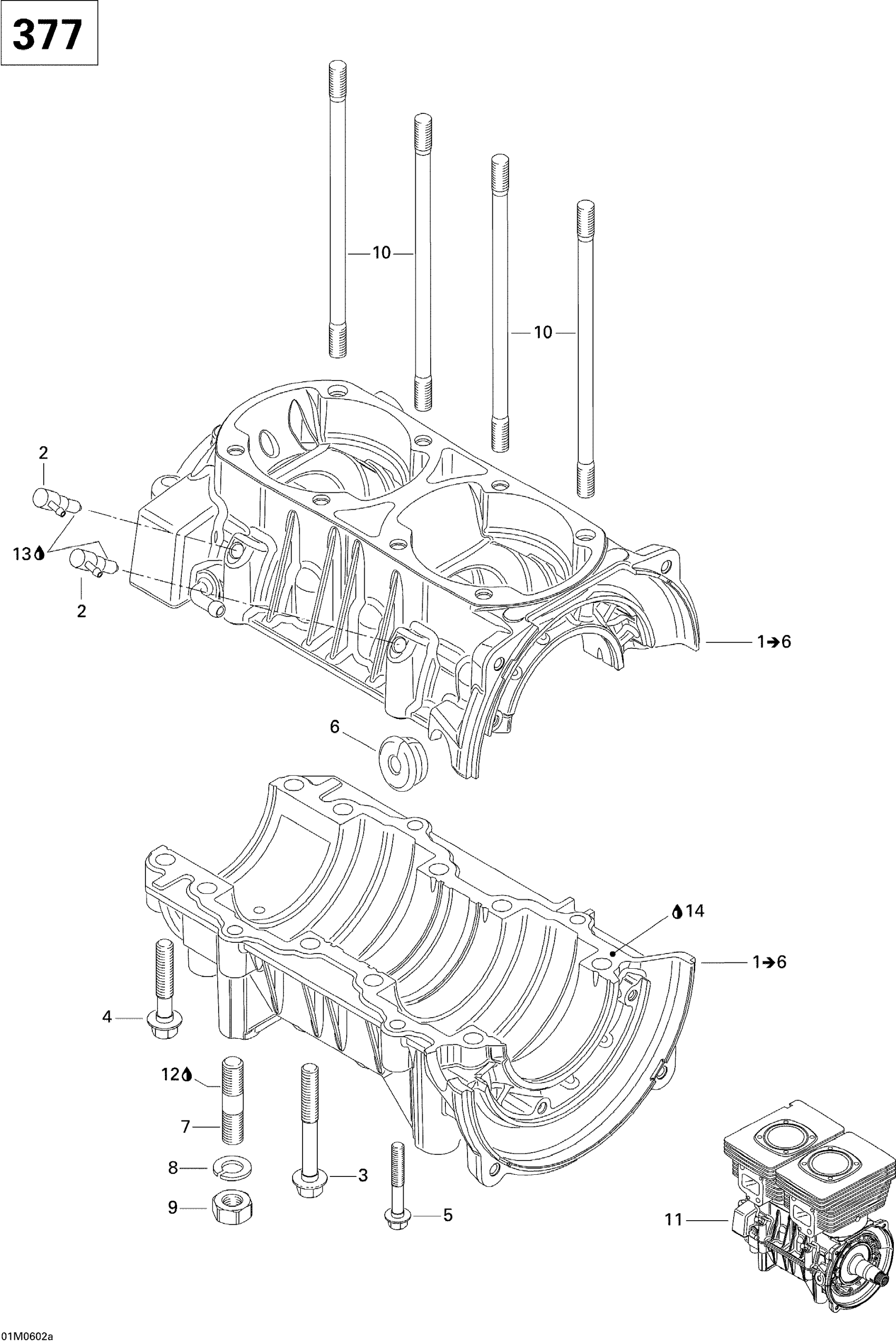

Ski-Doo GSX 380F, 2006 01- Crankcase GSX (377) Diagram

Crankcase Ass'y | Includes 1 to 6

420888488

Unavailable

Check Valve

420956511

$35.99

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

Hex. Collar Screw M8 x 45

420640432

$8.57

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

Cable Grommet

420860962

$13.16

Stud M10 X 29/20

420940190

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

STUD M8 X 167 - Call your local BRP dealership

420841149

Unavailable

Shock Block 377

420037706

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Sealant Loctite 648

219703000

$45.99

Loctite 5910, 300 ml

293800081

$57.99
