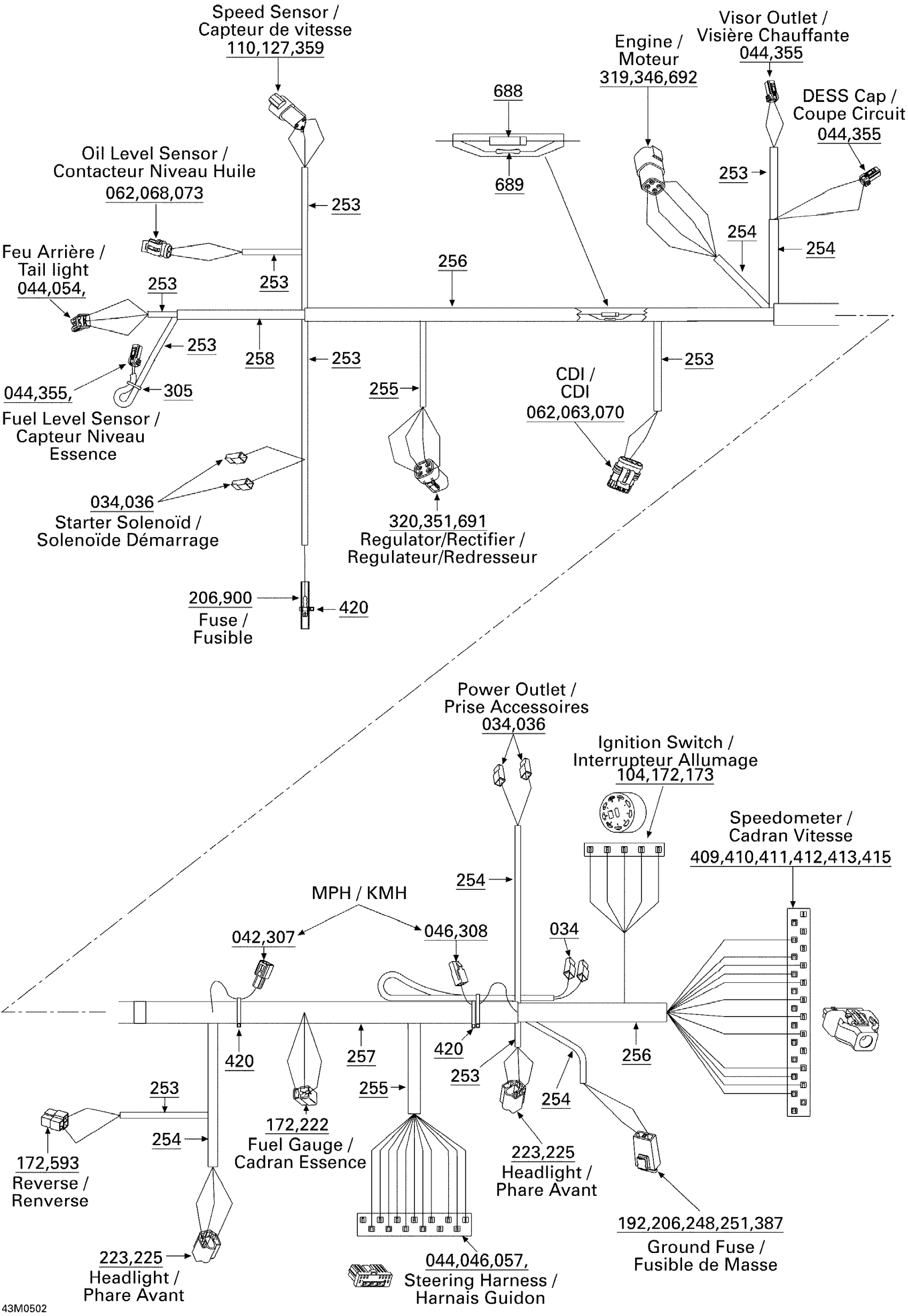

Ski-Doo GSX 380F, 2005 10- Electrical Harness GSX Diagram

#

Description
Price

1

Frame Wiring Harness Ass'y | Includes 1 To 900

515176064

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

57

Female Terminal Housing, 13 Circuits

515175350

$14.24

62

Female Terminal

278001014

$3.28

68

Female Housing, 2 Circuits

409209500

$15.27

70

Female Housing, 4 Circuits

409209700

$16.18

73

Wire Seal

278001013

$3.28

74

Not Available As Spare Part - Friction Washer

Unavailable

104

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

127

Male Lock, 3 Circuits

409207600

$3.19

168

Deutsch Joint Housing

515175259

Unavailable

172

Female Terminal

561503100

$2.41

173

Female Terminal

561503100

$2.41

192

Fuse, 20 Amperes

409003900

$3.28

196

Tie Wrap 142 mm

293750002

$1.25

206

Female Terminal

409004200

$4.55

222

Female Housing

409204300

Unavailable

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

224

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$8.09

251

CLIP - Call your local BRP dealership

409014200

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

302

Tie Wrap 94 mm | 4X4

293750001

$1.03

304

Ring Terminal

515175504

$9.12

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

319

Male Terminal

515175568

$9.12

320

Female Terminal

515175567

$7.69

341

Not Available As Spare Part - Friction Washer

Unavailable

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

351

Female Lock, 4 Circuits

278001474

$3.49

355

Female Housing, 2 Circuits

515175658

$16.18

359

Male Housing

515175666

$15.49

372

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

382

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

688

CAPACITOR - Call your local BRP dealership

515176279

Unavailable

689

RESISTANCE - Call your local BRP dealership

515176280

Unavailable

691

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

278002027

Unavailable

692

Female Terminal Housing, 4 Circuits

278002028

Unavailable

900

Hose

415079200

Unavailable
