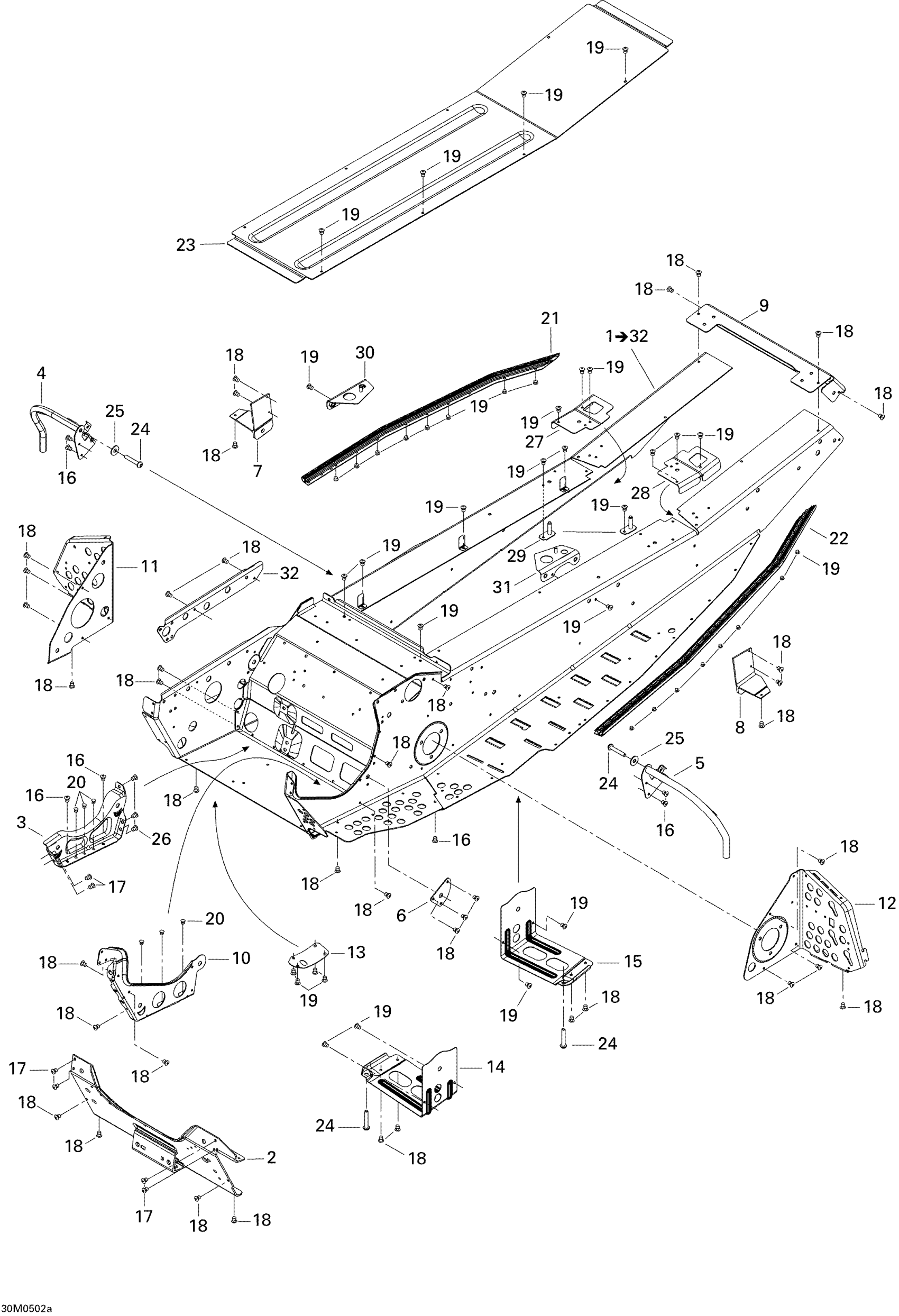

Ski-Doo GSX 380F, 2005 09- Frame Diagram
#
Description
Price
1
Frame | Includes 1 to 32
415128918
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
4
RH TOE HOLD SUPPORT - Call your local BRP dealership
518324162
Unavailable
5
LH TOE HOLD SUPPORT - Call your local BRP dealership
518324163
Unavailable
6
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
7
RH Slide Bracket
518323572
Unavailable
8
LH SLIDE BRACKET - Call your local BRP dealership
518323573
Unavailable
9
Rear Cap
518324279
Unavailable
10
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
11
RH Footrest Reinforcement
518323805
Unavailable
12
LH FOOTREST REINFORCEMENT - Call your local BRP dealership
518324527
Unavailable
13
PLATE - Call your local BRP dealership
518324169
Unavailable
14
RH Reinforcement, Black
518323753
Unavailable
15
LH Reinforcement, Black
518323754
Unavailable
20
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
21
RH Roller
518323551
Unavailable
22
LH Roller
518323552
Unavailable
23
Center Plate
518324088
Unavailable
24
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter
205982086
Unavailable
27
RH FRAME REINFORCEMENT - Call your local BRP dealership
518324431
Unavailable
28
LH FRAME REINFORCEMENT - Call your local BRP dealership
518324432
Unavailable
29
Tank Bracket
518322791
Unavailable
30
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324385
Unavailable
31
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324386
Unavailable
32
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
