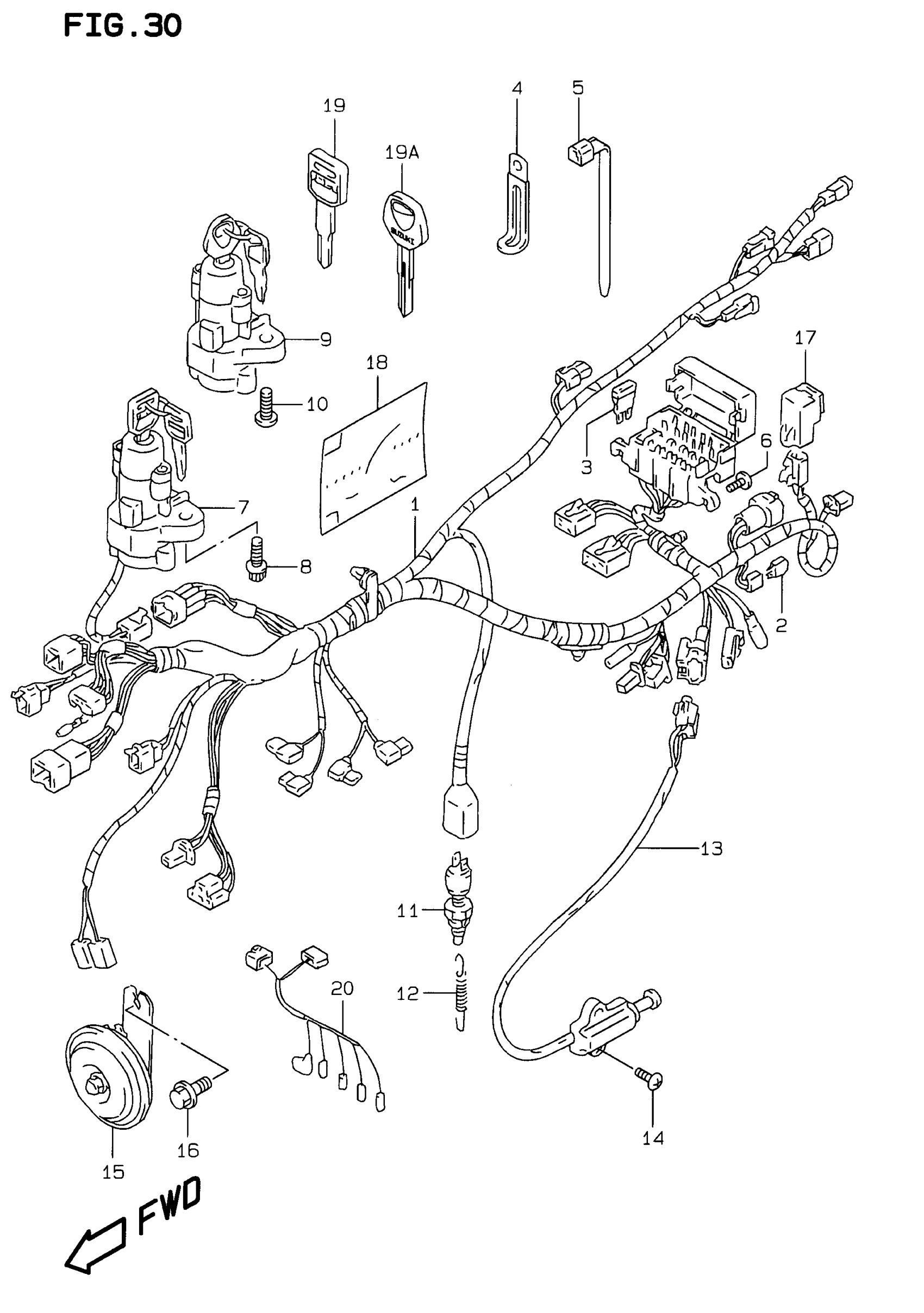

Suzuki GSF600S-BANDIT (1999) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL T

36610-26E20

Unavailable

1

HARNESS, WIRING | MODEL V/W/X; Includes Item(s) 2 - 3

36610-26E40

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

FUSE (10A)

09481-10101

$2.07

3

FUSE (15A)

09481-15101

$2.53

4

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

4

CLAMP

09404-06429

$1.83

5

CLAMP (L:95)

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

6

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

7

SWITCH ASSY, IGNITION | MODEL T This part replaces 37100-18E01.

37100-46E21

Unavailable

8

BOLT, STEERING LOCK (8X20) | MODEL T This part replaces 09119-08082.

37152-17K00

$3.68

9

LOCK ASSY, STEERING | MODEL V/W/X

37100-33E01

Unavailable

10

SCREW | MODEL V/W/X

09139-08016

$3.37

11

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

12

SPRING

09443-06054

$3.85

13

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

15

HORN ASSY | MODEL T This part replaces 38502-21E00.

38502-21E02

Unavailable

15

HORN ASSY | MODEL V This part replaces 38502-21E01.

38502-21E02

Unavailable

15

HORN ASSY | MODEL W/X

38502-21E02

Unavailable

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

17

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

18

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

19

KEY, BLANK | OPT This part replaces 37146-46E00.

37146-33E00

$21.21

19A

KEY, BLANK | OPT

37146-33E00

$21.21

20

WIRE, CARB HEATER | OPT

36856-21E00

Unavailable
