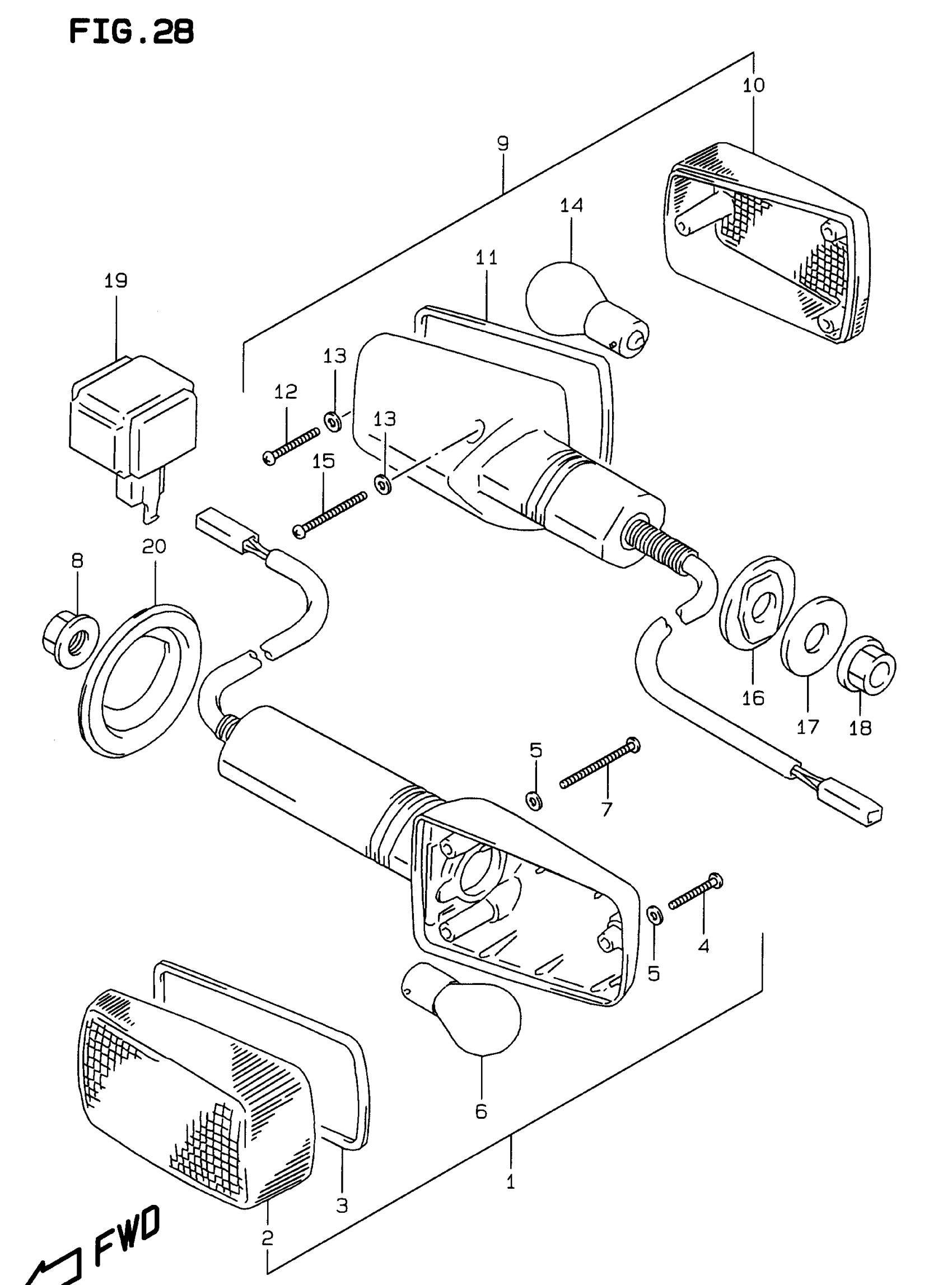

Suzuki GSF600S-BANDIT (1999) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL T This part replaces 35601-29EA0.

35601-29EC0

$110.10

1

LAMP ASSY, FRONT TURN | MODEL V/W/X; Includes Item(s) 2 - 7

35601-29EC0

$110.10

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

SCREW

35725-40511

$1.91

5

GASKET

35627-27A02

$1.58

6

BULB (12V,21W)

09471-12045

$3.27

7

SCREW

35623-27A00

$1.65

8

NUT This part replaces 08316-10103.

08316-1010B

$2.66

9

LAMP ASSY, REAR TURN | Includes Item(s) 10 - 15

35603-21E30

$130.27

10

LENS

35652-17C20

$10.28

11

GASKET

35613-27A00

$4.52

12

SCREW

35725-40511

$1.91

13

GASKET

35627-27A02

$1.58

14

BULB (12V,21W)

09471-12045

$3.27

15

SCREW

35623-27A00

$1.65

16

SPACER

35695-17C00

$4.03

17

WASHER (10.5X30X2.3)

09160-10501

$2.33

18

NUT This part replaces 08310-00103.

08310-0010A

$1.84

19

RELAY, TURN SIGNAL | MODEL T/V

38610-45D01

$78.73

19

RELAY ASSY | MODEL W/X This part replaces 38610-26E00.

38610-26E01

$58.97

20

GROMMET, FRONT TURNSIGNAL

35674-27A01

$9.58
