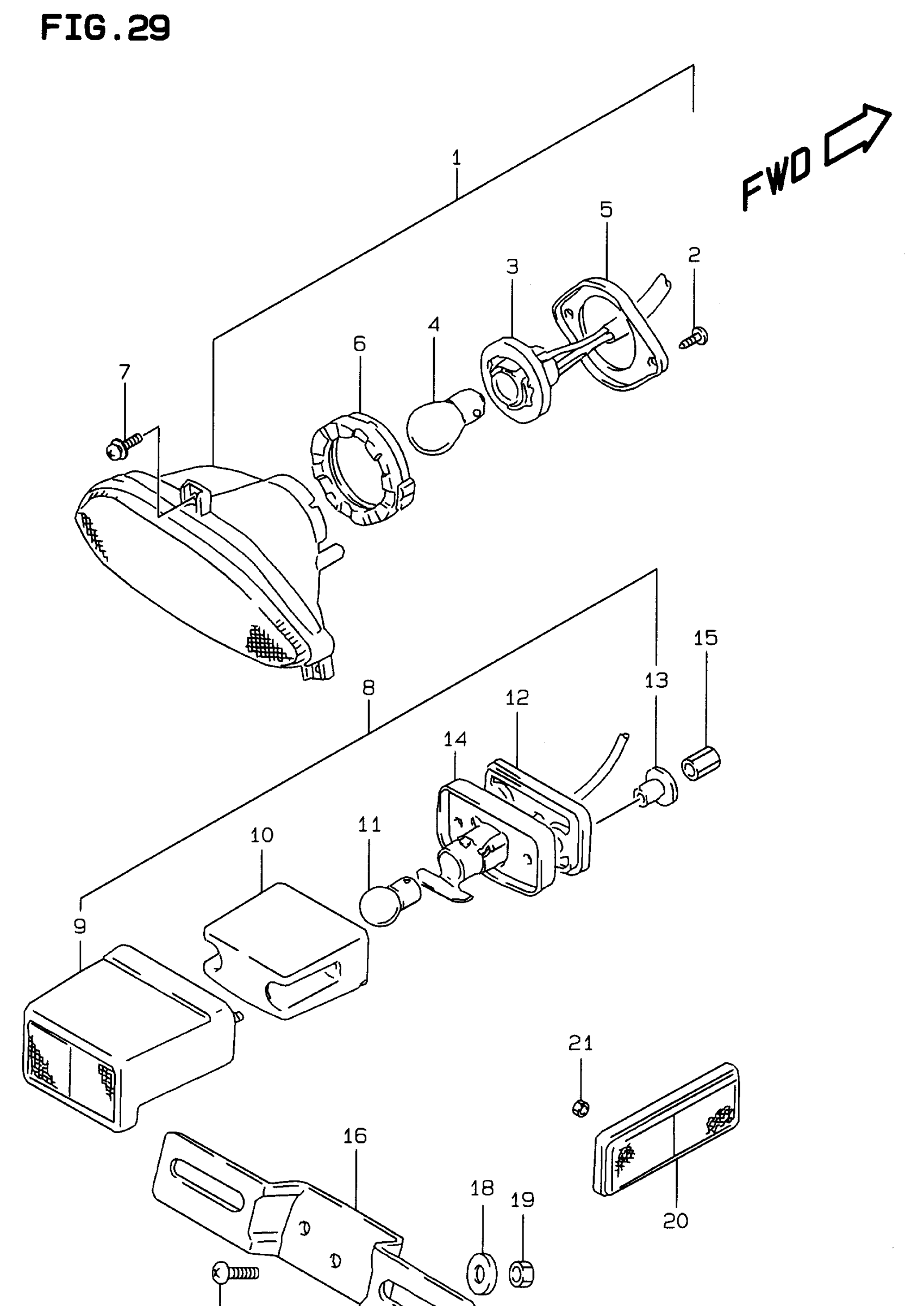

Suzuki GSF600S-BANDIT (1999) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 6

35710-26E30

Unavailable

2

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

3

SOCKET & CORD This part replaces 35718-26E00.

35718-08F00

$37.23

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

PLATE

35736-48B21

$21.92

6

CUSHION

35765-48B21

$12.97

7

SCREW This part replaces 03511-14123.

03511-1412B

$2.93

8

LAMP ASSY, LICENSE | Includes Item(s) 9 - 14

35910-26E30

Unavailable

9

COVER, LENS

35917-17C00

$77.50

10

LENS

35912-38A30

$20.45

11

BULB (12V,5W) | MODEL T/V

09471-12058

$2.33

11

BULB (12V5W) | MODEL W/X This part replaces 09471-12140.

09471-12058

$2.33

12

CUSHION

35761-24B31

Unavailable

13

SPACER

35766-24B30

$3.37

14

GASKET

35913-38A30

$3.37

15

NUT

09140-04006

$4.86

16

BRACKET,LICENSE PLATE

35927-26E30

$14.20

17

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

18

.WASHER (6.5X20X1.6)

09160-06088

$1.65

19

NUT This part replaces 08310-00063.

08310-0006A

$1.84

19A

CUSHION, LICENSE PLATE

09321-06032

Unavailable

20

REFLECTOR, REAR SIDE

35970-24D60

$25.98

21

NUT This part replaces 08310-00053.

08310-0005A

$1.84
