1999 Suzuki GSF600S-Bandit Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1999 Suzuki GSF600S-Bandit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

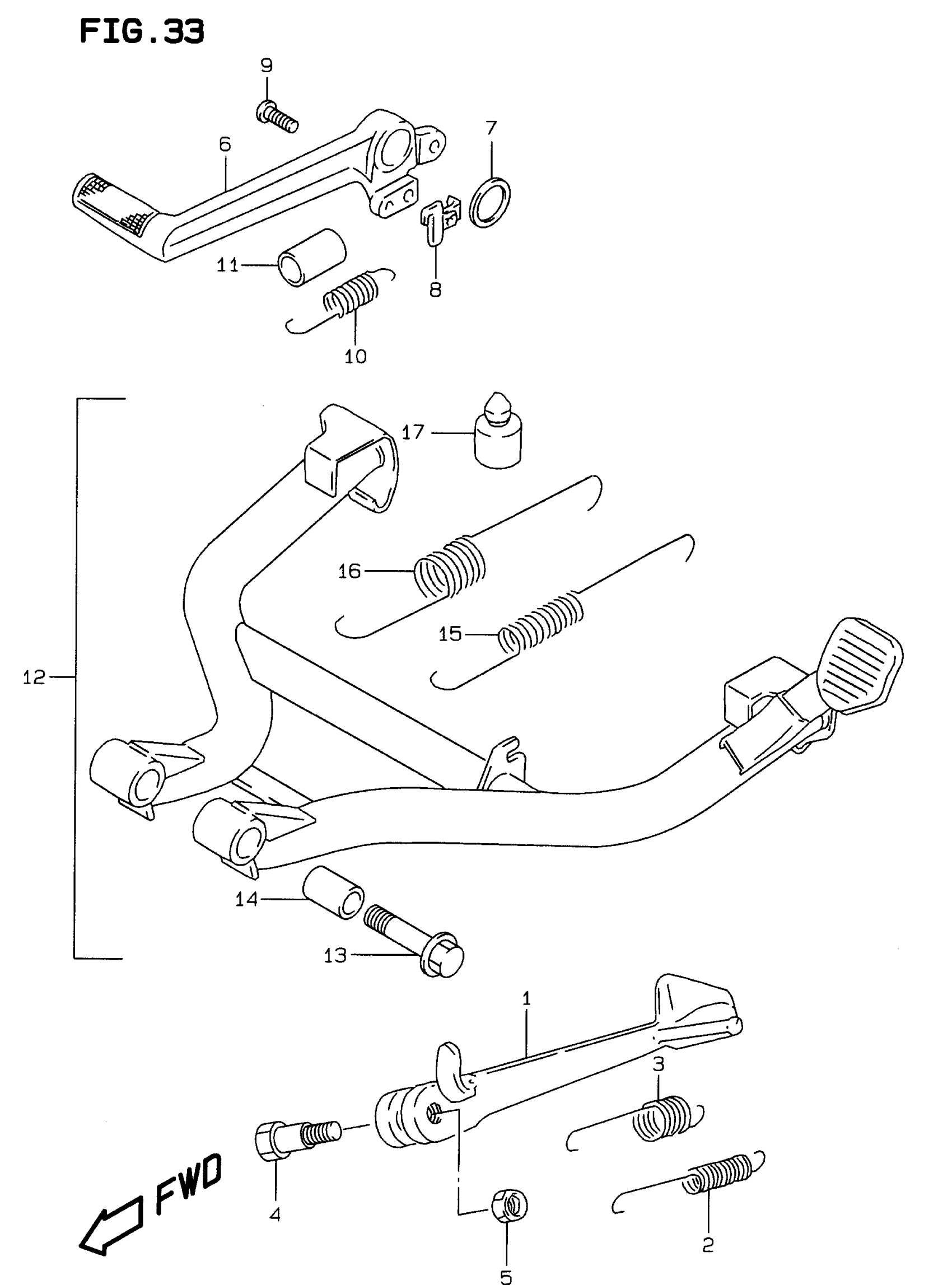

1999 Suzuki GSF600S-Bandit Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | MODEL T/V/W

42310-27E01

1
Out of stock

1

STAND, PROP | MODEL X

42310-26E10

1
Out of stock

2

SPRING, INNER

09443-12036

1

$7.60

In stock

3

SPRING, OUTER

09443-19010

1

$6.41

In stock

4

BOLT

09111-10027

1
Out of stock

5

NUT | MODEL T/V

09159-10027

1
Out of stock

6

PEDAL, BRAKE

43111-31E01

1
Out of stock

7

WASHER

09160-18022

1
Out of stock

8

BRACKET, STOP SWITCH

43560-32C00

1

$6.40

In stock

9

.SCREW This part replaces 02112-05163.

02112-0516A

1
Out of stock

10

SPRING

09443-13029

1
Out of stock

11

TUBE, SPRING GUIDE

43261-17C00

1
Out of stock

12

STAND SET, CENTER | MODEL T This part replaces 42100-26820.

42100-26822

1
Out of stock

12

STAND SET, CENTER | MODEL V This part replaces 42100-26821.

42100-26822

1
Out of stock

12

STAND SET, CENTER | MODEL W/X; Includes Item(s) 13 - 17

42100-26822

1
Out of stock

13

BOLT

09103-10126

2
Out of stock

14

SPACER

09180-10113

2
Out of stock

15

SPRING, INNER

09443-14059

1
Out of stock

16

SPRING, OUTER

09443-22013

1
Out of stock

17

CUSHION

09321-10017

1
Out of stock
