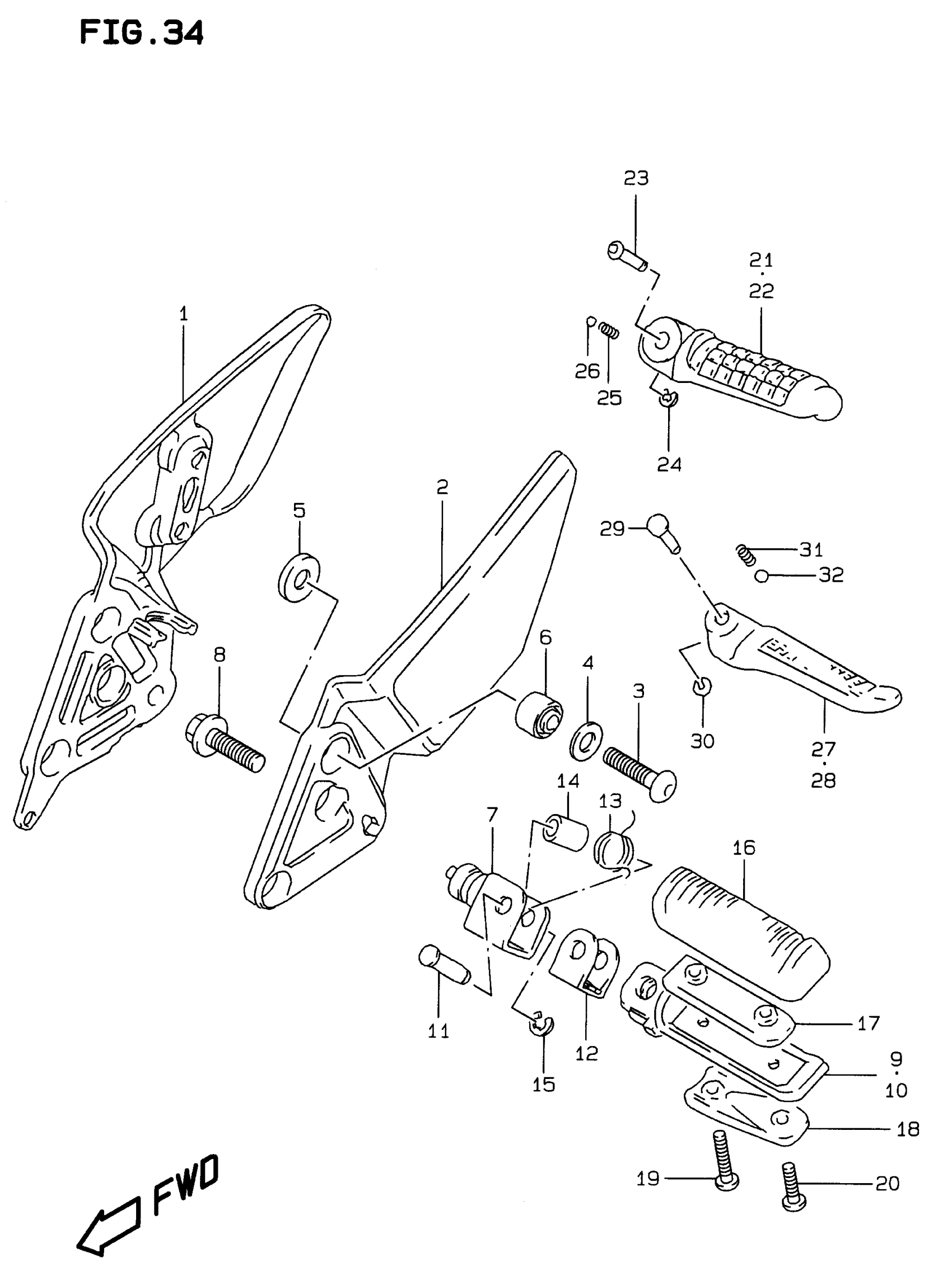

Suzuki GSF600S-BANDIT (1999) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH | MODEL T This part replaces 43511-26E00.

43510-27820

Unavailable

1

BRACKET, FRONT FOOTREST RH | MODEL V This part replaces 43511-26E01.

43510-27820

Unavailable

1

BRACKET, FRONT FOOTREST RH | MODEL W/X This part replaces 43511-27E50.

43510-27820

Unavailable

2

BRACKET, FRONT FOOTREST LH | MODEL T/V This part replaces 43521-26E00.

43520-27820

Unavailable

2

BRACKET, FRONT FOOTREST LH | MODEL W/X This part replaces 43521-27E50.

43520-27820

Unavailable

3

BOLT, FRONT FOOTREST

09106-08134

$3.36

4

WASHER This part replaces 09160-08131.

09160-08130

$2.01

5

WASHER

09161-12009

$4.70

6

BUSH

09319-08036

$27.28

7

HOLDER, BAR

43530-27E00

$108.08

8

BOLT, HOLDER

09106-10064

$4.42

9

BAR, RH

43511-40C00

$72.12

10

BAR, LH

43521-40C00

$72.12

11

PIN

09208-08010

$2.80

12

CUSHION,FRONT F This part replaces 43570-46E20.

43570-46E21

$20.58

13

SPRING

09448-18022

$3.42

14

SPACER

09180-08149

$5.10

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

16

RUBBER

43550-46E00

$36.30

17

BALANCER, UPPER

43534-46E00

Unavailable

18

BALANCER, LOWER

43536-31E01

$40.45

19

SCREW, INNER This part replaces 02142-05303.

02142-0530B

$2.92

20

SCREW This part replaces 02142-05253.

02142-0525B

$2.95

21

BAR, PILLION RH | MODEL T

43610-23E00

$85.17

22

BAR, PILLION LH | MODEL T

43710-23E00

$88.87

23

PIN | MODEL T

09208-08011

$2.80

24

CIRCLIP | MODEL T This part replaces 08332-11063.

08332-1106A

$1.43

25

SPRING

09440-05005

$1.45

26

BALL

06111-07004

$1.22

27

BAR, PILLION FOOTREST RH | MODEL V/W/X This part replaces 43611-33E00.

43611-33E11

$62.80

28

BAR, PILLION FOOTREST LH | MODEL V/W/X This part replaces 43621-33E00.

43621-33E11

$62.80

29

PIN | MODEL V/W/X

87259-85510

$4.89

30

E RING This part replaces 08332-11043.

08332-1104A

$1.37

31

SPRING

09440-05005

$1.45

32

BALL

06111-07004

$1.22
