1999 Suzuki GSF600S-Bandit Second AIR Diagram

← All diagrams

Find the part on the Second AIR diagram for your 1999 Suzuki GSF600S-Bandit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

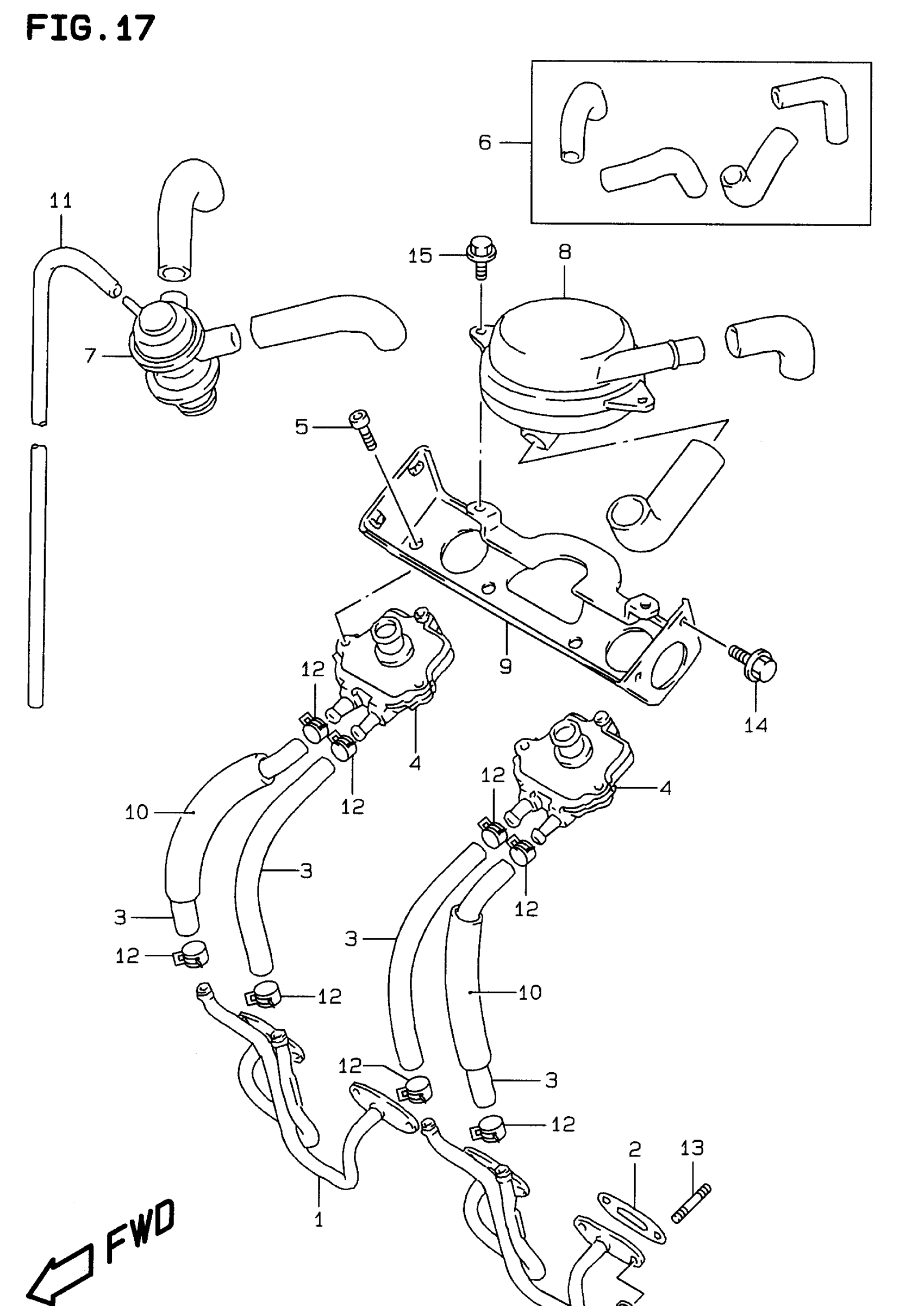

1999 Suzuki GSF600S-Bandit Second AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, 2ND AIR

18430-26D00

2
Out of stock

2

GASKET, 2ND AIR PIPE This part replaces 18441-17C10.

18441-17C11

4
Out of stock

3

HOSE, 2ND AIR REED VALVE

18445-26E00

4
Out of stock

4

VALVE ASSY, 2ND AIR REED | Includes Item(s) 5

18450-48B00

2
Out of stock

5

BOLT

07130-05167

6
Out of stock

6

HOSE SET, 2ND AIR

18420-26821

1
Out of stock

7

VALVE ASSY, 2ND AIR SWITCHING

18510-46E00

1
Out of stock

8

CLEANER ASSY, 2ND AIR

18700-17C03

1
Out of stock

9

BRACKET, 2ND AIR

18750-26E00

1
Out of stock

10

PROTECTOR, REED VALVE HOSE

44311-26E00

2
Out of stock

11

HOSE(4.5X8.5X60 | MODEL T This part replaces 09354-45853-600.

09355-45001-600

1
Out of stock

11

HOSE(4.5X8.5X60 | MODEL V/W/X This part replaces 09355-45855-600.

09355-45001-600

1
Out of stock

12

CLAMP | MODEL T/V This part replaces 09401-13413.

09401-13417

8
Out of stock

12

CLIP, 2ND AIR HOSE | MODEL W/X

09401-13417

8
Out of stock

13

8

$2.05

In stock

14

BOLT This part replaces 07130-06123.

07130-0612A

4
Out of stock

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

16

NUT This part replaces 08316-10063.

08316-1006B

8
Out of stock
