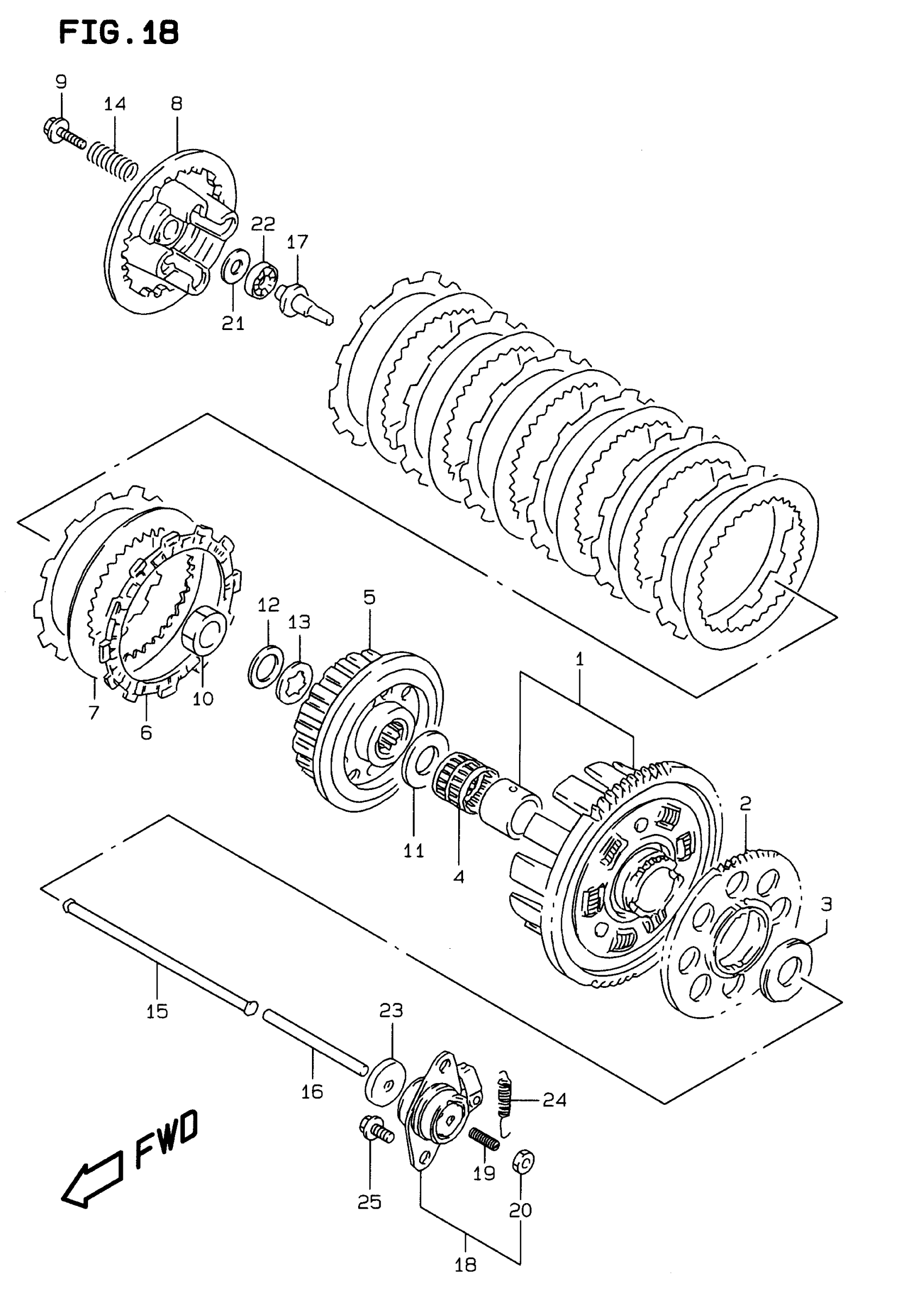

Suzuki GSF600S-BANDIT (1999) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:75) | MODEL T/V This part replaces 21200-26830.

21200-26833

$496.12

1

GEAR, PRIMARY DRIVEN (NT:75) | MODEL W/X This part replaces 21200-26832.

21200-26833

$496.12

2

GEAR, GENERATOR (NT:34/64) | MODEL T/V This part replaces 22721-17D01.

22721-17D02

Unavailable

2

GEAR, GENERATOR (NT:34/64) | MODEL W/X

22721-17D02

Unavailable

3

WASHER (25X54X2.5) | MODEL T

09160-25067

Unavailable

3

WASHER (25.1X54X2.5) | MODEL V/W/X

09160-25037

$9.62

4

BEARING (35X40X35.8)

09263-35017

$37.12

5

HUB, CLUTCH SLEEVE

21410-27A02

$156.88

6

PLATE, CLUTCH DRIVE

21441-37400

$16.59

7

PLATE, CLUTCH DRIVEN

21451-05A00

$9.26

8

DISK, CLUTCH PRESSURE

21462-27A00

$65.10

9

BOLT (6X16) | MODEL T/V

09116-06168

$2.50

9

BOLT (6X20) | MODEL W

09116-06167

$2.19

9

BOLT (6X25) | MODEL X

09116-06150

$2.61

10

NUT, CLUTCH SLEEVE HUB

09140-22008

$7.98

11

.WASHER (25X50X2.5)

09160-25056

$10.63

12

WASHER (22.2X35X2)

09164-22007

$7.98

13

WASHER (25.5X36X0.5) | MODEL T

09167-25024

Unavailable

13

WASHER (22X36X1.0) | MODEL V/W/X

09181-22251

$4.12

14

SPRING, CLUTCH

09440-20020

$8.90

15

ROD, CLUTCH PUSH,RH

23110-20C00

$27.55

16

ROD, CLUTCH PUSH,LH

23111-08A00

$18.33

17

PIECE, CLUTCH PUSH

23121-27A00

Unavailable

18

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 19 - 20

23200-31300

Unavailable

19

SCREW (6X25)

09134-06010

$2.81

20

.NUT

08310-00067

$1.83

21

WASHER (15.5X28X1)

09160-15045

$3.52

22

BEARING, CLUTCH (15X28X2)

09263-15003

$7.49

23

SEAL, CLUTCH (6X34X5.5)

09285-06015

$7.20

24

SPRING, CLUTCH RETURN

09443-07038

$2.80

25

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
