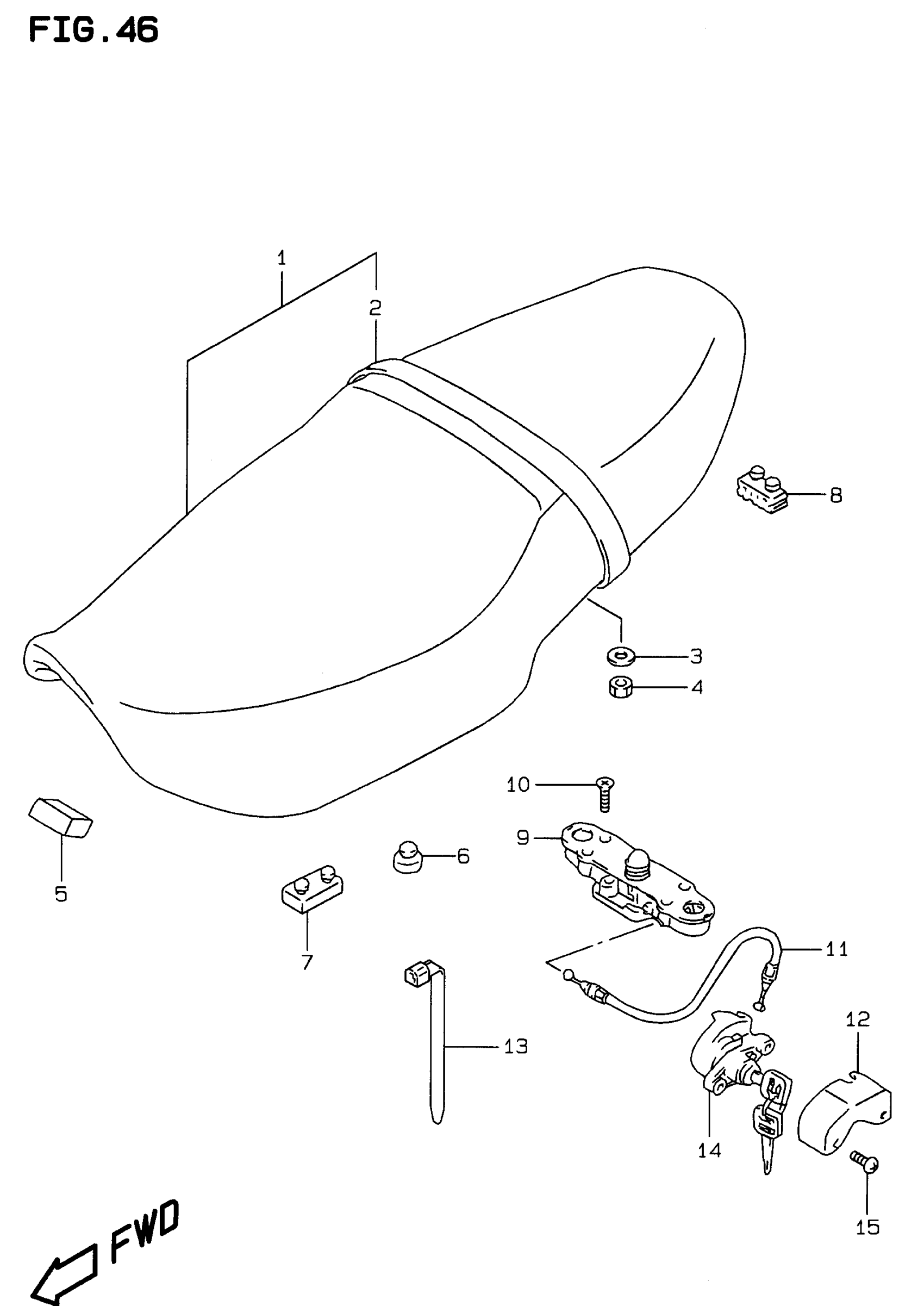

Suzuki GSF600S-BANDIT (1999) SEAT (SEE NOTE) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 8 This part replaces 45100-26E00-P21.

45100-26E04-P21

Unavailable

2

BAND, SEAT (BLACK) This part replaces 45180-26E00-P21.

45180-26E01-P21

Unavailable

3

WASHER

08212-06201

$1.67

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

CUSHION

45255-15510

Unavailable

6

CUSHION

09321-10012

$2.92

7

CUSHION

09321-08006

$2.90

8

CUSHION

45149-31300

$3.56

9

BRACKET, SEAT SUPPORT

45220-13601

$80.52

10

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

11

CABLE, SEAT LOCK

45280-08A00

Unavailable

12

GUARD, SEAT LOCK

45289-26E00

Unavailable

13

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

14

LOCK SET,SEAT This part replaces 95700-12852.

95700-12853

$137.02

15

BOLT (6X14)

09139-06092

$2.83
