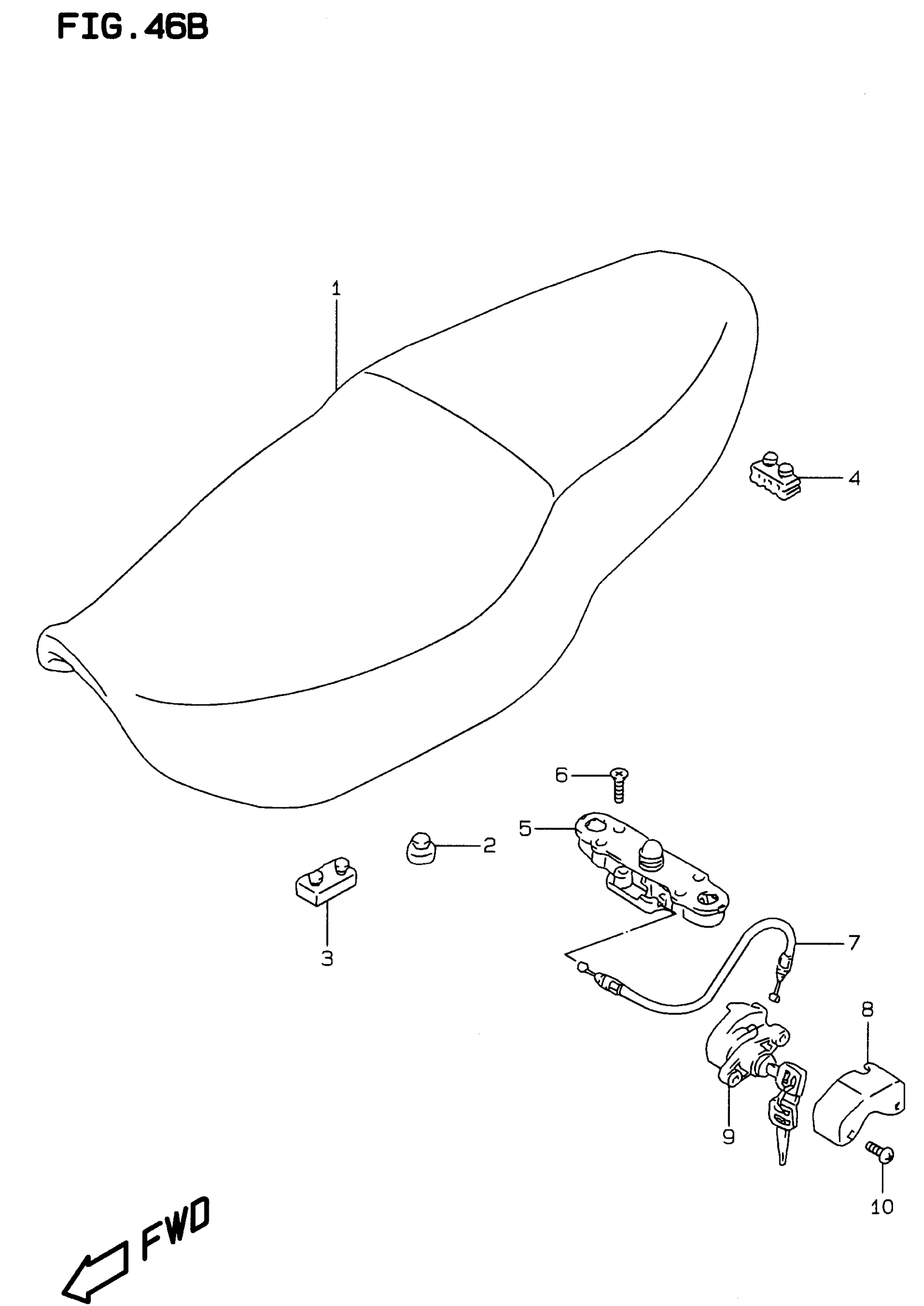

Suzuki GSF600S-BANDIT (1999) SEAT (MODEL V/W/X) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 45100-26E31-P21.

45100-26E32-P21

Unavailable

2

CUSHION

09321-10012

$2.92

3

CUSHION

09321-08006

$2.90

4

CUSHION

45149-31300

$3.56

5

BRACKET, SEAT SUPPORT

45220-13601

$80.52

6

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

7

CABLE, SEAT LOCK

45280-08A00

Unavailable

8

GUARD, SEAT LOCK

45289-26E00

Unavailable

9

LOCK SET,SEAT | MODEL V This part replaces 95700-12852.

95700-12853

$137.02

9

LOCK SET,SEAT H | MODEL W/X This part replaces 95700-10833.

95700-10835

$126.00

10

BOLT (6X14)

09139-06092

$2.83
