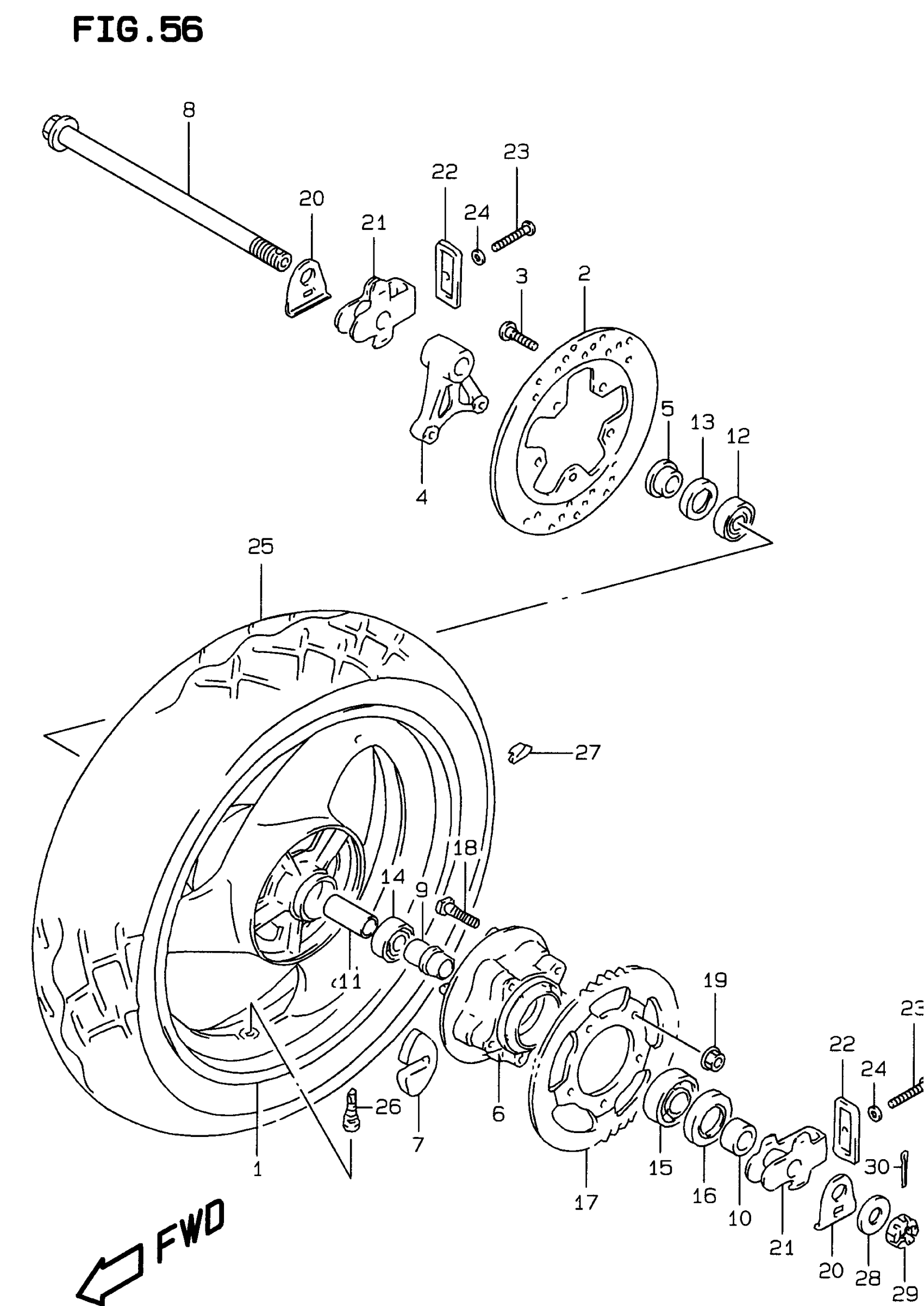

Suzuki GSF600S-BANDIT (1999) REAR WHEEL Diagram

WHEEL, REAR (17XMT4.50)

64111-21E01-35W

Unavailable

DISC, REAR BRAKE

69211-21E00

$388.57

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

BRACKET, REAR CALIPERS

69721-46E00

Unavailable

SPACER, RH

64741-17E00

$25.52

DRUM, SPROCKET

64611-33C00

Unavailable

SHOCK ABSORBER, DRUM

64651-32C00

$12.17

AXLE, REAR

64711-21E10

Unavailable

RETAINER,RR HUB BEARING

64733-27A00

$26.93

SPACER, LH

64751-26E00

$24.55

SPACER, BEARING (20.8X27.2X97)

09180-20104

Unavailable

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

BEARING, LH (20X47X14)

09262-20042

$23.28

BEARING, DRUM (25X62X17)

09262-25073

$25.92

SEAL,OIL (35X62X8)

09285-35001

$10.19

SPROCKET, REAR (NT:48) | E3,E33

64511-26E00

Unavailable

SPROCKET, REAR (NT:47) | E28

64511-20C11

$116.68

BOLT (10X47)

09119-10043

$4.26

NUT

08319-31107

$2.73

WASHER, CHAIN ADJUSTER

61445-26E00

$8.05

ADJUSTER, CHAIN

61410-21E00

Unavailable

PLATE, CHAIN ADJUSTER GUIDE This part replaces 61421-45D00.

61421-08J00

$28.45

BOLT (8X50)

09106-08119

$4.04

WASHER

09164-08015

$3.21

TIRE, REAR (150/70-17 69H)

65110-26E00

Unavailable

VALVE ASSY, WHEEL RIM TR412

43130-24A00

$8.85

BALANCER (10G)

55411-00A00

$1.49

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

WASHER

09160-18030

$2.56

NUT

08314-40187

$5.64

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
