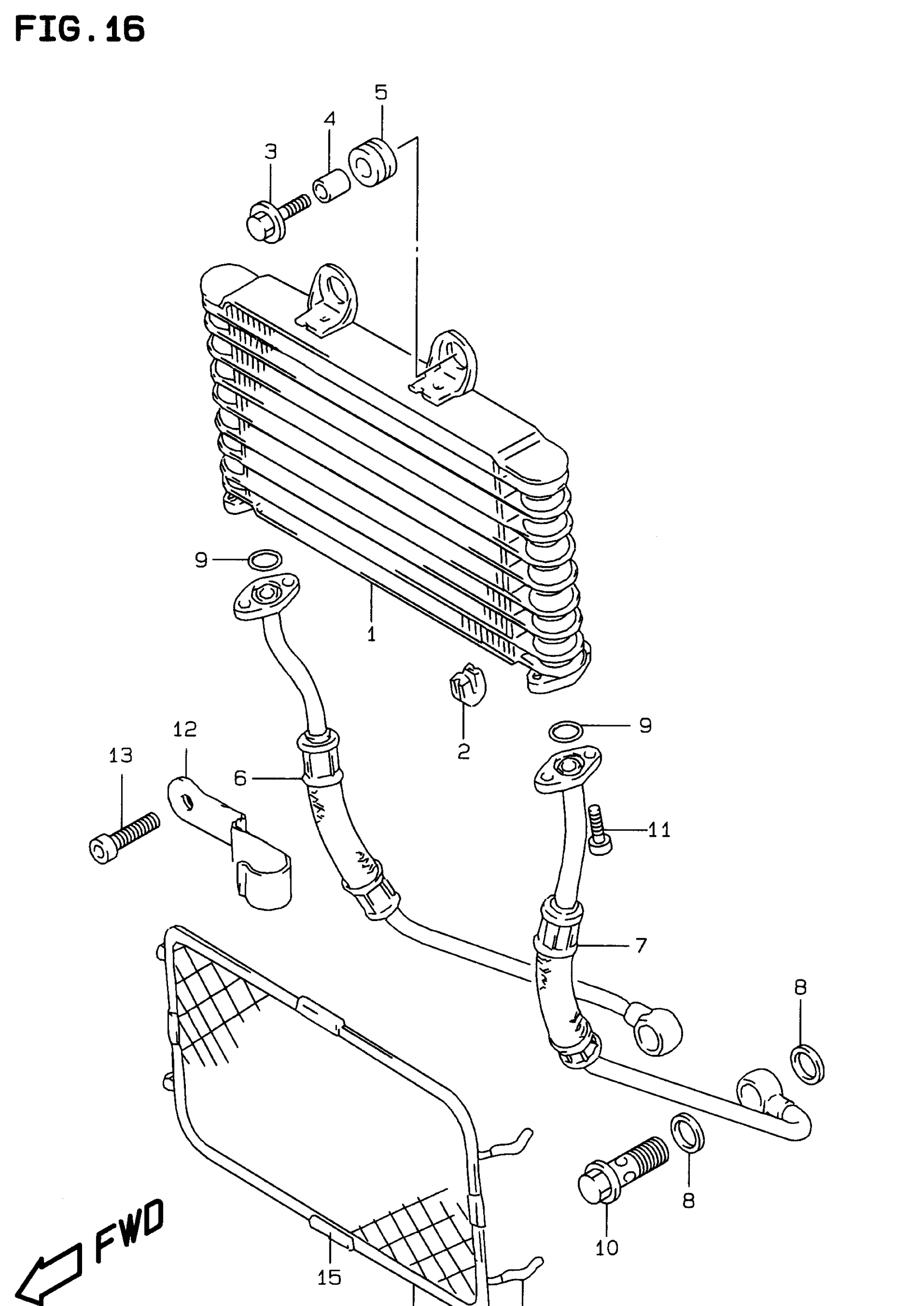

Suzuki GSF600S-BANDIT (1999) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-26E00

Unavailable

2

CUSHION, OIL COOLER NO.2

16628-27A00

$2.92

3

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

4

SPACER (6.5X10X10) | MODEL T This part replaces 09180-06030.

09180-06310

$1.91

4

SPACER, OIL COOLER | MODEL V/W/X

09180-06310

$1.91

5

CUSHION, OIL COOLER

09320-10015

$2.54

6

HOSE COMP,OIL C | MODEL T This part replaces 16460-26E00.

16460-26E40

Unavailable

6

HOSE COMP,OIL C | MODEL V/W/X This part replaces 16460-26E20.

16460-26E40

Unavailable

7

HOSE COMP,OIL C This part replaces 16470-26E00.

16470-26E50

$185.15

8

GASKET, OIL COOLER HOSE

09168-16002

$1.91

9

O RING, OIL COOLER HOSE | MODEL T

09280-12008

$2.76

9

O RING (D:2.4,ID:11.8) | MODEL V/W/X

09280-12012

$4.64

10

BOLT, OIL COOLER HOSE UNION

09360-16002

$14.34

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

12

CLAMP, OIL HOSE | MODEL V/W/X

16490-26E00

Unavailable

13

BOLT | MODEL V/W/X This part replaces 07130-06123.

07130-0612A

$2.50

14

GUARD, OIL COOLER | MODEL W/X; Includes Item(s) 15 - 16 This part replaces 16650-26E00.

16650-26E01

Unavailable

15

PROTECTOR | MODEL W/X

16654-27E00

Unavailable

16

.HOSE (3X5X600) | MODEL W/X,L:600?40 This part replaces 09352-30503-600.

09352-30504-600

$4.91
