Partiron

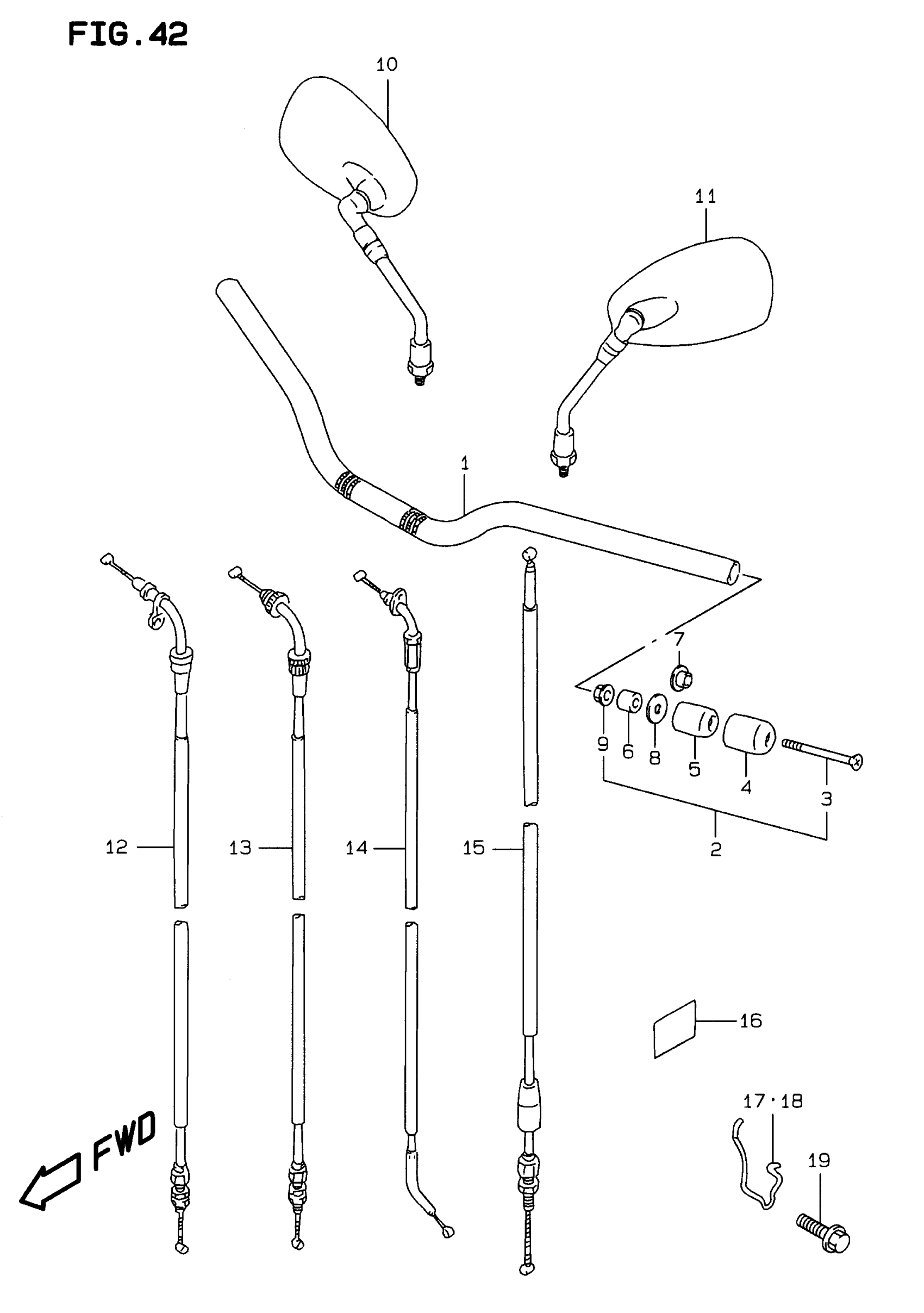

Suzuki GSF600S-BANDIT (1999) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-23E00

Unavailable

2

BALANCER SET, HANDLEBAR | ~F.NO.101995

56200-26850

Unavailable

2

BALANCER SET,HA | F.NO.101996~; Includes Item(s) 3 - 9 This part replaces 56200-26860.

56200-26861

$69.07

3

SCREW | ~F.NO.101995 This part replaces 02122-06603.

02122-0660B

$3.04

3

SCREW | F.NO.101996~ This part replaces 02122-06803.

02122-0680B

$3.72

4

CAP

56274-31300

Unavailable

5

BALANCER

56271-49400

Unavailable

6

SPACER

56275-34401

$4.02

7

NUT | F.NO.101996~ This part replaces 08316-10083.

08316-1008B

$2.66

8

EXPANDER

56272-44500

$4.42

9

NUT

09159-06024

$2.11

10

MIRROR ASSY,REA This part replaces 56500-10D40.

56500-10DA1

Unavailable

11

MIRROR ASSY,REA This part replaces 56600-10D40.

56600-10D41

Unavailable

12

CABLE ASSY, THROTTLE,NO.1

58300-26E00

Unavailable

13

CABLE ASSY, THROTTLE,NO.2

58300-26E10

Unavailable

14

CABLE,STARTER | MODEL T This part replaces 58410-26E00.

58410-26E01

Unavailable

14

CABLE, STARTER | MODEL V/W This part replaces 58410-26E20.

58410-26E21

Unavailable

14

CABLE, STARTER | MODEL X

58410-26E21

Unavailable

15

CABLE ASSY,CLUT This part replaces 58200-26E00.

58200-26E01

$24.17

16

PROTECTOR (30X40)

47261-48B00

Unavailable

17

GUIDE,CABLE,NO. | MODEL V/W/X This part replaces 58621-27E00.

58621-27E0V

Unavailable

18

GUIDE, CABLE NO.2 | MODEL V/W/X

58622-27E00

Unavailable

19

BOLT | MODEL V/W/X This part replaces 01550-06163.

01550-0616A

$1.97
