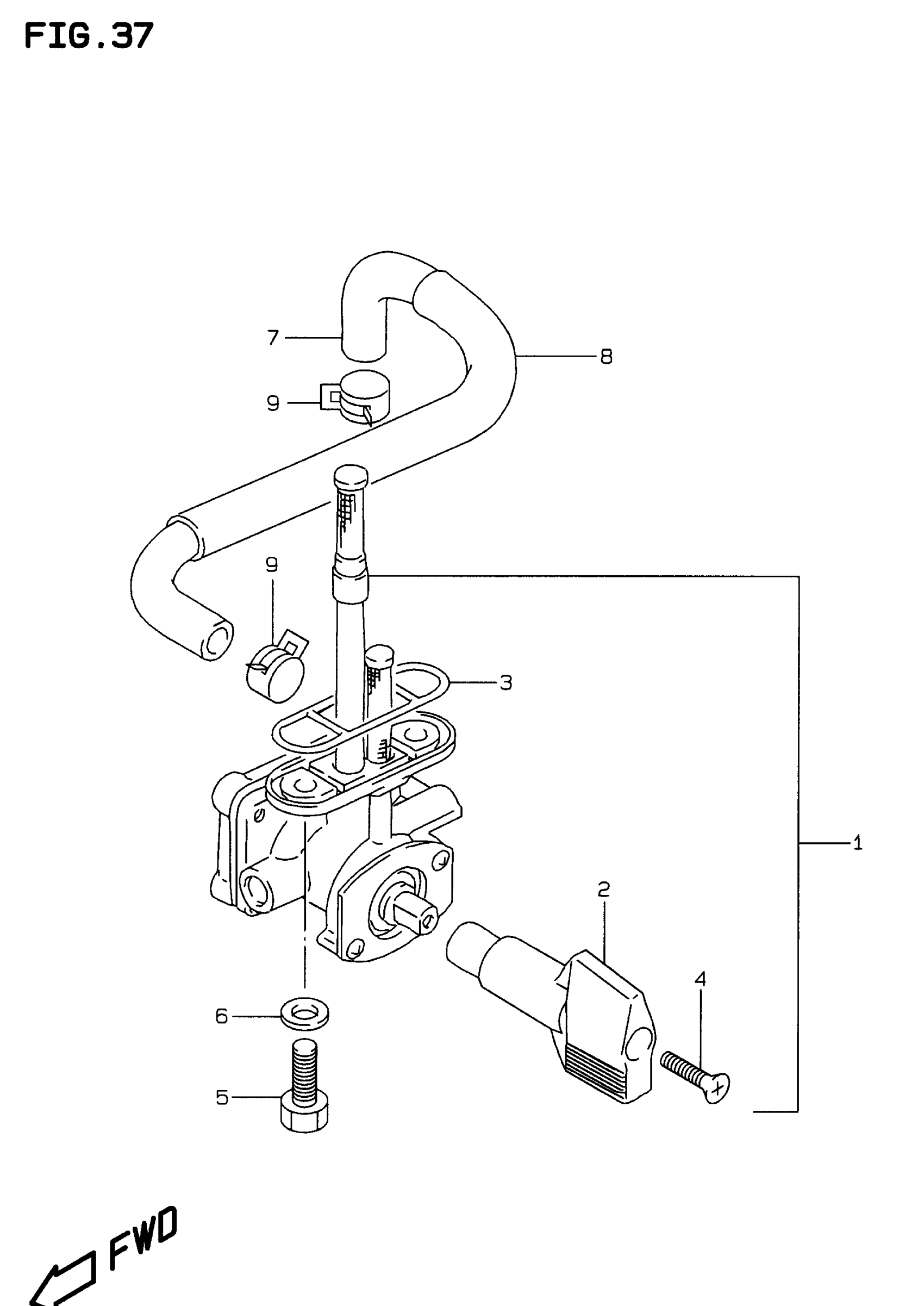

Suzuki GSF600S-BANDIT (1999) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 4 This part replaces 44300-26E00.

44300-26E02

$117.40

2

LEVER

44306-26E00

$25.35

3

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$5.35

4

SCREW This part replaces 02122-04203.

02122-0420A

$2.23

5

SCREW

09128-06057

$1.65

6

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

7

HOSE,6.5X11.5X6 | MODEL T This part replaces 09354-70123-600.

44421-12FR0

$12.33

7

HOSE,6.5X11.5X6 | MODEL V/W/X This part replaces 09355-70125-600.

44421-12FR0

$12.33

8

PROTECTOR (L:600?230) | MODEL TMODEL V/W/X

09351-14152-600

$10.62

9

CLIP This part replaces 09401-11407.

09401-11415

$2.23
