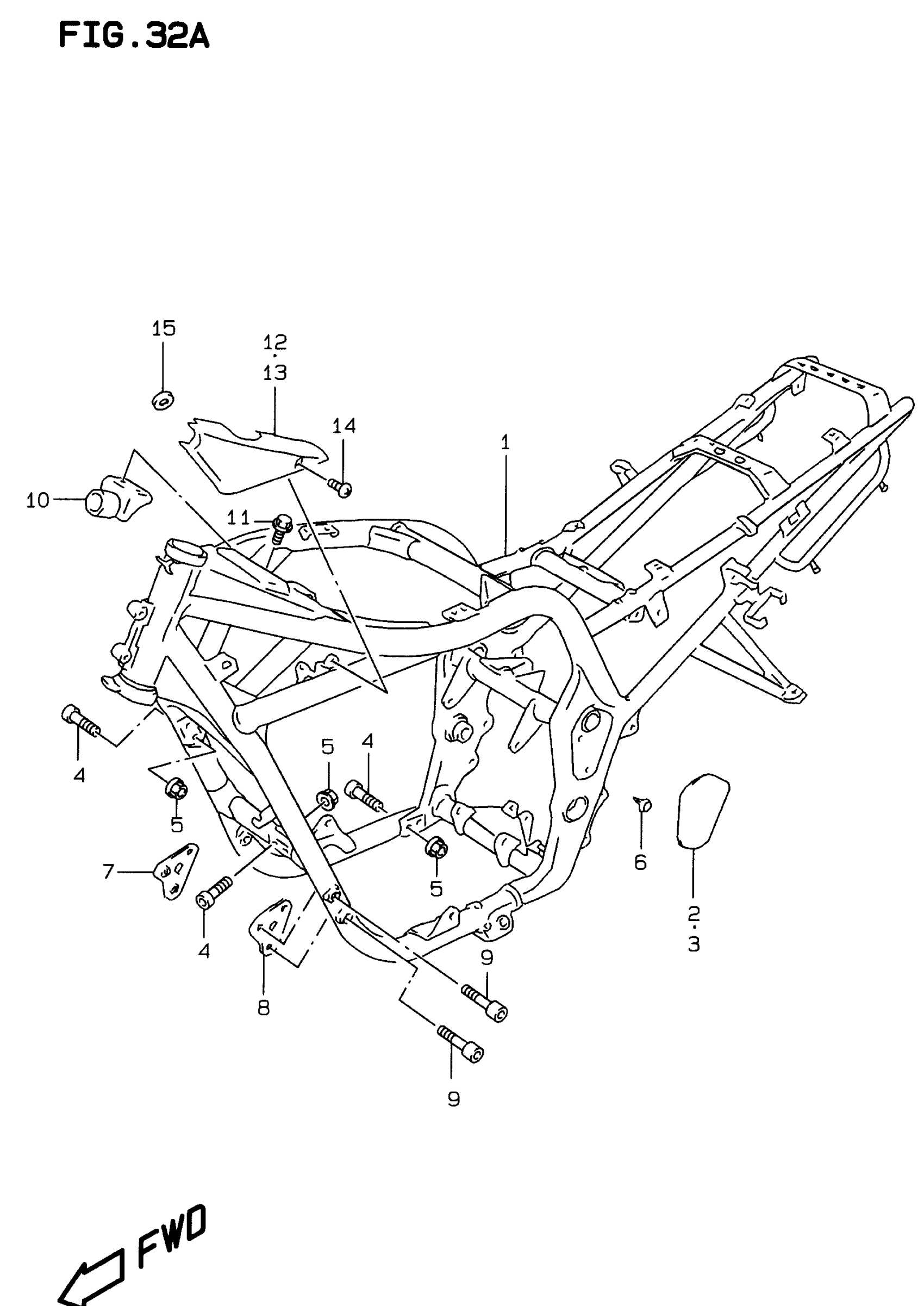

Suzuki GSF600S-BANDIT (1999) FRAME (MODEL W/X) Diagram

#

Description
Price

1

FRAME (GREEN) | MODEL W

41100-26E51-Y0V

Unavailable

1

FRAME (ORANGE) | MODEL W

41100-26E51-Y3H

Unavailable

1

FRAME (ORANGE) | MODEL X

41100-26E51-Y0W

Unavailable

1

FRAME (BLUE) | MODEL X

41100-26E51-Y7H

Unavailable

2

COVER, FRAME BODY RH

41639-26E00

$20.77

3

COVER, FRAME BODY LH

41649-26E00

$20.77

4

BOLT

09106-10019

$3.50

5

NUT This part replaces 08319-31103.

08319-3110A

$2.73

6

CLIP

09409-07329

$3.15

7

PLATE, MOUNT RH (GREEN) | MODEL W

41910-26E10-Y0V

Unavailable

7

PLATE, MOUNT RH (ORANGE) | MODEL W

41910-26E10-Y3H

Unavailable

7

PLATE, MOUNT RH (ORANGE) | MODEL X

41910-26E10-Y0W

Unavailable

7

PLATE, MOUNT RH (BLUE) | MODEL X

41910-26E10-Y7H

Unavailable

8

PLATE, MOUNT LH (GREEN) | MODEL W

41920-26E00-Y0V

Unavailable

8

PLATE, MOUNT LH (ORANGE) | MODEL W

41920-26E00-Y3H

Unavailable

8

PLATE, MOUNT LH (ORANGE) | MODEL X

41920-26E00-Y0W

Unavailable

8

PLATE, MOUNT LH (BLUE) | MODEL X

41920-26E00-Y7H

Unavailable

9

BOLT This part replaces 07130-08503.

07130-0850A

$4.17

10

DAMPER, FRAME

42550-26E00

Unavailable

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

12

COVER, FRAME HEAD RH (BLACK)

47511-26E10-291

$37.27

13

COVER, FRAME HEAD LH (BLACK)

47521-26E10-291

Unavailable

14

SCREW

09139-05021

$1.72

15

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93
