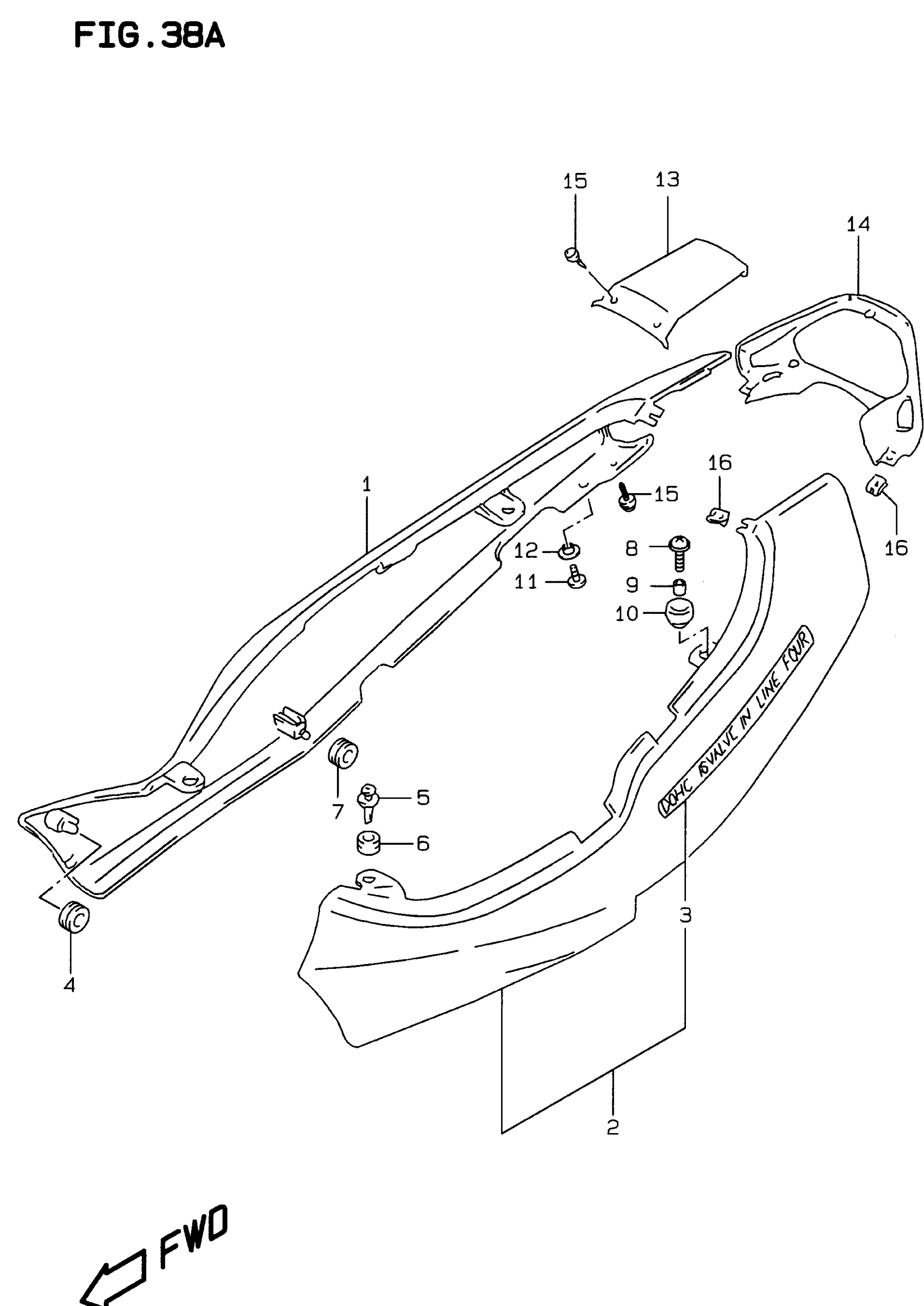

Suzuki GSF600S-BANDIT (1999) FRAME COVER (MODEL W/X) Diagram

#

Description
Price

1

COVER, FRAME RH (GREEN) | MODEL W

47110-26E30-Y0V

Unavailable

1

COVER, FRAME RH (ORANGE) | MODEL W

47110-26E30-Y3H

Unavailable

1

COVER, FRAME RH (ORANGE) | MODEL X

47110-26E30-Y0W

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL X

47110-26E30-Y7H

Unavailable

2

COVER, FRAME LH (BLACK) | MODEL W

47210-26E30-Y0V

Unavailable

2

COVER, FRAME LH (ORANGE) | MODEL W

47210-26E30-Y3H

Unavailable

2

COVER, FRAME LH (ORANGE) | MODEL X

47210-26E30-Y0W

Unavailable

2

COVER, FRAME LH (BLUE) | MODEL X; Includes Item(s) 3 - 3

47210-26E30-Y7H

Unavailable

3

EMBLEM (SILVER) | FOR Y0V,Y0W,Y7H

68131-26E30-13L

Unavailable

3

EMBLEM (SILVER) | FOR Y3H

68131-26E30-0FP

Unavailable

4

CUSHION,FRAME C This part replaces 47161-21E00.

47161-21E01

$10.17

5

CLIP, FRONT UPPER

09409-10306

$3.04

6

CUSHION

09320-10501

$6.23

7

CUSHION, CENTER

09320-08018

$3.04

8

SCREW, REAR UPPER

09136-06105

$1.97

9

SPACER

09180-06286

$2.50

10

CUSHION

09320-10045

$3.76

11

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

12

WASHER

09161-06021

$2.83

13

COVER, FRAME CENTER (GREEN) | MODEL W

47311-26E00-Y0V

Unavailable

13

COVER, FRAME CENTER (ORANGE) | MODEL W

47311-26E00-Y3H

Unavailable

13

COVER, FRAME CENTER (ORANGE) | MODEL X

47311-26E00-Y0W

Unavailable

13

COVER,FRAME CTR | MODEL X This part replaces 47311-26E00-Y7H.

47311-26E00

Unavailable

14

COVER, FRAME REAR (BLACK)

47331-26E00-291

Unavailable

15

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

16

NUT

09148-05020

$2.18
