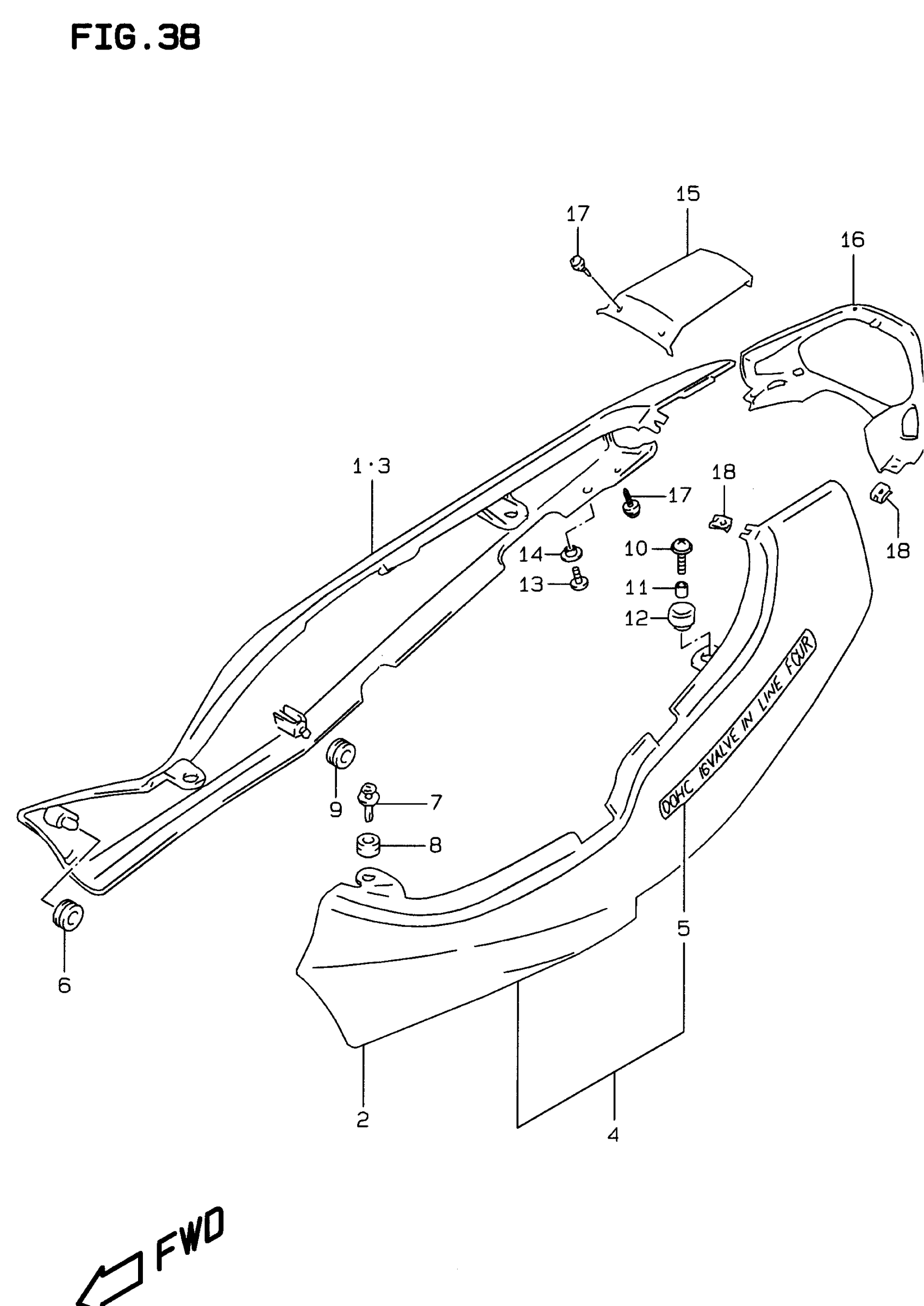

Suzuki GSF600S-BANDIT (1999) FRAME COVER (MODEL T/V) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 47111-26E10-28V.

47111-26E13-28V

Unavailable

1

COVER, FRAME R | MODEL T This part replaces 47111-26E10-0WP.

47111-26E13-0WP

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 47211-26E10-28V.

47211-26E13-28V

Unavailable

2

COVER,FRAME,L | MODEL T This part replaces 47211-26E10-0WP.

47211-26E13-0WP

Unavailable

3

COVER, FRAME RH (BLACK) | MODEL V

47110-26E30-33J

Unavailable

3

COVER, FRAME RH (RED) | MODEL V

47110-26E30-28V

Unavailable

4

COVER, FRAME LH (BLACK) | MODEL V This part replaces 47210-26E30-33J.

47210-26E50-33J

Unavailable

4

COVER, FRAME LH (RED) | MODEL V; Includes Item(s) 5 - 5

47210-26E30-28V

Unavailable

5

EMBLEM (GOLD) | MODEL V FOR 33J

68131-26E30-24G

Unavailable

5

EMBLEM (SILVER) | MODEL V FOR 28V

68131-26E30-0FP

Unavailable

6

CUSHION,FRAME C This part replaces 47161-21E00.

47161-21E01

$10.17

7

CLIP, FRONT UPPER

09409-10306

$3.04

8

CUSHION This part replaces 09320-10043.

09320-10501

$6.23

9

CUSHION, CENTER

09320-08018

$3.04

10

SCREW, REAR UPPER

09136-06105

$1.97

11

SPACER

09180-06286

$2.50

12

CUSHION

09320-10045

$3.76

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

14

WASHER

09161-06021

$2.83

15

COVER, FRAME CENTER (RED)

47311-26E00-28V

Unavailable

15

COVER,FRAME CTR | MODEL T This part replaces 47311-26E00-0WP.

47311-26E00

Unavailable

15

COVER, FRAME CENTER (BLACK) | MODEL V

47311-26E00-33J

Unavailable

16

COVER, FRAME REAR (BLACK)

47331-26E00-291

Unavailable

17

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

18

NUT

09148-05020

$2.18
