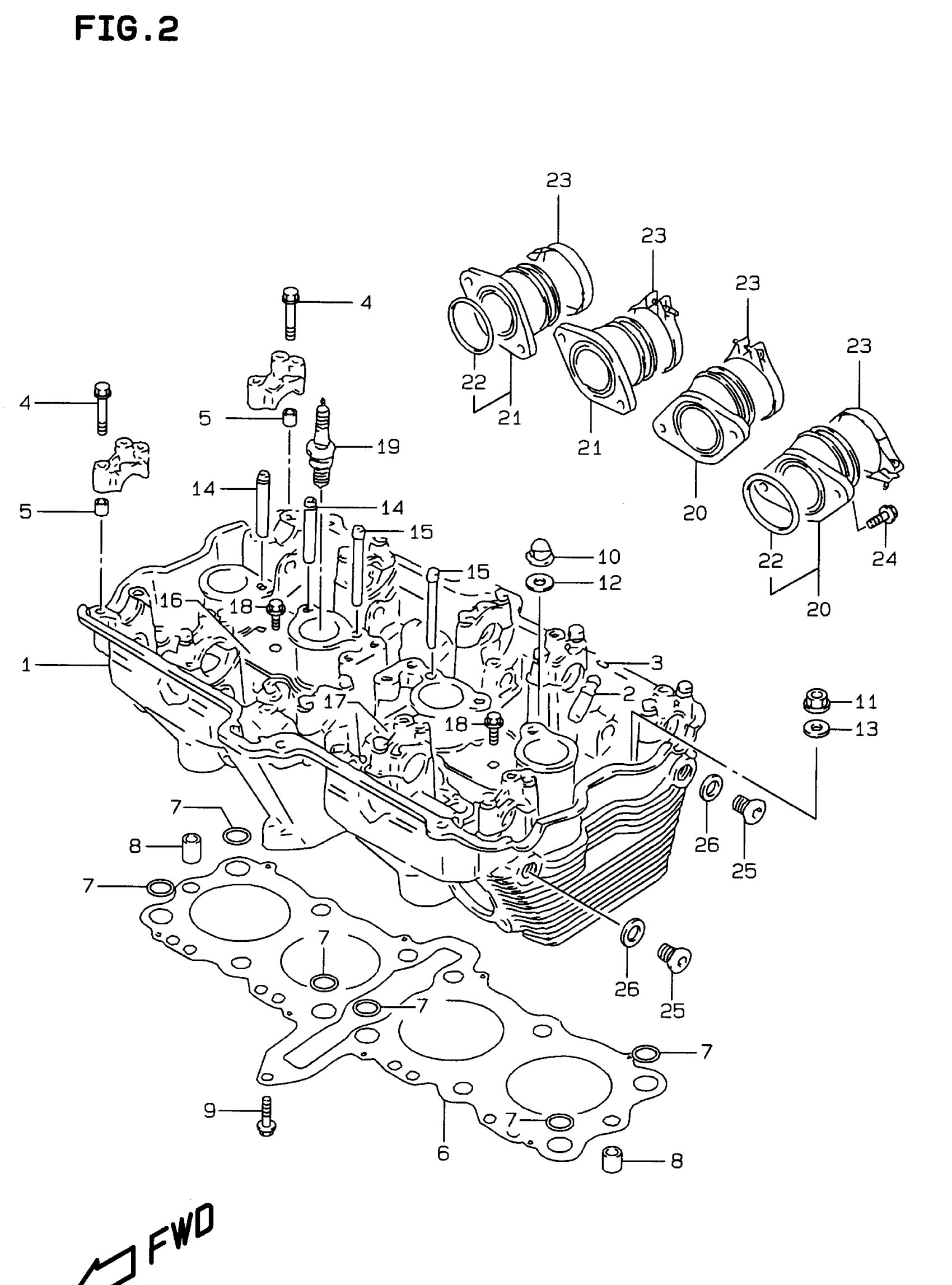

Suzuki GSF600S-BANDIT (1999) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-26E00

Unavailable

1

HEAD ASSY, CYLINDER | E33; Includes Item(s) 2 - 5

11100-26E10

Unavailable

2

GUIDE, VALVE (OS:0.3) This part replaces 11115-27A70.

11116-06B70

$40.73

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (6X39)

09103-06026

$1.98

5

PIN

09206-08001

$1.78

6

GASKET, CYLINDER HEAD

11141-19C03

$73.22

7

O RING (D:2.6,ID:12.1)

09280-12013

$5.57

8

PIN

04211-11189

$1.78

9

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

10

NUT

09159-10054

$7.82

11

NUT This part replaces 08316-10103.

08316-1010B

$2.66

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

14

PIPE, OIL NO.1,2

11131-27A00

$6.38

15

PIPE, OIL NO.3

11133-27A00

Unavailable

16

PLATE, OIL PIPE RH

11135-27A02

Unavailable

17

PLATE, OIL PIPE LH

11136-27A02

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

19

SPARK PLUG (NGK,CR9EK)

09482-00410

$11.59

19

SPARK PLUG (DENSO,U27ESR-N) This part replaces 09482-00411.

09482-00459

$6.09

19

SPARK PLUG (NGK,CR8EK) | OPT

09482-00412

$10.62

19

SPARK PLUG (DENSO,U24ETR) | OPT

09482-00413

$13.17

19

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

$12.50

19

SPARK PLUG (DENSO,U31ETR) | OPT

09482-00463

$15.42

20

PIPE ASSY,INTAK This part replaces 13101-26E01.

13101-26E02

$35.31

21

PIPE ASSY,INTAK | Includes Item(s) 22 This part replaces 13103-26E01.

13103-26E02

$35.31

22

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

23

CLAMP

09402-48208

$4.64

24

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

$2.45

25

PLUG, CYLINDER HEAD

09248-14010

$5.50

26

GASKET

09168-14002

$2.26
