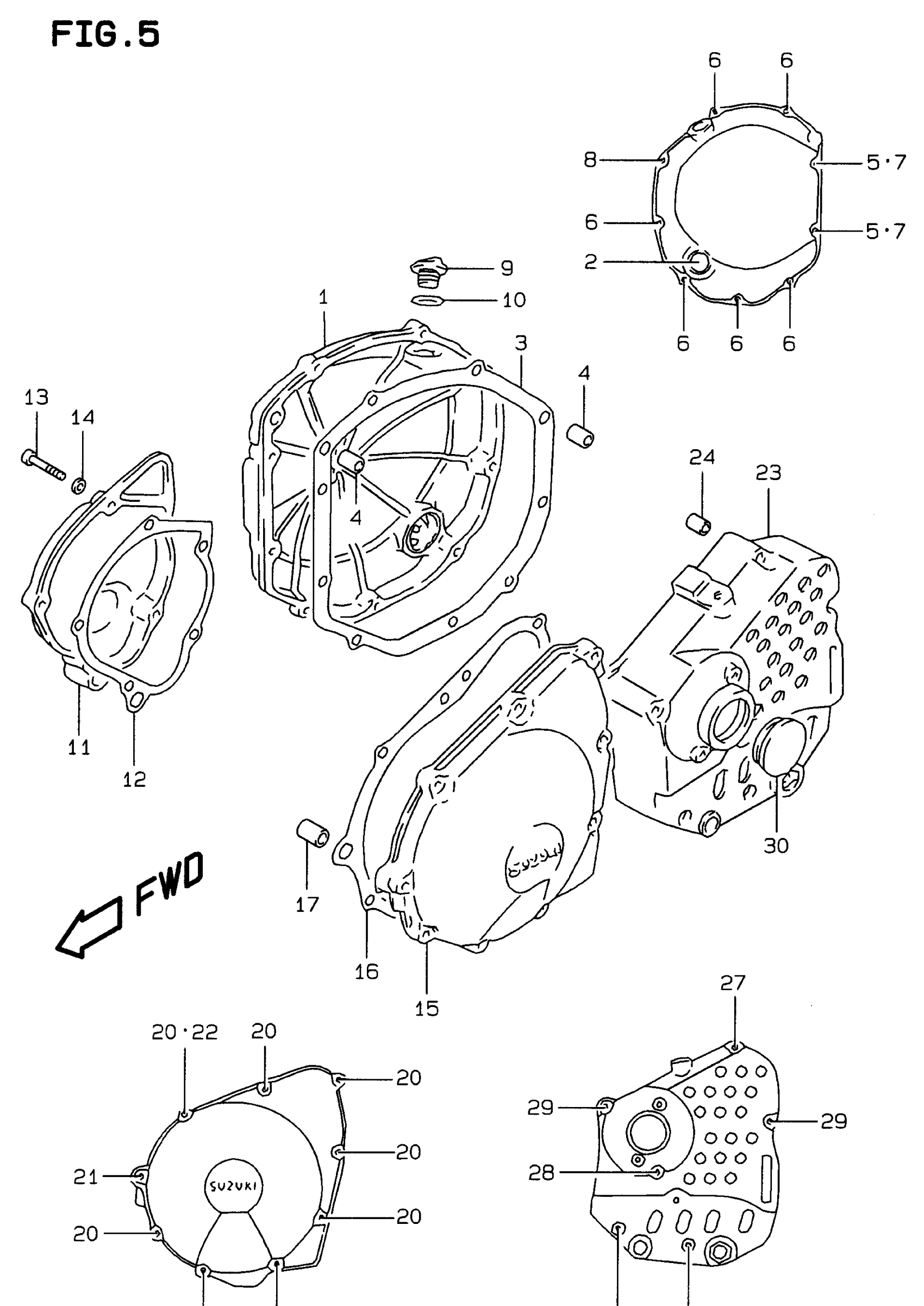

Suzuki GSF600S-BANDIT (1999) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-26E00

$290.07

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-27A20

$14.20

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

7

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

8

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

9

.PLUG | MODEL T This part replaces 09259-20015.

09259-20008-XC0

$7.50

9

.PLUG | MODEL V/W/X This part replaces 09259-20008.

09259-20008-XC0

$7.50

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, SIGNAL GENERATOR This part replaces 11381-26D10.

11381-26D11

$56.00

12

GASKET

11491-27A30

$8.40

13

BOLT (6X23)

09106-06082

$2.62

14

GASKET

09168-06024

$2.20

15

COVER, STARTER GEAR | MODEL T/V/W This part replaces 11351-26E00.

11351-26E01

$177.94

15

COVER, STARTER GEAR | MODEL X

11351-26E01

$177.94

16

GASKET, GEAR COVER

11483-27A20

$11.19

17

PIN (11X20) | MODEL T This part replaces 09206-11005.

09206-11017

$6.30

17

PIN | MODEL V/W/X

09206-11017

$6.30

18

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

19

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$3.05

20

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

21

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

22

GASKET

09168-06024

$2.20

23

COVER, ENGINE SPROCKET | MODEL T This part replaces 11361-26E00.

11361-26E01

Unavailable

23

COVER, ENGINE SPROCKET | MODEL V/W/X

11361-26E01

Unavailable

24

PIN

04211-09129

$1.65

25

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

26

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

27

BOLT This part replaces 07130-06503.

07130-0650B

$4.10

28

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

29

BOLT This part replaces 07130-06703.

07130-0670B

$3.89

30

CAP, CLUTCH RELEASE

09250-30003

$3.89
