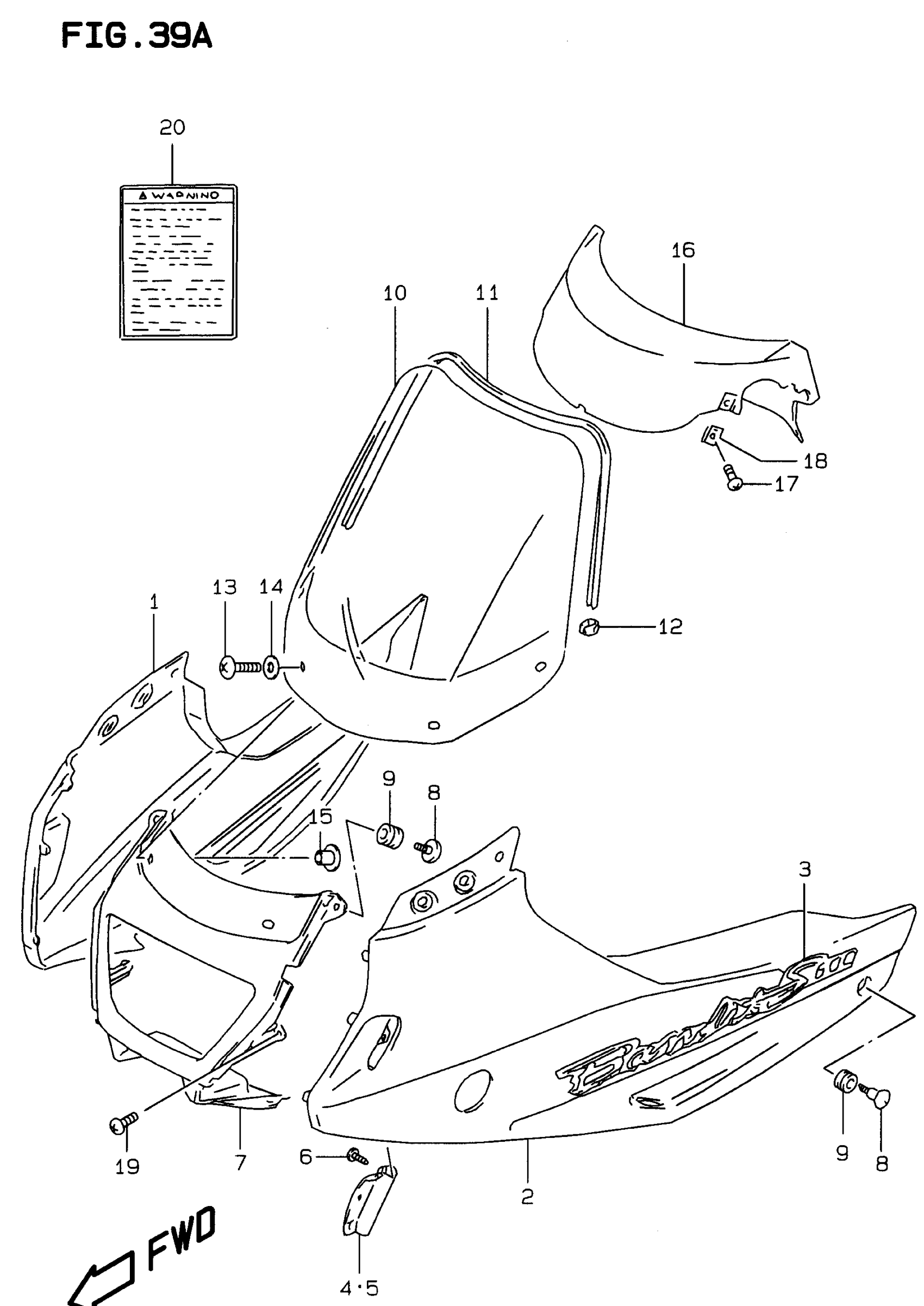

Suzuki GSF600S-BANDIT (1999) COWLING BODY (MODEL W/X) Diagram

#

Description
Price

1

COWLING ASSY, SIDE RH (GREEN) | MODEL W

94401-26E00-Y0V

Unavailable

1

COWLING ASSY, SIDE RH (ORANGE) | MODEL W

94401-26E10-Y3H

Unavailable

1

COWLING ASSY, SIDE RH (ORANGE) | MODEL X

94401-26E10-Y0W

Unavailable

1

COWLING ASSY, SIDE RH (BLUE) | MODEL X

94401-26E00-Y7H

Unavailable

2

COWLING ASSY, SIDE LH (GREEN) | MODEL W

94402-26E00-Y0V

Unavailable

2

COWLING ASSY, SIDE LH (ORANGE) | MODEL W

94402-26E10-Y3H

Unavailable

2

COWLING ASSY, SIDE LH (ORANGE) | MODEL X

94402-26E10-Y0W

Unavailable

2

COWLING ASSY, SIDE LH (BLUE) | MODEL X; Includes Item(s) 3 - 6

94402-26E00-Y7H

Unavailable

3

EMBLEM, SIDE | FOR Y0V

68681-26E00-G8A

Unavailable

3

EMBLEM, SIDE | FOR Y3H

68681-26E00-F2R

Unavailable

3

EMBLEM, SIDE | FOR Y0W

68681-26E00-87N

Unavailable

3

EMBLEM, SIDE | FOR Y7L

68681-26E00-L9E

Unavailable

4

COVER, COWL INNER RH

94413-26E00

Unavailable

5

COVER, COWL INNER LH

94423-26E00

Unavailable

6

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

7

COWLING ASSY, CENTER (GREEN) | MODEL W

94403-26E00-Y0V

Unavailable

7

COWLING ASSY, CENTER (ORANGE) | MODEL W

94403-26E10-Y3H

Unavailable

7

COWLING ASSY, CENTER (ORANGE) | MODEL X

94403-26E10-Y0W

Unavailable

7

COWLING ASSY, CENTER (BLUE) | MODEL X

94403-26E00-Y7H

Unavailable

8

SCREW This part replaces 09139-06087.

09139-06126

$4.04

9

CUSHION

09320-09016

$1.97

10

WINDSCREEN SET | Includes Item(s) 11 - 12

94610-26E01

Unavailable

11

MOLDING

94631-33C01

$18.02

12

CLIP

94637-21E00

$8.18

13

SCREW

09139-05025

$2.05

14

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

15

NUT

09159-05019

$7.14

16

PANEL, INNER

94640-26E01

Unavailable

17

SCREW This part replaces 03242-05123.

03241-0512A

$1.49

18

NUT

09148-05038

$1.97

19

SCREW This part replaces 02142-15163.

02142-1516A

$1.84

20

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

20

LABEL, SCREEN | E28 This part replaces 68612-48B10.

68922-14F30

Unavailable
