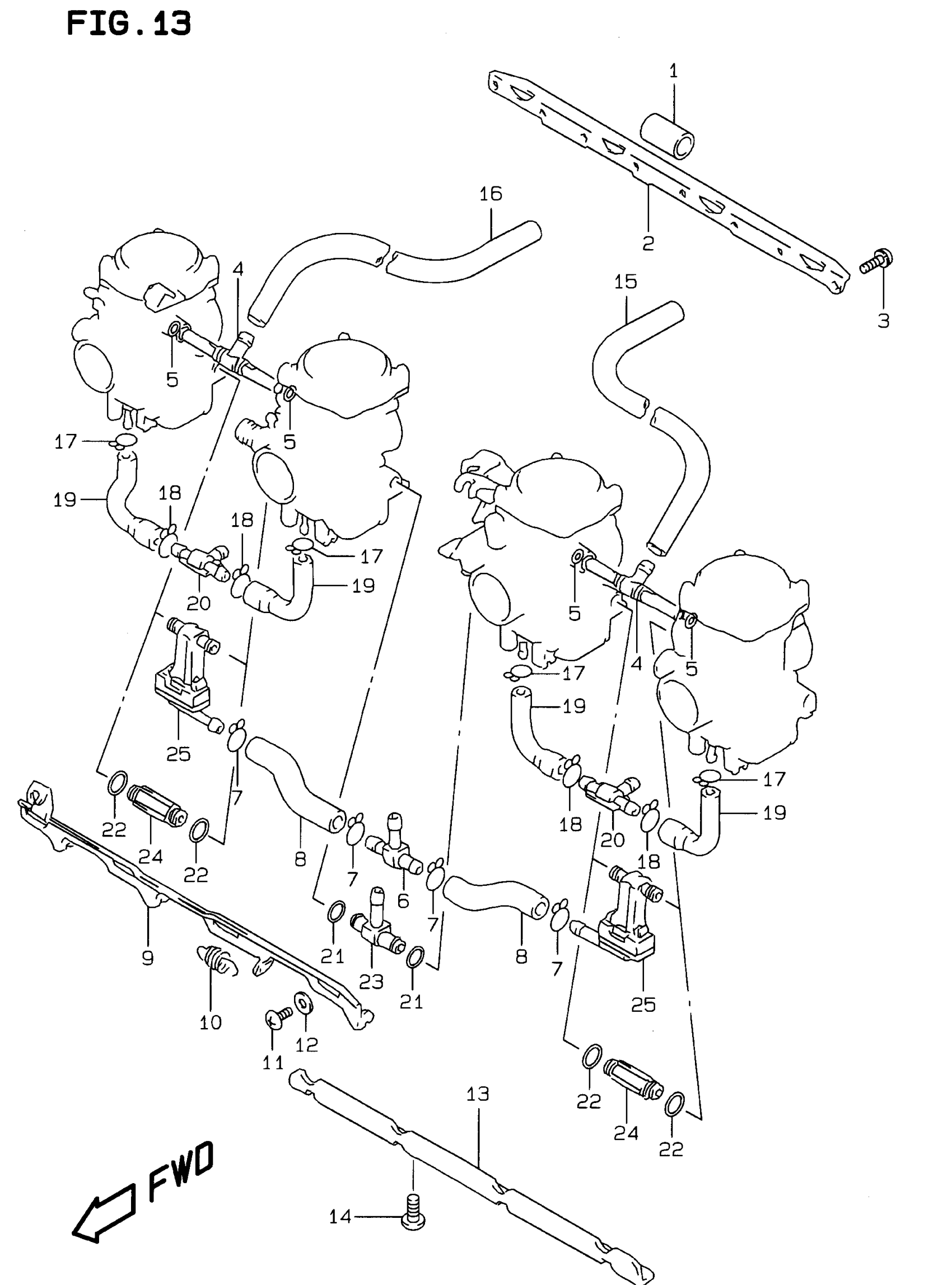

Suzuki GSF600S-BANDIT (1999) CARBURETOR FITTINGS Diagram

#

Description
Price

1

PIPE

13684-26E00

Unavailable

2

STAY, PLATE

13628-26E10

Unavailable

3

SCREW

13602-26E50

$3.62

4

JOINT

13685-26E20

$16.48

5

O RING This part replaces 13673-26E00.

13673-26E01

$4.25

6

JOINT | E3,E33MODEL V/W/X E28

13685-26E30

Unavailable

7

CLIP | E3,E33MODEL V/W/X E28

13671-26E10

Unavailable

8

HOSE | E3,E33MODEL V/W/X E28

13683-26E00

Unavailable

9

STARTER LEVER

13413-26E00

Unavailable

10

SPRING

13417-26E20

Unavailable

11

SCREW

13602-26E60

$3.70

12

WASHER

13418-26E10

$3.15

13

STAY, PLATE

13628-26E00

Unavailable

14

SCREW

13602-26E40

Unavailable

15

HOSE(7X11X600) | L:600?480 This part replaces 09352-70113-600.

09352-70119-600

$10.40

16

HOSE(7X11X600) | L:600?450 This part replaces 09352-70113-600.

09352-70119-600

$10.40

17

CLIP | E33

13671-26E20

Unavailable

18

CLIP | E33

13671-26E30

Unavailable

19

HOSE | E33

13683-26E10

Unavailable

20

JOINT | E33

13685-26E50

Unavailable

21

O RING | MODEL T E28 This part replaces 13673-26E00.

13673-26E01

$4.25

22

O RING | MODEL T E28

13673-26E10

$4.10

23

JOINT | MODEL T E28

13685-26E00

Unavailable

24

JOINT | MODEL T E28

13685-26E10

Unavailable

25

JOINT SET | E3,E33MODEL V/W/X E28

13685-26E40

Unavailable
